Service guide | Disassembling and assembling PAH 10-12.5, PAHT 10-12.5 and PAHT G 10-12.5
8

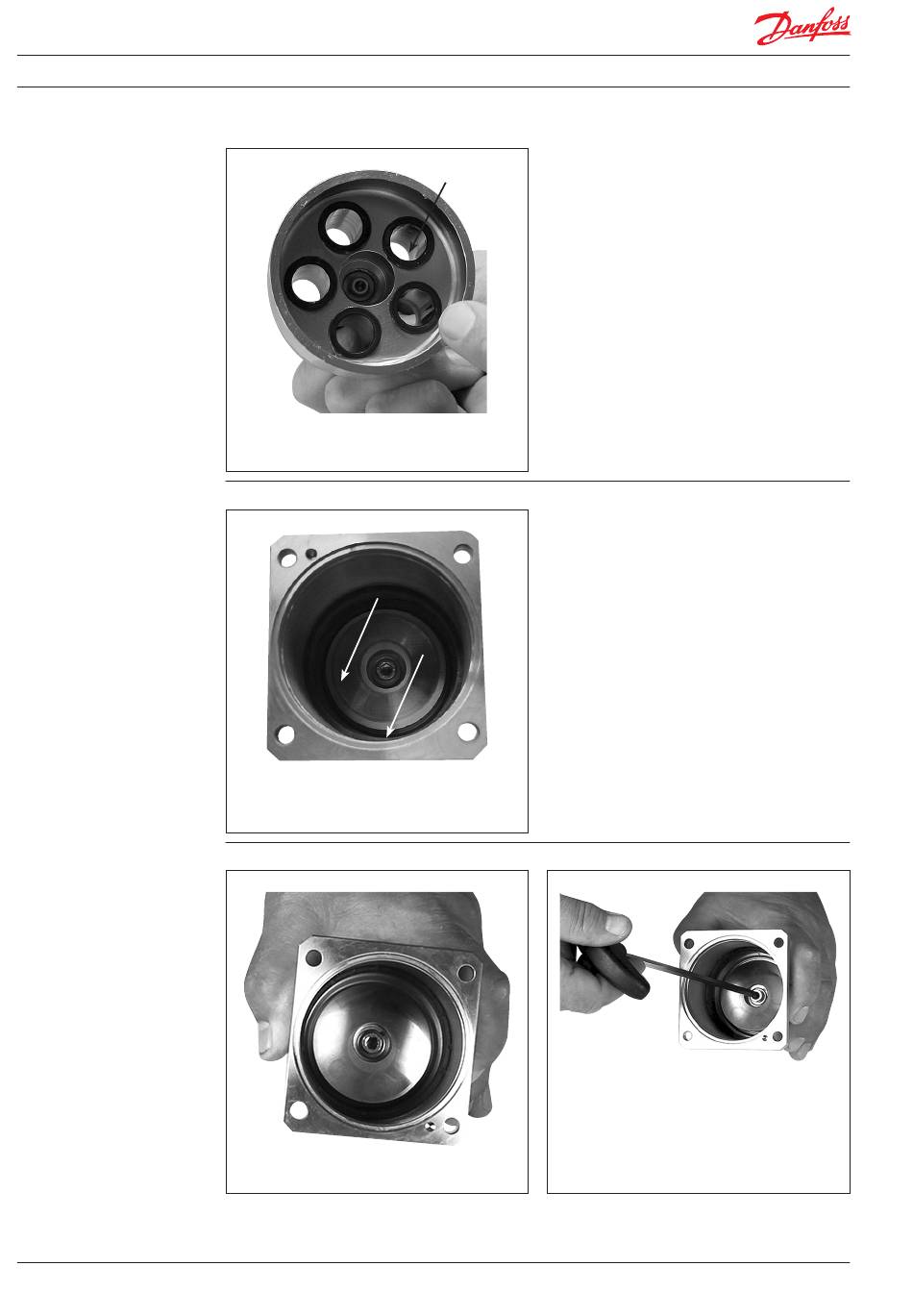

2.3. Cylinder barrel

1. Check the outer bearing surface for large
wear grooves (not critical).

2.4. Housing

1
1. Check that the swash plate surface is
smooth and without any big scratches
(depth more than 0.1 mm).

2.5. Swash plate

1. Mounted swash plate:
180R9095 | 521B0986 0 | DKCFN.PI.010.NA4.02| 06.2017
2. Check that the bushings are free from
seizure and large scratches.
3. Ensure that the pistons can move freely in
the bushings.
2. Check the bearing (the black part) for
large wear grooves (not critical).
2
2. Unscrew center bolt from the swash plate.
