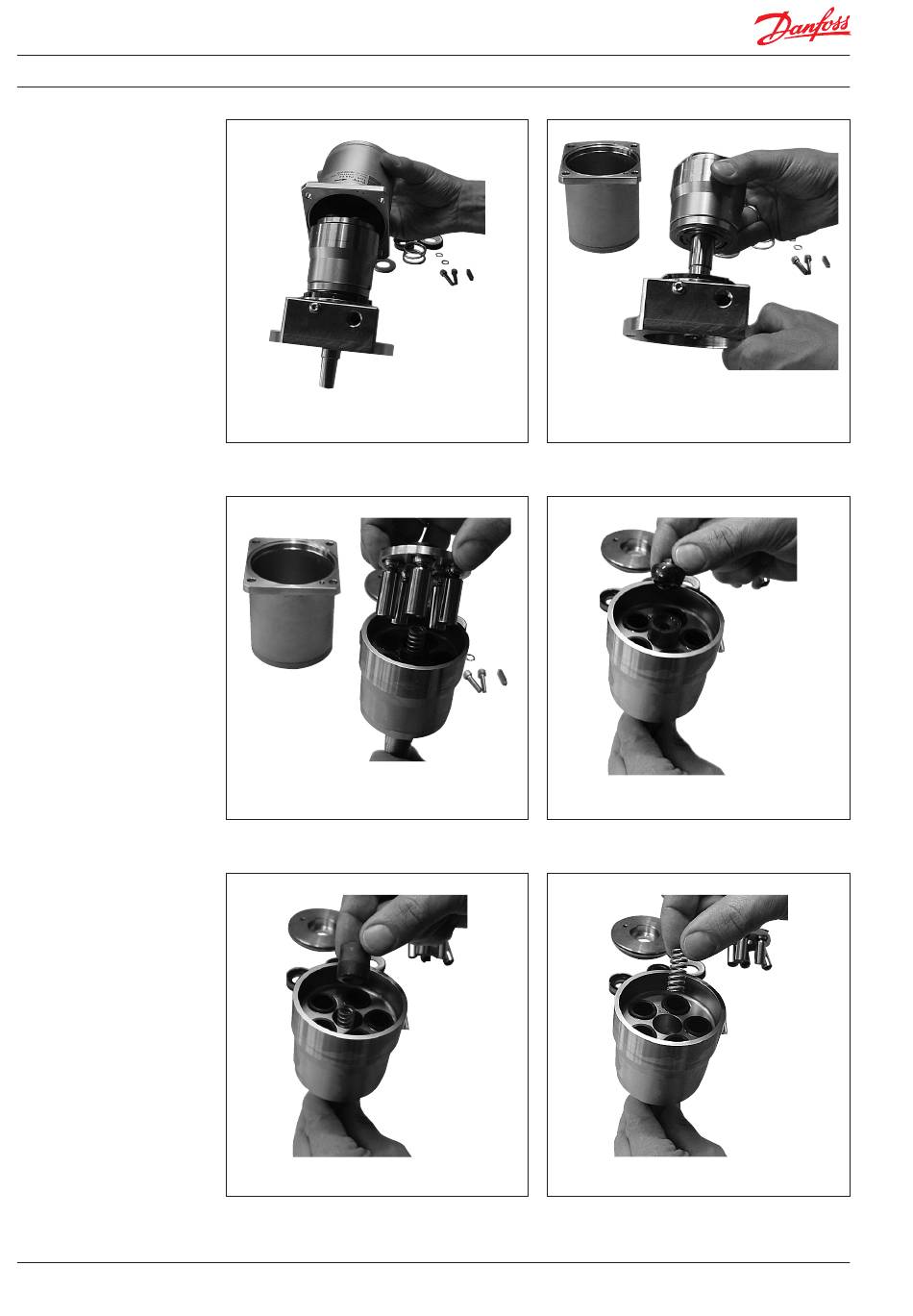

Service guide | Disassembling and assembling PAH 10-12.5, PAHT 10-12.5 and PAHT G 10-12.5

7. Remove the housing.

9. Remove the pistons and the retainer plate

from the cylinder barrel.

11. Remove the spring guide.

180R9095 | 521B0986 0 | DKCFN.PI.010.NA4.02| 06.2017

8. Remove the cylinder barrel.

10. Remove the retainer guide.

12. Remove the spring.
