Danfoss PAH Series Disassembling And Assembling Instructions page 11

Service guide | Disassembling and assembling PAH 10-12.5, PAHT 10-12.5 and PAHT G 10-12.5

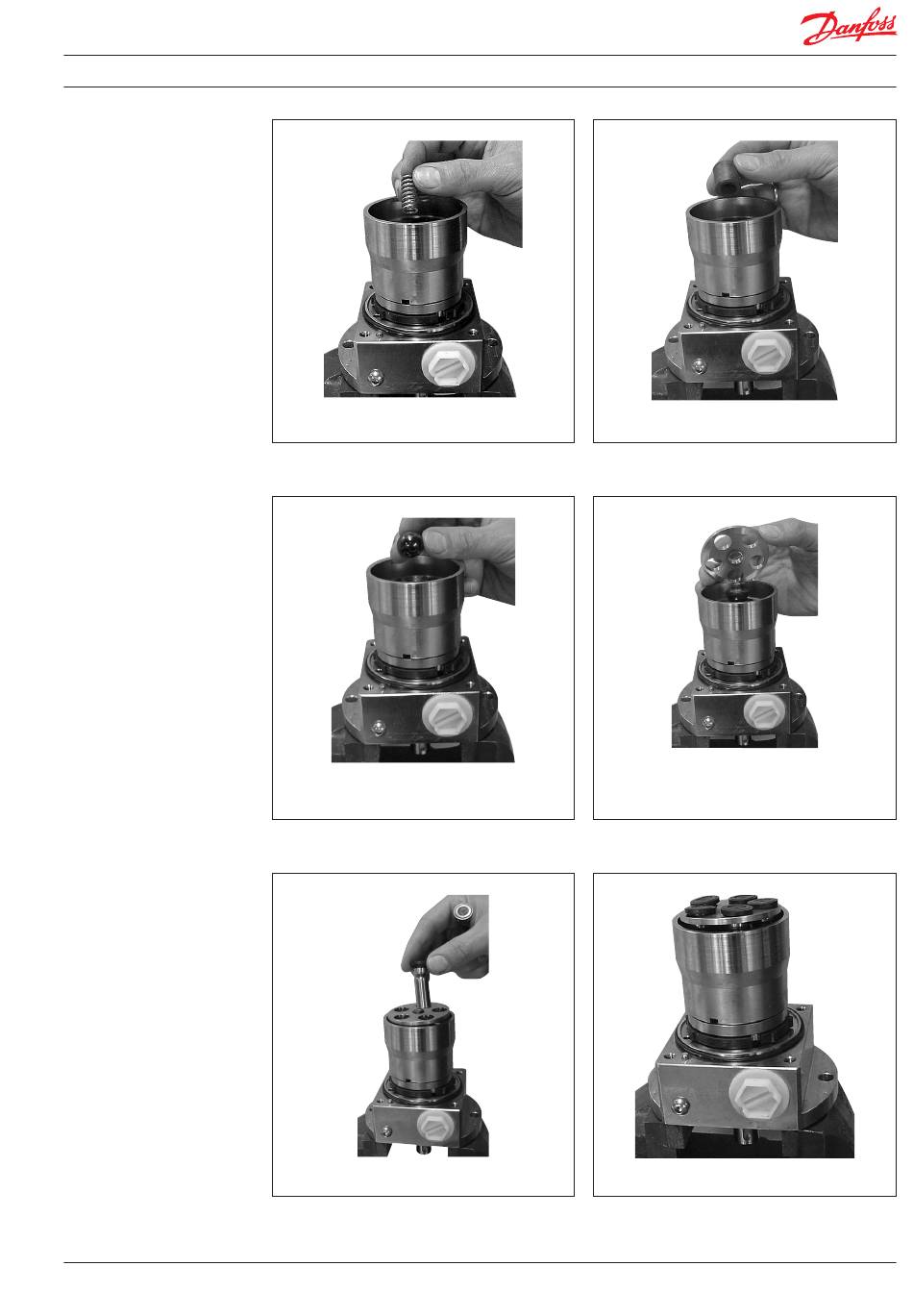

9. Mount the spring in the centre hole.
11. Mount the retainer guide on the spring
guide.
13. Insert the pistons.
180R9095 | 521B0986 0 | DKCFN.PI.010.NA4.02| 06.2017
10. Mount the spring guide.
12. Mount the retainer plate on the retainer
guide. Ensure that the bended surface
points downwards.
14. All pistons inserted.
11
