Safety instructions - continued
•  Only qualified specialist personnel may 
install, start up, and operate the router. The 
national safety and accident prevention 
regulations must be observed.
•  The router is built to the latest technological 
standards and recognized safety standards 
(see Declaration of Conformity).
•  The router is only intended for operation
in the control cabinet and with SELV accor-
ding to IEC 60950/EN 60950/VDE 0805.
6

Router installation

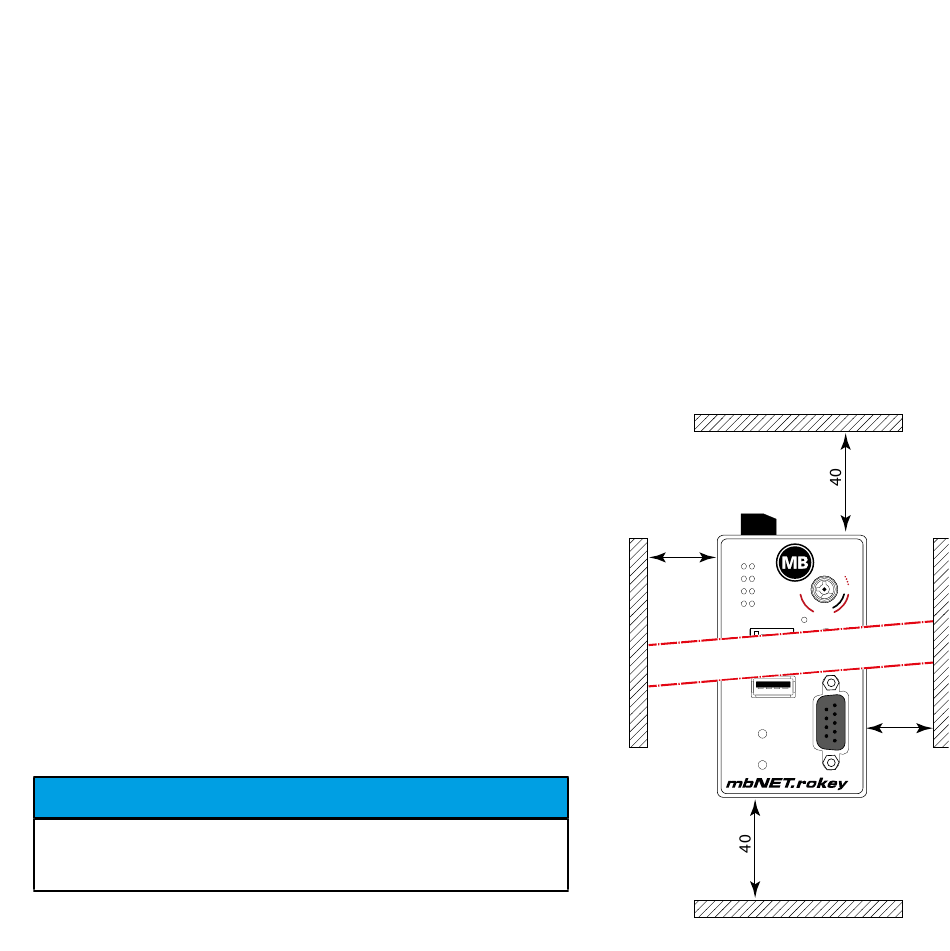

6.1 Installation position / minimum
distances
The mbNET router is for mounting on DIN rails (according 
to DIN EN 50 022) designed and intended for the control 
cabinet installation.
Installation and mounting must be in accordance with VDE 
0100 / IEC 364. The router may only be mounted in a 
vertical position as described.
Non-compliance with the minimum distances can 
destroy the device at high ambient temperatures!
NOTICE
- 8 -
•  The router may only be connected to devices,
which meet the requirements of EN 60950.
•  The router is for indoor use only.
•  Never open the router chassis. Unauthorized
opening and improper repair can pose a dan-
ger to the user. Unauthorized modifications are 
not covered by the manufacturer's warranty.
Opening up the device voids the warranty!
Fc1
Fc2
RST
Fc3
Fc4
REM
OFF
Rdy
Con
Stat
Pwr
ONL
Operation
WAN
Mode
User 1
20
User 2
Fc1
Fc2
RST
Fc3
Fc4
1
REM
OFF
Rdy
Con
LAN1
LAN2
Pwr
Stat
ONL
2
Operation
3
LAN4
LAN3
WAN
4
Mode
User 1
User 2
USB
1
LAN1
LAN2
COM
Dial Out
2
3
LAN4
LAN3
Reset
4
USB
COM
Dial Out
20
