Installation and Programming Manual
7251/7351 Slide
Vehicular pad or post-mount slide gate operator with 1050 control board

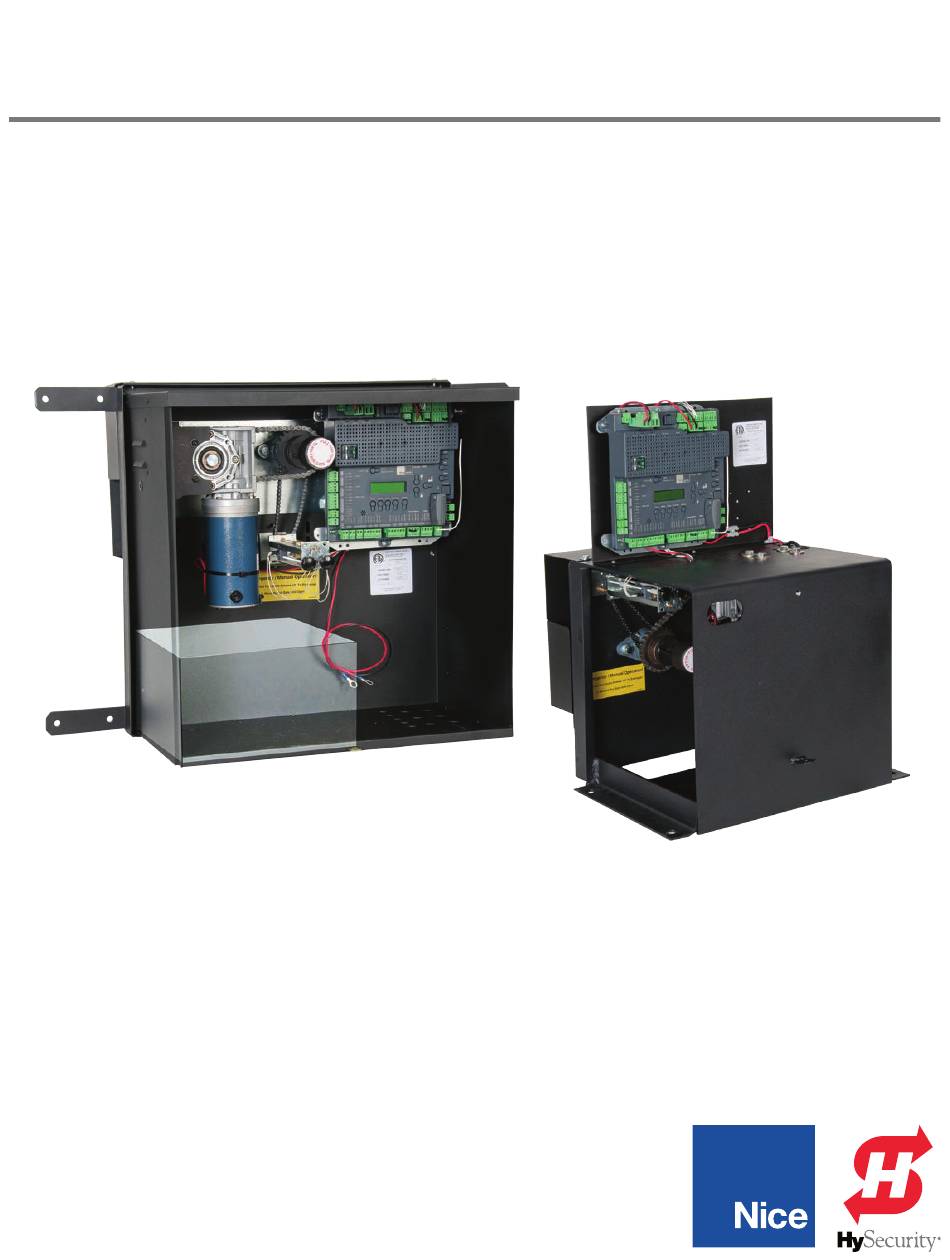

7251 post mount with 1050 control board
7351 pad mount with 1050 control board

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nice 7251 Slide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HySecurity Nice 7251 Slide

Summary of Contents for HySecurity Nice 7251 Slide

  • Page 1 Installation and Programming Manual 7251/7351 Slide Vehicular pad or post-mount slide gate operator with 1050 control board 7251 post mount with 1050 control board 7351 pad mount with 1050 control board...

  • Page 2: Table Of Contents

    INSTRUCTION 13B: SOLAR PANEL CONNECTION - 30W & ABOVE..30 INSTRUCTION 14: POWER UP CONTROL BOARD........31 INSTRUCTION 15: SELECT CONTROL BOARD STANDBY MODE....32 INSTRUCTION 16: GATE LIMIT LEARNING PROCEDURE......34 INSTRUCTION 17: PHOTO EYE STATUS & TROUBLESHOOTING.....37 www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 3: Section 1: 7251 / 7351 Slide Gate Operator Overview

    Temperature sensor to optimize charging battery and system performance. • Programmable service alarm. • Surge suppression on every peripheral input (digital and analog). • A RJ-11 jack connection for optional O-view programmer and Bluetooth module for PC control. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 4 Photo eye TX/RX through beam pair Power, mag lock, lamp, alarm, loops, edge, exit, guard station, ACCESSORY CONNECTORS Fire, BlueBUS RELAYS Two programmable relays UL 325 CERTIFICATION Usage class I, II, III, IV www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 5: Section 2: Parts Identification

    (P/N 10020715) 5/16”x 3” 5/16”x 2” AUDIO ALARM WARNING SIGNS THRU-BEAM PHOTO EYE RECEIVER (x1) CABLE TIES (x10) (x1) (P/N 911) (x2) (P/N 273C) TX/RX PAIR (x2) (P/N OXI/A) (P/N 75500019 0(P/N EPMB/A) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 6: Section 3: Safety And Ul325 Usage Classes

    • The entrance is for vehicles only. Pedestrians must use together as a system. It is the responsibility of the system separate entrance. designer and/or installer to ensure any safety or operational issues have been addressed. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 7 • guarding is supplied for exposed rollers; • When utilizing a Nice 936 or 1050 board, a maximum of 8 entrapment protection devices (6 BlueBUS and 2 pulse outputs may be connected. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 8 Refer to ASTM The following provisions shall apply to Class I, Class II and Class F2200 for additional gate types. III vehicular horizontal slide gates: www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 9 With the gate closing, block any photo eyes and/or depress their intended function. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 10 (provided the gate in the open direction presents no risk of entrapment.) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 11: Section 4: Installation Safety

    12 Volt DC Output Sealed lead acid starter battery Terminal posts on top (not sides) 35 AMP hours or larger for AC charging applications 70 AMP hours or larger for Solar charging applications & Longer Backup www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 12: Section 6: 7251 - Post-Mount Installation

    2. Mount operator to posts at desired height using the four supplied 5/16” x 3” U-Bolts and 5/16” nuts and tighten into place making sure operator is level. 3” U-BOLT (x4) GATE TOP VIEW 3” U-BOLT (x4) IMAGE 1A-2: AFFIXING CONTROL BOX TO MOUNTING POSTS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 13 IMAGE 2A-2: CHAIN BRACKET AND HARDWARE CHAIN BRACKET CHAIN BRACKET AT LEFT SIDE AT RIGHT SIDE OF GATE OF GATE TOP VIEW GATE CHAIN CHAIN CHAIN CONTROL BRACKET BRACKET IMAGE 2A-3: CHAIN BRACKETS INSTALLED ONTO GATE www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 14 5. Attach chain to chain bolt and connect to the second chain bracket. NOTE: Allow 1 inch of sag per 10 feet of chain. WASHER WASHER LOCK WASHER LOCK WASHER MASTER CHAIN BOLT LINK CHAIN BRACKET IMAGE 3A-2: INSTALLING CHAIN BOLT TO CHAIN BRACKETS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 15: Section 7: 7351 - Pad-Mount Installation

    Replace operator and anchor to the pad using (4) 1/2” anchor bolts as shown. Direction of opening 3”-5” GATE ROLLERS Concrete Pad TOP VIEW IMAGE 1B-2: INSTALLING CONTROL BOX ONTO MOUNTING PAD www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 16 IMAGE 2B-2: CHAIN BRACKET AND HARDWARE CHAIN BRACKET CHAIN BRACKET AT LEFT SIDE AT RIGHT SIDE OF GATE OF GATE TOP VIEW GATE CHAIN CHAIN CHAIN CONTROL BRACKET BRACKET IMAGE 2B-3: CHAIN BRACKETS INSTALLED ONTO GATE www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 17 5. Attach chain to chain bolt and connect to the second chain bracket. NOTE: Allow 1 inch of sag per 10 feet of chain. WASHER WASHER LOCK WASHER LOCK WASHER MASTER CHAIN BOLT LINK CHAIN BRACKET IMAGE 3B-2: INSTALLING CHAIN BOLT TO CHAIN BRACKETS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 18: Section 8: Control Board & Motor Wiring

    MOUNT BATTERY IN CONTROL BOX CHASSIS Place battery in the operator chassis as shown below. For 7351, position battery terminals toward opening. 7251 7351 CHASSIS CHASSIS BATTERY IMAGE 4-1: BATTERY POSITION IN OPERATOR CHASSIS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 19: Instruction 5A: 7351 - Wiring Motor To Control Board

    ORANGE: Open Limit GREEN: Limit Common GREEN: Limit Common 7251 7251 BLACK MOTOR MOTOR BLACK LEADS LEADS MOTOR 1 MOTOR 1 IMAGE 5A-1: LEFT HAND SINGLE GATE WIRING IMAGE 5A-2: RIGHT HAND SINGLE GATE WIRING www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 20 MOTOR 1 MOTOR 2 DO NOT USE WHITE: Close Limit ORANGE: Open Limit GREEN: Limit Common 7251 7251 MOTOR MOTOR BLACK BLACK LEADS LEADS MOTOR 1 MOTOR 2 IMAGE 5A-3: DUAL GATE WIRING www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 21: Instruction 5B: 7251 - Wiring Motor To Control Board

    ORANGE: Open Limit GREEN: Limit Common GREEN: Limit Common 7351 7351 BLACK MOTOR MOTOR BLACK LEADS LEADS MOTOR 1 MOTOR 1 IMAGE 5B-1: LEFT HAND SINGLE GATE WIRING IMAGE 5B-2: RIGHT HAND SINGLE GATE WIRING www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 22 MOTOR 1 MOTOR 2 DO NOT USE WHITE: Close Limit ORANGE: Open Limit GREEN: Limit Common 7351 7351 BLACK BLACK MOTOR MOTOR LEADS LEADS MOTOR 1 MOTOR 2 IMAGE 5-3B: DUAL GATE WIRING www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 23: Section 9: Blue Bus Photo Eye Installation

    SECURE SECURE SIDE SIDE RX = Receiver TX = Transmitter P* = Jumper Setting IMAGE 6-1: POSSIBLE ENTRAPMENT ZONES AND PHOTO EYE LOCATIONS NOTE: Other Entrapment zones may exist and must be protected. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 24: Instruction 7: Prepare Bluebus Photo Eyes For Install

    3. If more than one pair of photo eyes, configure jumpers so that each pair has a unique jumper setting (six maximum). Stow unused jumpers in slots on photo eye rear (F). See note above. Close Direction Close Direction Close Direction Close Direction NOT USED Open Direction Open Direction www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 25: Instruction 8: Install & Wire Bluebus Photo Eyes

    Maximum total length of wire should not exceed 165 feet (50 meters). When replacing photo eyes, jumper setting on the new device must match the old device to avoid the control board from having to re-learn the BlueBUS configuration. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 26: Instruction 9: Connect Bluebus Photo Eyes To Board

    If signs cannot be attached to gate, ensure they are as visible as possible to pedestrians and anyone operating the gate. 2. Use two tie wraps per sign, or alternative means, to securely affix signs to gate. IMAGE 10-1: GATE ENTRAPMENT WARNING SIGN www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 27: Section 10: Power Options And Wiring

    FIGURE 11-1: 1050 CONTROL BOARD done by drilling a hole in the control box, removing GROUND LOCATION the powder coating around the hole, and bonding the copper ground wire to that area with a bolt. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 28: High Voltage Wire Gauge Requirements

    2. Attach lugs of the battery cable to the battery terminals; black to negative (-) and red to positive (+) terminals. BATTERY BATTERY CABLES IMAGE 11-1: BATTERY CABLES NOTE: LED below the terminal will glow red if battery is mis-wired. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 29: Instruction 12: Main Dc Power - Input Connections

    LED will illuminate above the connector. For 30W solar panels and above, an external regulator must be used. Nice offers a regulator (P/N SG-4) for this purpose. See INSTRUCTION 14B for installation instructions for the SG-4 regulator. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 30: Instruction 13B: Solar Panel Connection - 30W & Above

    S O L A R C O N T R O L L E R RATED 4.5A 12V Made in Singapore SOLAR SOLAR BATTERY BATTERY 12 V 12 V – – SOLAR PANEL YELLOW BLACK BLACK BATTERY BLACK BLACK IMAGE 14B-1: P/N SG-4 SOLAR PANEL REGULATOR WIRING www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 31: Instruction 14: Power Up Control Board

    (Open or Close) indicating the board is ready to ‘learn” the gate limits, and you may proceed to INSTRUCTION 16. 8. If safety devices provided in the kit are determined to be defective, contact Nice technical support. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 32: Instruction 15: Select Control Board Standby Mode

    6. Once this is done, the operator will enter a Standby Mode after the set time when the operator is not moving, it is either in the auto-close countdown or is being held open by an external auxiliary input. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 33: Section 12: Adjusting Gate Open/Close Limits

    INCREASE TRAVEL FOR TRAVEL FOR MOVEMENT MOVEMENT TO TO THE LEFT. THE RIGHT. LIMIT ADJUSTMENT LIMIT ADJUSTMENT KNOB FOR LEFT KNOB FOR RIGHT TOP VIEW MOVEMENT MOVEMENT IMAGE 17-3: 7351 LIMIT ASSEMBLY FUNCTIONS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 34: Instruction 16: Gate Limit Learning Procedure

    Do NOT OK the LEARN function until MOTOR 1 MOTOR 2 IMAGE 17-4: OPEN/CLOSE LIMIT LEDS reaching Step 13. LIMIT LED LIMIT LED (Continued) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 35 LEFT RIGHT RIGHT motor. LIMIT KNOBS LESS MORE MORE LESS TRAVEL TRAVEL TRAVEL TRAVEL RIGHT RIGHT LEFT LEFT LEFT MOVEMENT ADJUST RIGHT MOVEMENT ADJUST IMAGE 17-5: GATE LIMIT ASSEMBLY ADJUSTMENT - GATE DIRECTION www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 36 By default, there is a 10 second delayed “Auto Close”, so after 10 seconds of being open, the gate will again close. This can be changed and set in the control board options as described in later instructions. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 37: Section 13: Final Assembly & Programming

    Check if there is an obstacle between the TX and the (TX, RX) –The RX is receiving no Always on RX; clean the photo eye glass and realign the TX and signal. RX photocells. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 38: Instruction 18: Bluebus Photo Eye Alignment

    4. Observe LED behavior during adjustment and stop adjustment when LED flashes very slowly. 5. Re-tighten screw (C). Do not replace covers till after photo eye testing is performed later in these instructions. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 39: Instruction 19: Bluebus Photo Eye Testing

    1. Ensure rubber rear gasket is in position, then affix photo eye cover to assembly with hardware (A). 2. Ensure rubber front gasket is in position, then snap in face plate (B). REAR FRONT GASKET GASKET www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 40: Instruction 21: Installing The Audio Alarm

    4. In the event of a hard shutdown, be sure to determine the problem before resetting the shutdown (pressing the RESET Button on the control board). IMAGE 22-1: ALARM OUTPUT ALARM OUTPUT ON CONTROL BOARD CONNECTOR www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 41: Instruction 22: Assigning New Remote Control

    6. If remotes do not function properly, refer to the FUNCTION/Radio Ch. Menu in SECTION 8 to assign the correct function to the radio channels. PROGRAM BUTTON GREEN IMAGE 23-1: OXI/A RECEIVER (LEFT), 2-BUTTON REMOTE (MIDDLE) & 4-BUTTON REMOTE (RIGHT) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 42: Instruction 23: Deleting Single Remote Control

    Nice receiver. 4. It is recommended to test the Nice remote controls, if available, with Nice OXI/A plug-in receiver to verify that it no longer affects the gate controller. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 43: Section 14: Programming And Controls

    NOTE: Use programming buttons only after understanding the manual and its relation to the programming sequences shown on the following pages. Care should be taken whenever changes are implemented to ensure proper functionality and safety. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 44: Instruction 25: Control Board Menu Navigation

    MEANING SPEED Generic 1050 Button LCD Display (default values in red) 1. Max :100 Push OK Button Menu Flow Direction Push UP Button Use UP & DOWN arrows to select Push DOWN Button www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 45 10 being the highest rate of gate acceleration. * *TO PREVENT DAMAGE TO THE GATE OR THE CONTROLLER USE LOWER ACCELERATION SETTINGS FOR HEAVIER GATES. ACCELERATION EXIT 7. ESC » ESC: Exit the SPEED / ACCELERATION menus. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 46 Sets the maximum run time for the gate. Used in case the gate doesn’t reach its limits. Settings from 15 to 120 seconds with a step of 1 sec. • ESC: Exit the DELAY menu. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 47 Table, above, for gate weight definitions. Selecting gate type selects pre-calculated values for the FORCE, SPEED, and ACCELERATION settings. Learning the BlueBUS peripherals enables the gate operator to discover and integrate accessory devices like BlueBUS access control and safety devices. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 48 (see above) Step Open&Lock Partial 1 Unlock Partial Lock Step Shadow Close Photo 2 Open No Program Photo 1 FUNCTION In AUX 1 Photo 3. Auxilliary IO Step 4. Radio Ch (see next page) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 49 300 Hz pulse output that protects the open direction of travel. • PULSE CLOSE: Connect a monitored 300 Hz external entrapment sensor with a 300 Hz pulse output that protects the close direction of travel. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 50 Timer 2 • Close And Unlock • Step (Default Ch. 1) • Photo • Step H • Partial (Default Ch. 4) • Lock • Togle & Latch • Partial 1 • Unlock • Stop www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 51 5. Timers 00:00:00 Hour 6. Events (see next page) FUNCTION>TIMERS MENU: Set time for count down timers Timer 1 and Timer 2. Settings for between 1 second and 9 hours in 1 second increments. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 52 AxOut1 On • Close&Lock • Open • AxOut1 Off • Opn&Unlock • Close • AxOut2 On • Cls&Unlock • Partial • AxOut2 Off • Timer 1 • Partial 1 • Open&Lock • Timer 2 www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 53: Instruction 26: Event Programming Instructions

    3. Press OK quickly again to display “Suspend”. Event EV1 is now suspended and will not run until re- enabled. 4. Press UP or DOWN to toggle through the events EV1 – EV8 and repeat steps 2 through 3 to suspend or enable other weekly events. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 54 Most of the outputs, including output power at #20 (24v) and #38 (12V), are switched off during Standby Mode and the OK LED blinks to indicate standby status. Output #11 (V+) provides power during Standby Mode. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 55 (blinking) • Turning contrast down to less than 20% may make display unreadable. • Motor direction adjustable only in Learn Loop Inputs Inputs Mode. Photo Photo (blinking) Photo UL Input (See next page) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 56 POWER FAIL OPEN: Opens gate automatically on battery backup power if main DC power input loss is detected. • MOTOR 12V: Forces motor control voltage to +12VDC even if the supply voltage varies +9.5VDC up to +35VDC) • SET VIRTUAL ENCODER: For motors without built-in encoders. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 57 Motor 2 12. ESC actuator compared to the Motor 1 actuator. When this setting is ON, the control board attempts to synchronize the run time of both actuators. Main Display www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 58 24.3V control voltage in volts DC. Battery Volt: Displays the gate operator backup battery voltage in volts DC. DISPLAY BATT VOLT (continued on next page) 5. Battery Volt 12.7V Continued on next page www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 59 DISPLAY DISPLAY rent for Motor2 (secondary actuator). 13. Diagnostic ------------ Charger: Displays the battery charger voltage and current. Diagnostic: Factory use only. DISPLAY DISPLAY Last Reset: Factory use only. 14. Last Reset ------------ www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 60: Control Board Error Messages & Troubleshooting

    Appears when there is no external entrapment Min 2 Sensor external entrapment sensors should be connected sensors programmed and installed for a SLIDE for Slide Gate! to the slide gate control board and appropriately GATE system. programmed. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 61: Section 15: Accessory Connections

    (12 VDC, 0.5A) Voltage Activity OXI/A Plugin Radio Receiver GROUND LUG Loop 2 Signal (Entrap) External Antenna for Plugin Receiver Guard External Signal Station Receiver UL/Edge Input FIGURE 15-1: 1050 CONTROL BOARD ACCESSORY CONNECTIONS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 62: Output Connectors

    • If you are using a power supply connected to Main DC Power (at 32VDC) and also using a battery connected to the Battery input (at 13.5VDC) - terminal 11 will have an output of 32VDC. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 63 This output may be used to power accessories that are required to power-down when board enters power saving mode. This is primarily beneficial for solar powered configurations where it is desirable to reduce power consumption. PIN 20 = +24VDC Regulated PIN 21 = GND (Ground) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 64: Input Connectors

    Shorting the ENTRAP input (26) to GND while the gate is opening cause the gate to close to the fully closed position. • This input is not for external entrapment sensors. PIN 26 = Entrap PIN 27 = GND (Ground) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 65 Shorting the Fire input (32) to GND opens the gate and holds the gate open until control switch is deactivated. • Auto-close is disabled when this input is activated. Also clears hard shutdown. PIN 32 = FIRE PIN 33 = GND FIRE DEPT. INPUT WIRING (EXAMPLE) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 66 RADIO INPUTS WIRING (EXAMPLE) MASTER/SLAVE LINK CONNECTOR (38-41): The Master/Slave Link connector is meant to be used only with 24V commercial systems, and is used to control another 1050 control board as a slave. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 67: Communications Buses

    LCD on the control board. CONTROLLER OVBT MODULE: The optional OVBT Bluetooth module is used with the Oview controller for localized wireless control of the gate controller. OPTIONAL OVBT MODULE www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 68: Section 16: Emergency Vehicle Access

    NOTE: DC powered back-up systems are optional and your gate system may or may not be equipped with one. Check with your installer to determine if your gate system is equipped with a back-up power system. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 69: Section 17: Manual Quick Release Operation

    Once the quick release is disengaged you can manually move the gate. When ready to rengage the quick release simply turn the handle until the pins seat back into the sprocket and lock into place. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 70: Section 18: Appendix

    – an off-board regulator should be used and connected directly to the battery. 2. Estimate the amount of sunlight available per the Solar Map (right). 3. Use the solar wattage calculator found on the HySecurity website at https:// www.hysecurity.com/operators- accessories/solar/ to determine battery and solar panel size needed to serve the installation in question.

  • Page 71: Maintenance Schedule

    (such as insects) and remove from chassis. Clean housings and front plate. Do not use alcohol, benzene, abrasives or other cleaning products. Use only a slightly dampened soft cloth to clean transmissive panels or lenses. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 72: System Troubleshooting

    Gate moves in direction opposite expected. board. Limit LED glows green Reverse the actuators Orange and White encoder wires connected to the 1050 when gate is closed, and control board. red when open. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 73: Installation Checklist

    The installer has given the control box key to customer and explained to the customer how to manually open the gate in the event of a loss of power. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 74: Part Drawings

    7251 / 7351 Slide Gate Operator INSTALLATION AND PROGRAMMING MANUAL 18.4 PART DRAWINGS 7251 POST MOUNT CHASSIS DIMENSIONS www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 75 Sprocket, Drive, #40 Chain, 13 Tooth Sprocket, Quick Release OXI/A Receiver Sprocket, Limit - Quick Release Limit Sub Assembly This drawing is a representation and should be used for parts reference only. Quick Release www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 76 7251 / 7351 Slide Gate Operator INSTALLATION AND PROGRAMMING MANUAL 7351 PAD MOUNT CHASSIS, PARTS, AND 1050 CONTROL BOARD www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 77 INSTALLATION AND PROGRAMMING MANUAL 7351 PAD MOUNT CHASSIS, PARTS, AND 1050 CONTROL BOARD Cover, 7351 Board, Control, 1050 7351 Chassis This drawing is a representation and should be used for parts reference only. www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 78 7251 Limit Sub Assembly 10040390 Receiver, OXI/A, Multi Channel OXI/A Release, Quick 10039790 Sprocket, Drive, #40 Chain, 13 Tooth 40BS13 Sprocket, Idler 40BB17H 7251 Sprocket, Limit, Quick Release 25B24 Sprocket, Quick Release 35B25 www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 79 7251 / 7351 Slide Gate Operator INSTALLATION AND PROGRAMMING MANUAL (This page intentional blank) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...

  • Page 80: Warranty

    This warranty will be interpreted, construed, and enforced in all respects in the name plate of a manufacturer other than HySecurity or Nice and they are not a accordance with the laws of the State of Washington, without reference to its part of the base model.
  • Page 81 7251 / 7351 Slide Gate Operator INSTALLATION AND PROGRAMMING MANUAL (This page intentional blank) www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
  • Page 82 Rev A: Released for publication. 11/12/2019 INSTALLATION INFORMATION AND SIGN-OFFS Installation Acceptance Address where opener is located Installer name, number and address End user name and telephone number Contact us: Nice/HySecurity Kent, WA 98032 800-321-9947 hysecurity.com www.hysecurity.com • 800-321-9947 MX4514 Rev. A ©2019...
