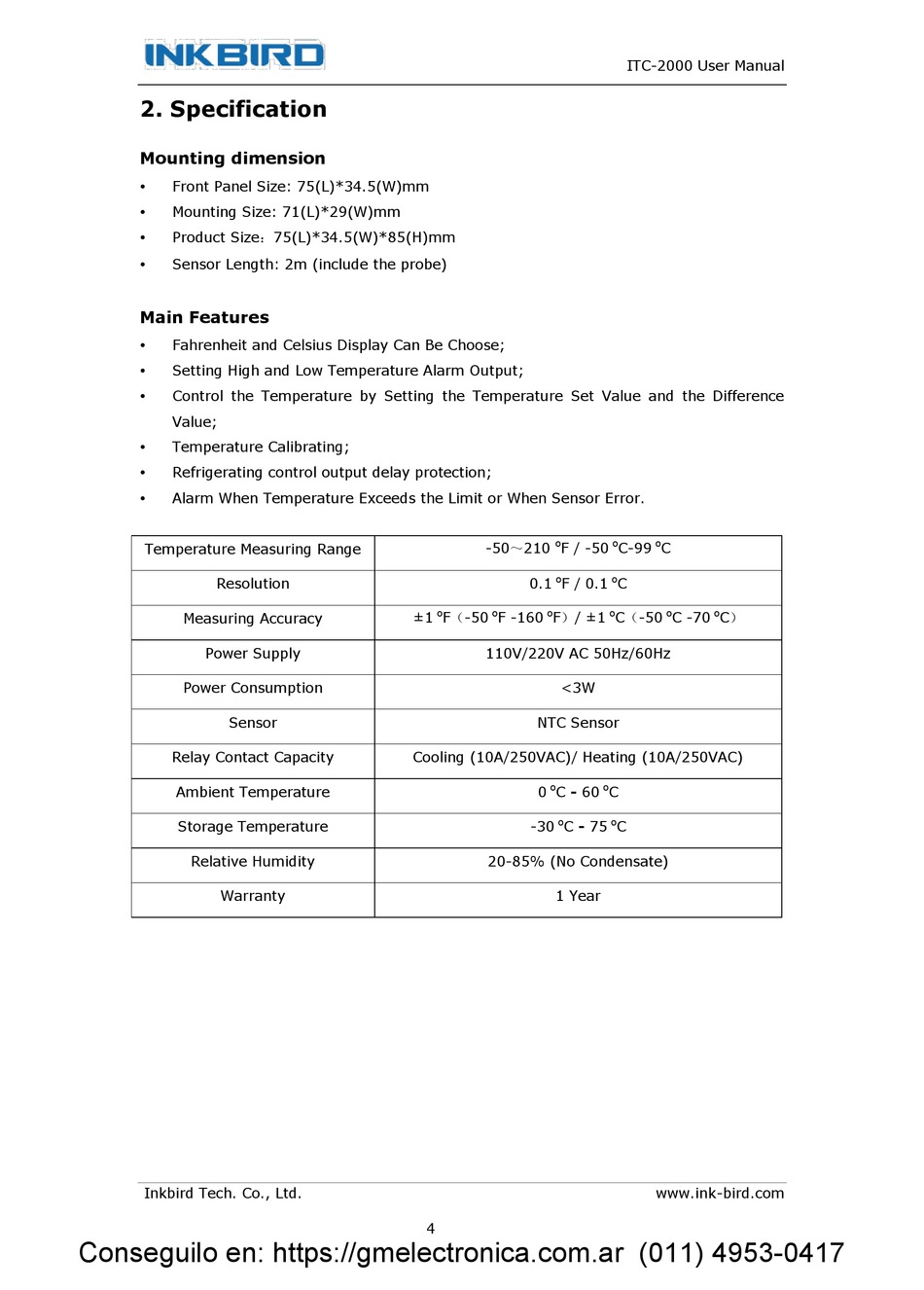

2. Specification

Mounting dimension

Front Panel Size: 75(L)*34.5(W)mm

Mounting Size: 71(L)*29(W)mm

Product Size：75(L)*34.5(W)*85(H)mm

Sensor Length: 2m (include the probe)


Main Features

Fahrenheit and Celsius Display Can Be Choose;

Setting High and Low Temperature Alarm Output;

Control the Temperature by Setting the Temperature Set Value and the Difference

Value;
Temperature Calibrating;

Refrigerating control output delay protection;

Alarm When Temperature Exceeds the Limit or When Sensor Error.

Temperature Measuring Range
Resolution
Measuring Accuracy
Power Supply
Power Consumption
Sensor
Relay Contact Capacity
Ambient Temperature
Storage Temperature
Relative Humidity
Warranty
Inkbird Tech. Co., Ltd.
Conseguilo en: https://gmelectronica.com.ar (011) 4953-0417
o
-50～210 F / -50
o
0.1 F / 0.1
o o o
±1 F（-50 F -160 F）/ ±1
110V/220V AC 50Hz/60Hz
<3W
NTC Sensor
Cooling (10A/250VAC)/ Heating (10A/250VAC)
o
0 C - 60
o
-30 C - 75
20-85% (No Condensate)
1 Year
4
ITC-2000 User Manual
o o
C-99 C
o
C
o o o
C（-50 C -70 C）
o
C
o
C
