- Page 1 SMART SPRINKLER CONTROLLER IIC-800-WIFI USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS Overview Features & Specifications Product Diagram Operation Instructions Installation Troubleshooting Guide Product Warranty Irrigation Schedule Table... -
Page 4: Overview

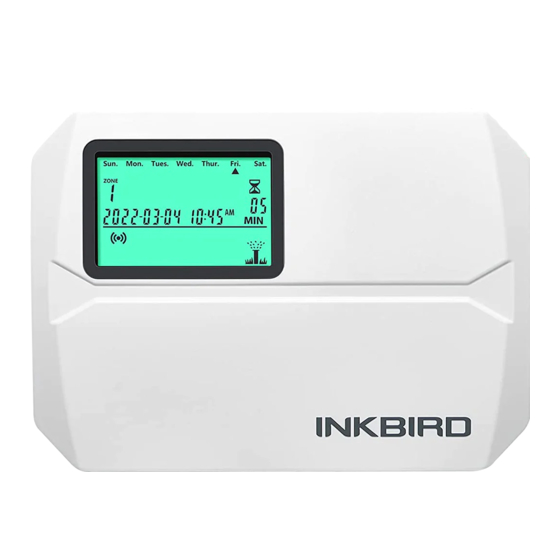

OVERVIEW INKBIRD IIC-800-WIFI smart sprinkler controller upgrades your water pipes into an intelligent automatic system, which will save you plenty of time that you would have spent watering in the past. This controller features a Wi-Fi function, enabling you to program and monitor irrigation by your phone. -
Page 5: Product Diagram
PRODUCT DIAGRAM POWER：Turn on and enter the AUTOMATIC: Automatically water auto irrigation mode; Turn off and based on the programmed stop all progressing irrigation, and watering schedules forbidden the auto mode SEASONAL ADJUST: Extend or SCHEDULE: Customize irrigation reduce the irrigation duration (run schedules, to determine how time) of all stations often the timer will water... -
Page 6: Operation Instructions
OPERATION INSTRUCTIONS INKBIRD APP Setting Download the APP Search the keyword “INKBIRD” in App store or Google Play, or scan the following QR code to download and install the APP. Pair your phone Android • Open the app and enter the login interface. You •... - Page 7 • Click “Add Home” to set up your family. Note: You should set Home Location if you want to acquire the local weather conditions of the device, IIC-800-WIFI. Add Products SmartConfig Short press Configuration Configuration button State State Long press...
- Page 8 “+” in the top right • Click “Done” when the device is successfully connected to corner to add the the Wi-Fi network. Then you can set and control the device via device. InkBird app. NOTE: This device supports a 2.4GHz Wi-Fi network only.
- Page 9 Add devices in AP Mode • Click another way to • Click“Confirm • Choose the name of your Wi-Fi choose the compatible indicator slowly blink”. device and enter the password mode. before clicking “Confirm” to start the connection. • Click “Go to Connect” to go to your phone's WLAN setting page, select the SmartLife-xxxx”...
- Page 10 • Go back to the app and click “Done” when the device is success- fully connected to the Wi-Fi network. Then you can set and control the device via InkBird app. Functional Operation on APP Interface Main Interface 12:30 Device Name...
- Page 11 Rain Sensor Switch Seasonal Adjusted Value Seasonal Adjusted Value More Settings Reset Parameters Reset Parameters Power Interface of Scheduled Irrigation 12:30 12:30 IIC-800-WIFI IIC-800-WIFI Information of the Current Zone : upcoming irrigation Information of current zone irrigating zone Zone Number Watered Period...
- Page 12 Interface of scheduled irrigation settings Shut down the zone 12:30 Cancel the setting and restore the last setting parameters Confirm the settings Zone description, such as”Front yard garden” Watering Peroid Scheduled Duration Time Scheduled Duration Time Start Time 09 00 14 00 16 00 Shut down the zone and...
- Page 13 Interface of Manual Irrigation • Interface of single or multiple zones Zone Number Watered Time Manual watering Remaining time Time All zones setting Stop all irrigation Stop irrigation at the current zone Start irrigation and enter the next zone • Interface of all zones Stop all irrigation Remaining Time Manual watering...
- Page 14 Device Settings Date & Time: Set the clock time, year, month and day • Press the button to enter the setting of the current time; Long press the button for 2 seconds to select between 12-hour clock and 24-hour clock. •...
- Page 15 2/ Set watering duration • Press the button to adjust the watering duration time, then press the button to move forward to the next option. 3/ Set watering start times Note: 1~6 start times can be set for each zone. •...
- Page 16 • Press the button to activate or forbidden irrigation on the pointing day which is flashing, then move to the setting of the next day. Or you can press the button to move to the setting of the next day. Option 2: Water on odd days •...
- Page 17 • Press the button to set a number of days for the time interval. You will see the display character flashing. In that case, press the button to move forward to the next setting. • Press the button to set the desired start day.
- Page 18 Display in Auto Mode: The screen displays the current time and date. Display in Irrigation Process: The screen displays the current time and date, the serial number of the zone, and the remaining watering time. You will see the icon of the sprayer flashing.
- Page 19 • Press the button to check other start times on this zone. • Press any other buttons or wait for 5 seconds of no operation to quit the inquiry state. Turn On/Off: Turn on and enter the auto mode to irrigate based on programmed schedules;...
- Page 20 • All zones are selected by default. Press the button to move forward to the next option. • Press the button to set the desired watering duration time. • Press the button to quit setting and start irrigating. The device will automatically quit and start irrigating if there is no operation in 60 seconds.
- Page 21 Note: • In irrigating process, if you press the button, all irrigation will be paused and the device will enter shutdown mode. • You can press the button to stop all irrigation and enter auto irrigation mode. • You can press the button to adjust the remaining watering time of the activated zone based on your need.
- Page 22 Rain Sensor Bypass: Set controller to OBEY or IGNORE the Rain Sensor a) Set Bypass for one or several zones • Press the button to enter the setting. • Press the button to select the desired zone number. • Press the button for 2 seconds to toggle between OBEY and IGNORE.
- Page 23 6 FEET 3 IN. • Insert the screws into the wall. There should be a gap about 3 mm width between the screw head and the wall. 1/8 IN. • You can tighten up both holes on the bottom using screws just in case, though it would be uneasy to disassemble them afterward.
- Page 24 a) Connect zone valves • Connect the power supply of each zone valve to the terminal of the controller, corresponding to the station number. • Connect the common line of each valve to the common port C. b) Connect master valve (optional) Optionally connect the master valve or the pump to the controller.
- Page 25 C) Connect rain sensors (optional) • Remove the jumpers on ports 24 VAC- and S1 (or S2) of the terminal. (Two rain sensors can be connected at the same time.) • Separately connect the 2 lines of the rain sensor to ports 24 VAC- and S1 (or S2).
- Page 26 Note: • The 24 VAC- port is a common port. • You must connect the S1 port and S2 port with the 24 VAC- port if there is no rain sensor connected. Power Supply Connection • This controller adopts adapters following local safety regulations' certification, convenient and safe.
- Page 27 TROUBLESHOOTING GUIDE What can you do if the programmed system or the manual mode is not working? Here are some possible reasons and relative solutions for reference. We hope it’s helpful. For any further questions, please feel free to contact INKBIRD.
-
Page 28: Troubleshooting Guide
This item carries a 2-year warranty against defects in either components or workman- ship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. FCC Requirement Changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment. -
Page 29: Irrigation Schedule Table
(2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 30 WATERING DEFINI- WATERING WATERING ZONE DURATION TION START TIMES CYCLIC DAYS TIME Days of the week: am/pm am/pm Mon. Tue. Wed. Thur. Fri. Sat. Sun. am/pm am/pm odd days even days am/pm am/pm every ____ days Days of the week: am/pm am/pm Mon.
- Page 32 INKBIRD TECH.C.L Support@inkbird.com www.inkbird.com Room 1803, Guowei Building, NO.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China V 1.0...
