In any status, press "

normal temperature value.
If no operating within 10s, it will exit the menu automatically and return to

normal temperature display
this modification.

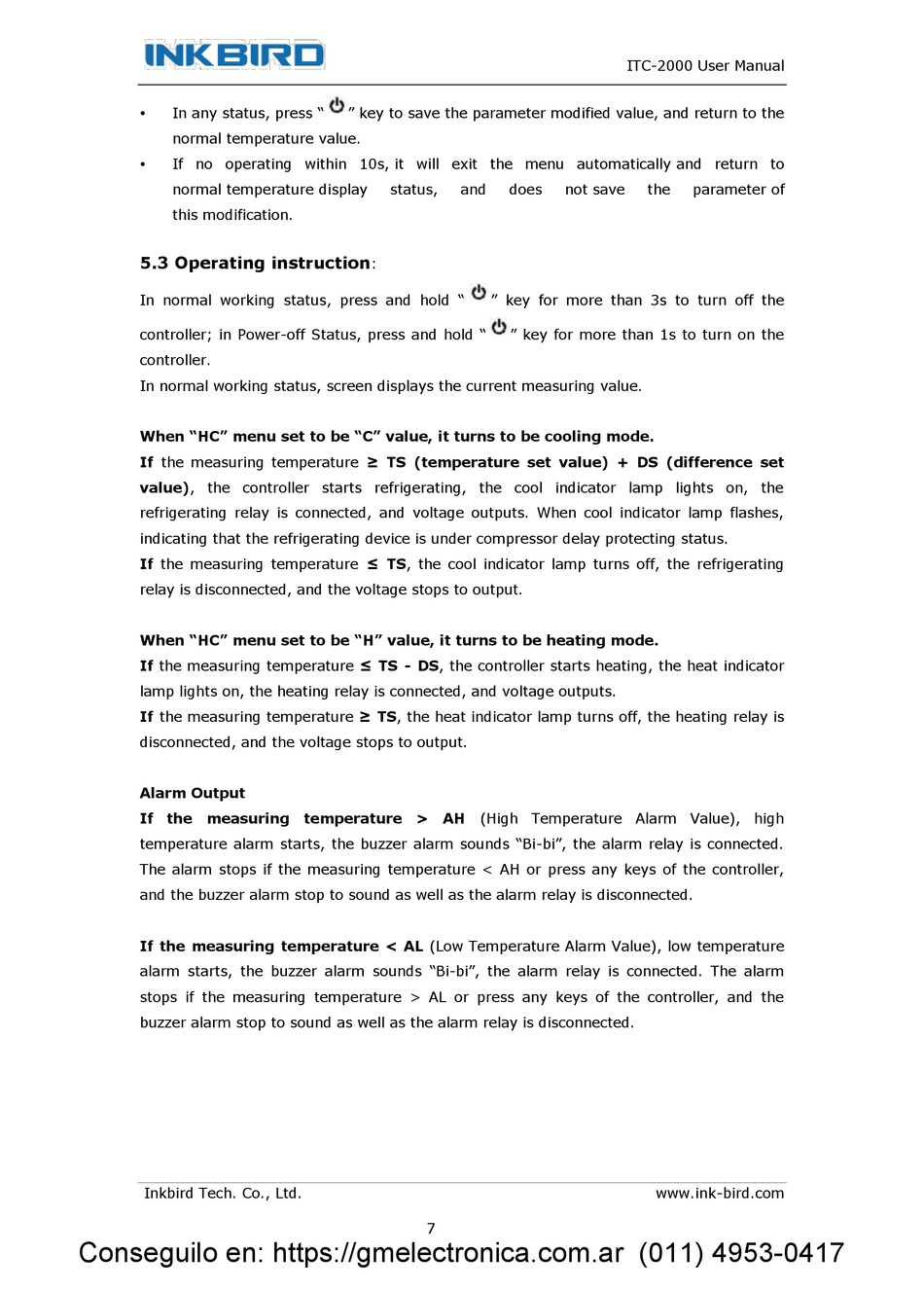

5.3 Operating instruction

In normal working status, press and hold "
controller; in Power-off Status, press and hold "
controller.
In normal working status, screen displays the current measuring value.
When "HC" menu set to be "C" value, it turns to be cooling mode.
If the measuring temperature ≥ TS (temperature set value) + DS (difference set
value), the controller starts refrigerating, the cool indicator lamp lights on, the
refrigerating relay is connected, and voltage outputs. When cool indicator lamp flashes,
indicating that the refrigerating device is under compressor delay protecting status.
If the measuring temperature ≤ TS, the cool indicator lamp turns off, the refrigerating
relay is disconnected, and the voltage stops to output.
When "HC" menu set to be "H" value, it turns to be heating mode.
If the measuring temperature ≤ TS - DS, the controller starts heating, the heat indicator
lamp lights on, the heating relay is connected, and voltage outputs.
If the measuring temperature ≥ TS, the heat indicator lamp turns off, the heating relay is
disconnected, and the voltage stops to output.
Alarm Output
If the measuring temperature > AH (High Temperature Alarm Value), high
temperature alarm starts, the buzzer alarm sounds "Bi-bi", the alarm relay is connected.
The alarm stops if the measuring temperature < AH or press any keys of the controller,
and the buzzer alarm stop to sound as well as the alarm relay is disconnected.
If the measuring temperature < AL (Low Temperature Alarm Value), low temperature
alarm starts, the buzzer alarm sounds "Bi-bi", the alarm relay is connected. The alarm
stops if the measuring temperature > AL or press any keys of the controller, and the
buzzer alarm stop to sound as well as the alarm relay is disconnected.
Inkbird Tech. Co., Ltd.
Conseguilo en: https://gmelectronica.com.ar (011) 4953-0417
" key to save the parameter modified value, and return to the
status, and does
:
" key for more than 3s to turn off the
" key for more than 1s to turn on the
7
ITC-2000 User Manual
not save the parameter of
