Summary of Contents for Inkbird IIC-400-WIFI

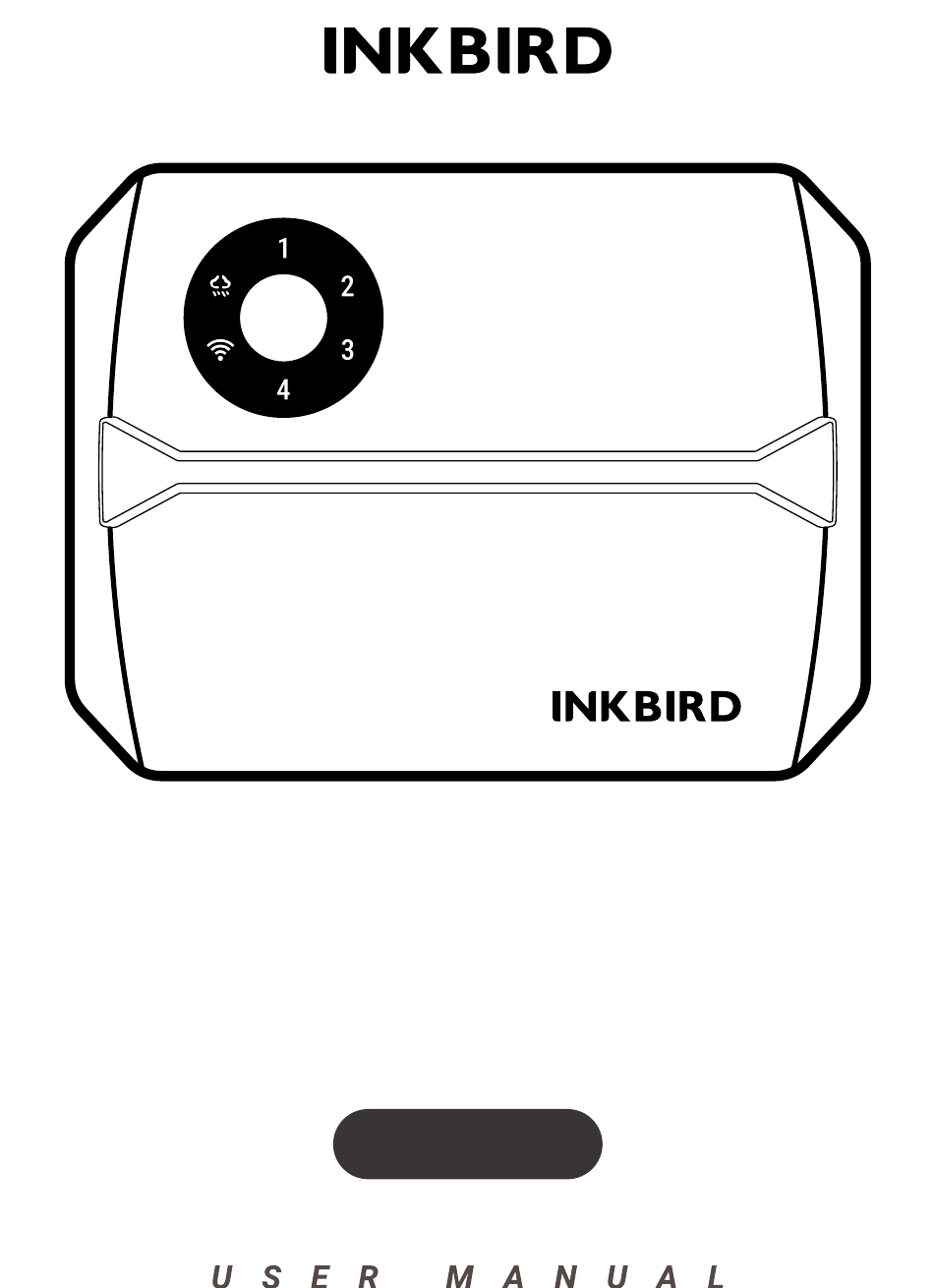

- Page 1 SMART SPRINKLER CONTROLLER IIC-400-WIFI...
- Page 2 Please keep this manual properly for reference. You can also scan the QR code to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com. Wenn Sie eine Bedienungsanleitung in deutscher Sprache benötigen, scannen Sie bitte den QR-Code und besuchen Sie unsere Website, um sie zu erhalten und ein Video über die Verwendung des Produkts zu sehen.
- Page 3 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
-
Page 4: Table Of Contents
CATALOGUE WHAT YOU WILL GET? TOOLS YOU WILL NEED PRODUCT DIAGRAM INSTALLATION STEPS TROUBLESHOOTING GUIDE FUNCTION DESCRIPTION FCC REQUIREMENT CUSTOMER SERVICE... -
Page 5: What You Will Get
WHAT YOU WILL GET? Protective Face Plate Smart Sprinkler Controller 3x Screws with Anchors Power Adapter Screwdriver Threaded Wiring Connectors(4PCS) -
Page 6: Tools You Will Need
Label Sticker TOOLS YOU WILL NEED 2.4Ghz Wi-Fi Access Smartphone or Tablet Screwdriver Hammer Electric Drill... - Page 7 Electrical Specifications US - AC120V 60Hz AU - AC230~240V 50Hz Adapter Input EU - AC230V 50Hz UK - AC240V 50Hz Adapter Output AC24V 1000mA Controller Input AC24V 1000mA Zone Output Compatible with AC24V control valve Master/Pump Valve Output AC24V App Installation Requirements iOS or Android compatible device (iOS 13/Android 7.1 and later) 2.4GHz wireless network signal available at the installation location Support WEP/WPA/WPA2/WPA2 PSK(AES) security modes...
-
Page 8: Product Diagram
PRODUCT DIAGRAM Operation indicator light Buttons PWR IN Zone 1~4 Rain 24VAC- 24VAC+ AC24V Master/Pump Sensor Common... -
Page 9: Installation Steps
WiFi connection. Open the INKBIRD app and click “+” on the top right corner to add a device. Then, follow the app instructions to complete the Wi-Fi connection. Note that this controller only supports 2.4GHz Wi-Fi networks. After the connection is successful, the indicator on the controller will always be on. - Page 10 Step1: Remove your old controller First, test your old system to ensure all the sprinklers work properly. Then label each wire using the included label stickers to avoid confusion. Check all sprinklers Mark all wires Remove old controller Step 2: Mark Screw Locations 1.Please make sure the distance between the device and the power socket is under 6 feet (1.8 meters).
- Page 11 3.Secure the top screw. Pay attention to leave a proper distance between the nut and the wall for hanging the controller. Step 3: Install Your New Controller Hang your new controller on the nut. Then secure the controller with two screws at the bottom.
- Page 12 Common Wires Common wires are usually labeled "C", insert them into any of the "C" terminals. Master valve /Pump start relay 1.Master valve (optional) Master valve wires are usually labeled "M". Wire the master valve into the "M" terminal if you have one.
- Page 13 2.Pump start relay (optional) A water pump extracts water from a well or other water sources. If you want to start a water pump via the controller, a pump start relay is necessary. Pump start relay wires are usually labeled “Pump”. Please wire it into the “M” terminal. Note: The pump should never be wired directly to the controller, doing so will damage your controller, as well as void your warranty.
- Page 14 Zone Wires Zone Wires correspond to the landscape’s zones, insert them into the terminals 1~4 .
- Page 15 Rain sensor (optional) Rain sensor wires are usually labeled "S", wire it into the "S" and "24-" terminals if you are running a rain sensor. "24-" terminal equals to the "C" terminal. Note: Please enable the rain sensor on the app if you are running a rain sensor.
- Page 16 PWR IN Power-in Insert the power connector upwards into the power jack . Then plug the adapter into a power outlet. Note: Please do not turn on the power before all wires are well connected. Please cut off the power of the controller if any wire is damaged. In that case, we recommend replacing the damaged wire to avoid hazards.
-
Page 17: Troubleshooting Guide
10 days. Please use the INKBIRD app to Zone1 to Zone4 are reconnect the controller via WiFi to calibrate the clock time. -
Page 18: Function Description
FUNCTION DESCRIPTION Indicator Light Zone 1~4 indicator lights: Stays on when watering in progress; Flashing when watering is paused; Flashing in turn when soaking in progress. Flashing simultaneously when no schedules are running; All off when the controller shuts down. All indicator lights are always on and the buzzer beeps once per second to indicate that the device time has been reset. -
Page 19: Fcc Requirement
During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to contact us at support@inkbird.com. We will do our best to help you. - Page 20 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing Road, Luohu District, Shenzhen, China V1.0...
