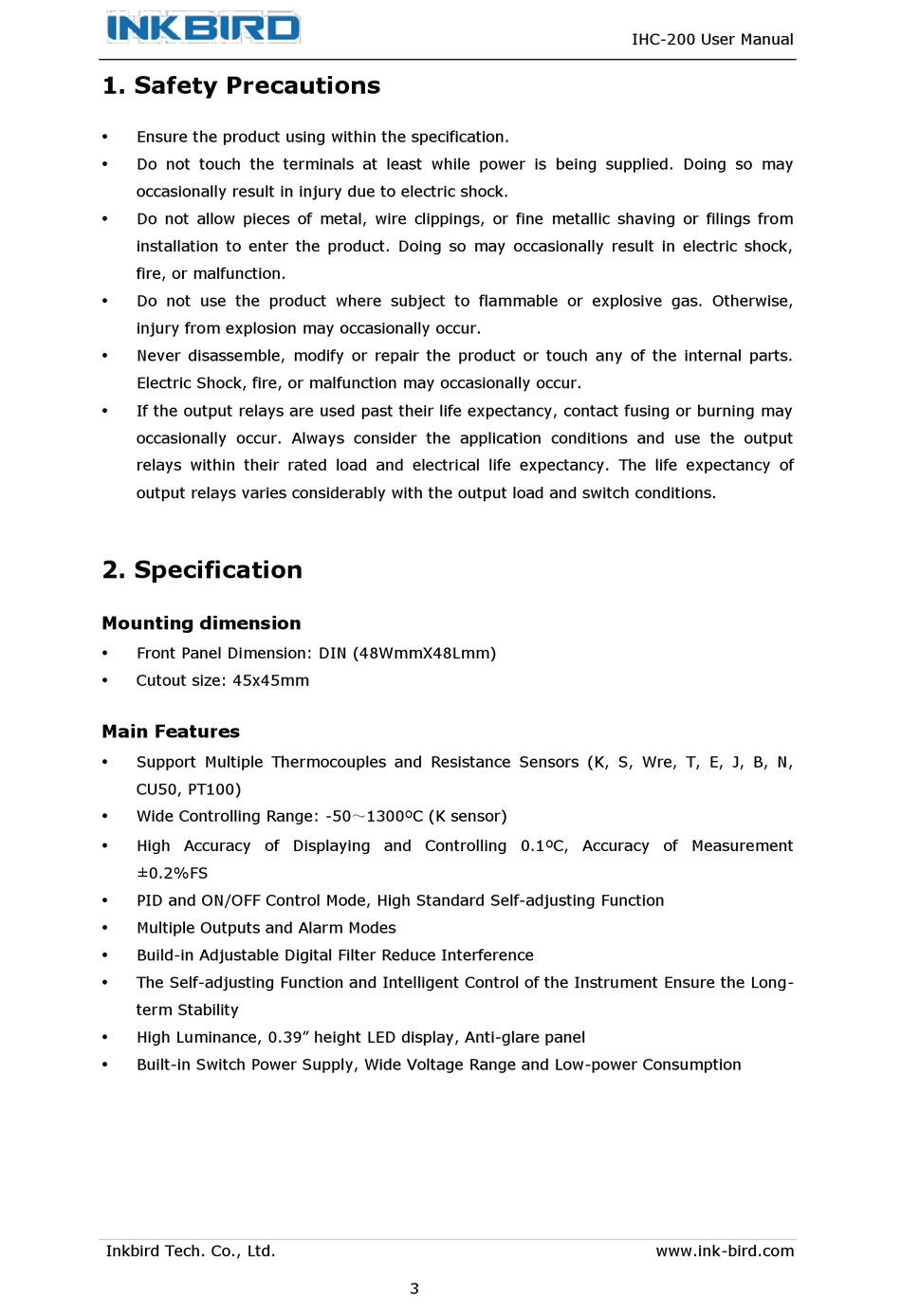

1. Safety Precautions

Ensure the product using within the specification.

Do not touch the terminals at least while power is being supplied. Doing so may

occasionally result in injury due to electric shock.
Do not allow pieces of metal, wire clippings, or fine metallic shaving or filings from

installation to enter the product. Doing so may occasionally result in electric shock,
fire, or malfunction.
Do not use the product where subject to flammable or explosive gas. Otherwise,

injury from explosion may occasionally occur.
Never disassemble, modify or repair the product or touch any of the internal parts.

Electric Shock, fire, or malfunction may occasionally occur.
If the output relays are used past their life expectancy, contact fusing or burning may

occasionally occur. Always consider the application conditions and use the output
relays within their rated load and electrical life expectancy. The life expectancy of
output relays varies considerably with the output load and switch conditions.

2. Specification

Mounting dimension

Front Panel Dimension: DIN (48WmmX48Lmm)

Cutout size: 45x45mm


Main Features

Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N,

CU50, PT100)
Wide Controlling Range: -50～1300º C (K sensor)

High Accuracy of Displaying and Controlling 0.1º C, Accuracy of Measurement

±0.2%FS
PID and ON/OFF Control Mode, High Standard Self-adjusting Function

Multiple Outputs and Alarm Modes

Build-in Adjustable Digital Filter Reduce Interference

The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-

term Stability
High Luminance, 0.39" height LED display, Anti-glare panel

Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption

