3 - Power Supply Replacement Procedure

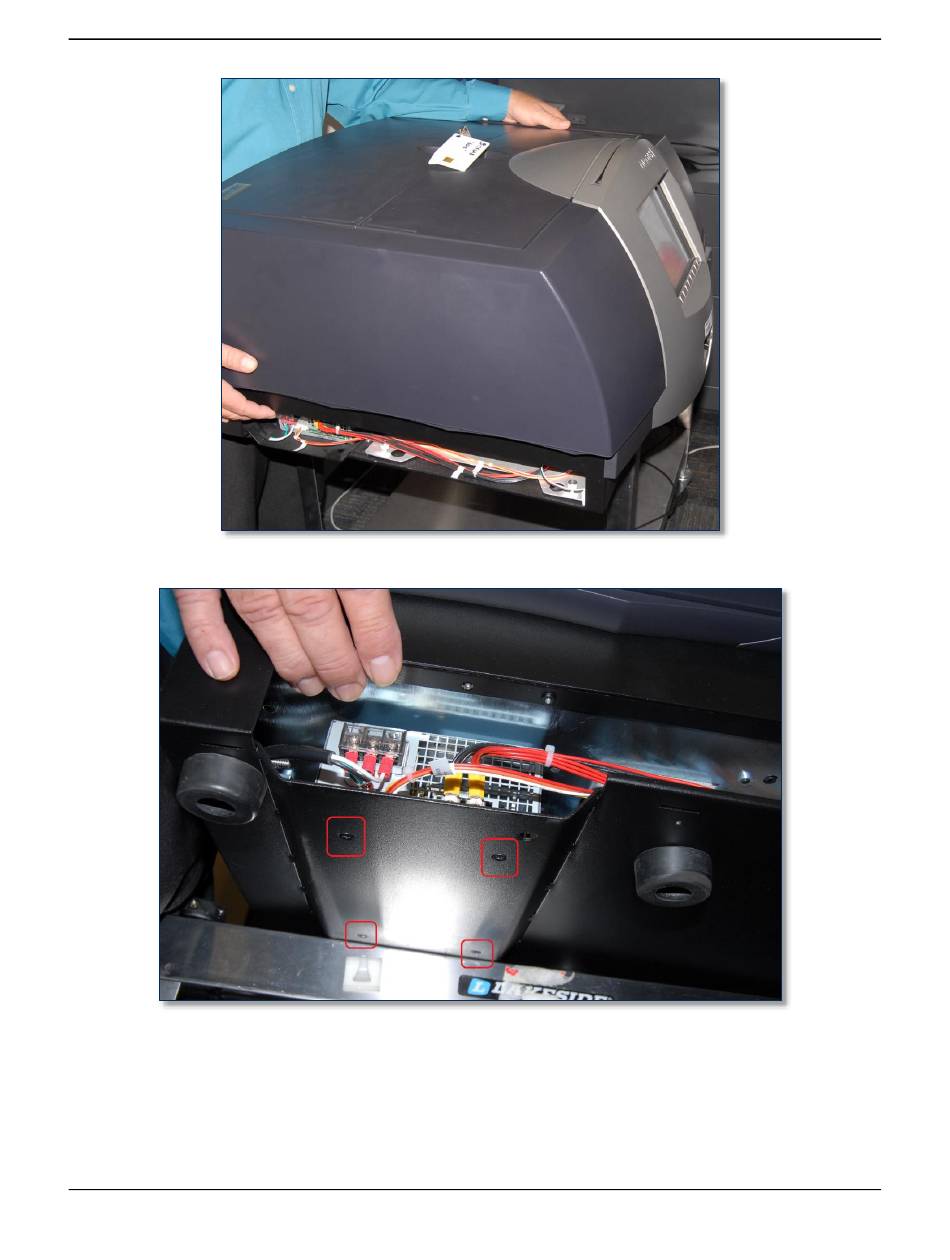

Figure 3-2 – One Person Keeps the Device Stable (LEFT VIEW)
Figure 3-3 - Four Power Supply Screws Exposed (BOTTOM LEFT VIEW)
5) Locate the power supply on the rear left side of the device, behind the left side access door.
ExpressCard 2000| Instant Issuance Card Personalization System | Power Supply Replacement Procedure
Page 9
