3 - Power Supply Replacement Procedure

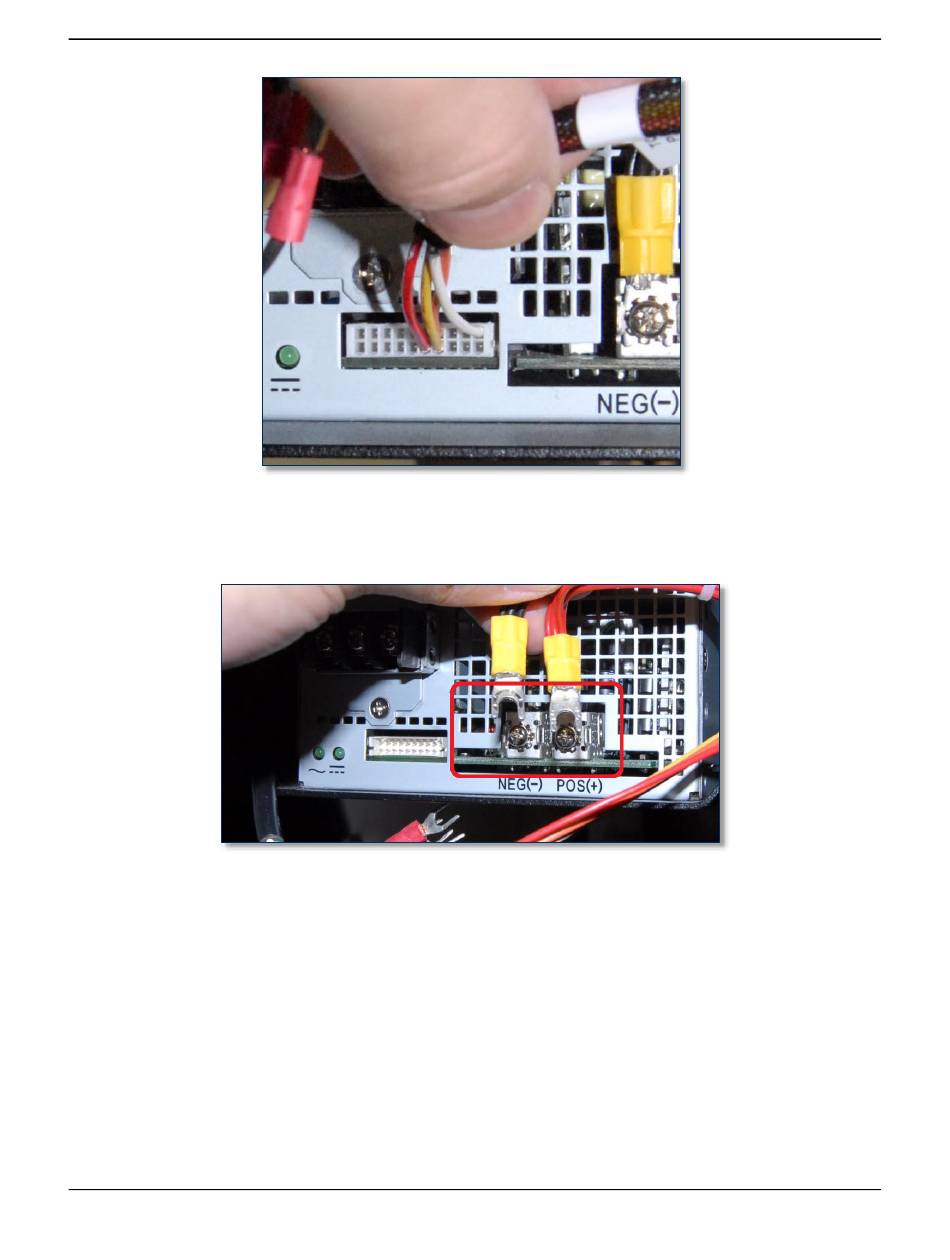

Figure 3-6 – Power Supply Control and Monitoring Connector (LEFT VIEW)
9) Use the No. 2 Philips screwdriver to loosen the screws holding the power supply output cables, then
disconnect the cables. See Figure 3-7.
10) Use the No. 2 screwdriver to remove the four screws on the bottom of the device that hold the power
supply in place (see Figure 3-3 on page 9).
11) Remove the power supply and set it aside.
12) If you are not immediately installing a replacement, with a partner, safely and carefully move the
device back to a stable operating position.
ExpressCard 2000| Instant Issuance Card Personalization System | Power Supply Replacement Procedure
Page 11
Figure 3-7 - Power Supply Output Cables (LEFT VIEW)
