3 - Power Supply Replacement Procedure

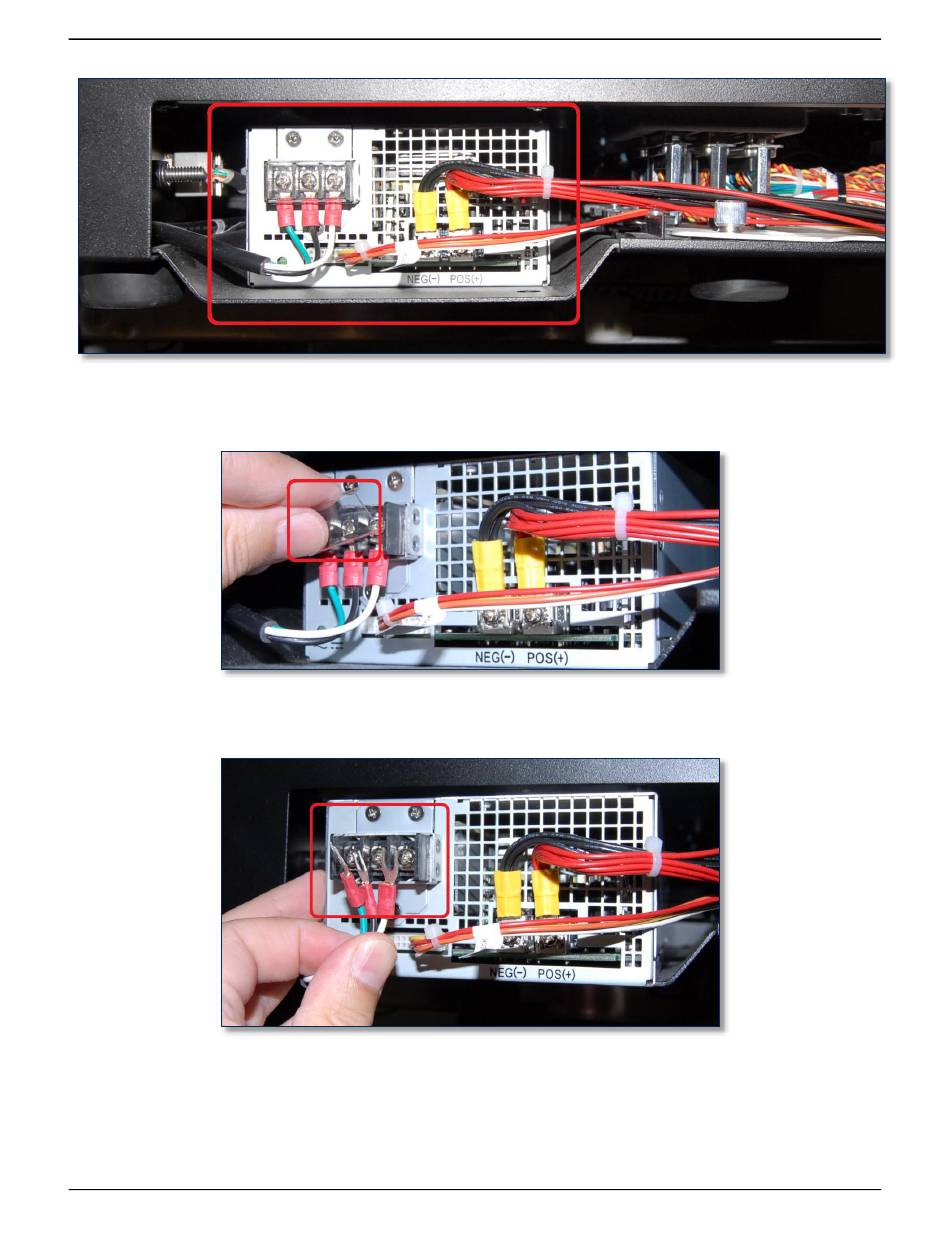

Figure 3-4 - Power Supply (LEFT SIDE VIEW)
6) Remove the clear plastic cover that protects the power supply inputs.
7) Use the No. 2 Philips screwdriver to loosen the screws that secure the three power input wires to the
power supply, then disconnect the wires.
Figure 3-5 - Power Supply Input Wires (LEFT VIEW)
8) Unplug the white plastic power supply control and monitoring connector shown in Figure 3-6.
