V 2 0 0 - 1 8 - E 2 B
S n a p - i n I / O M o d u l e

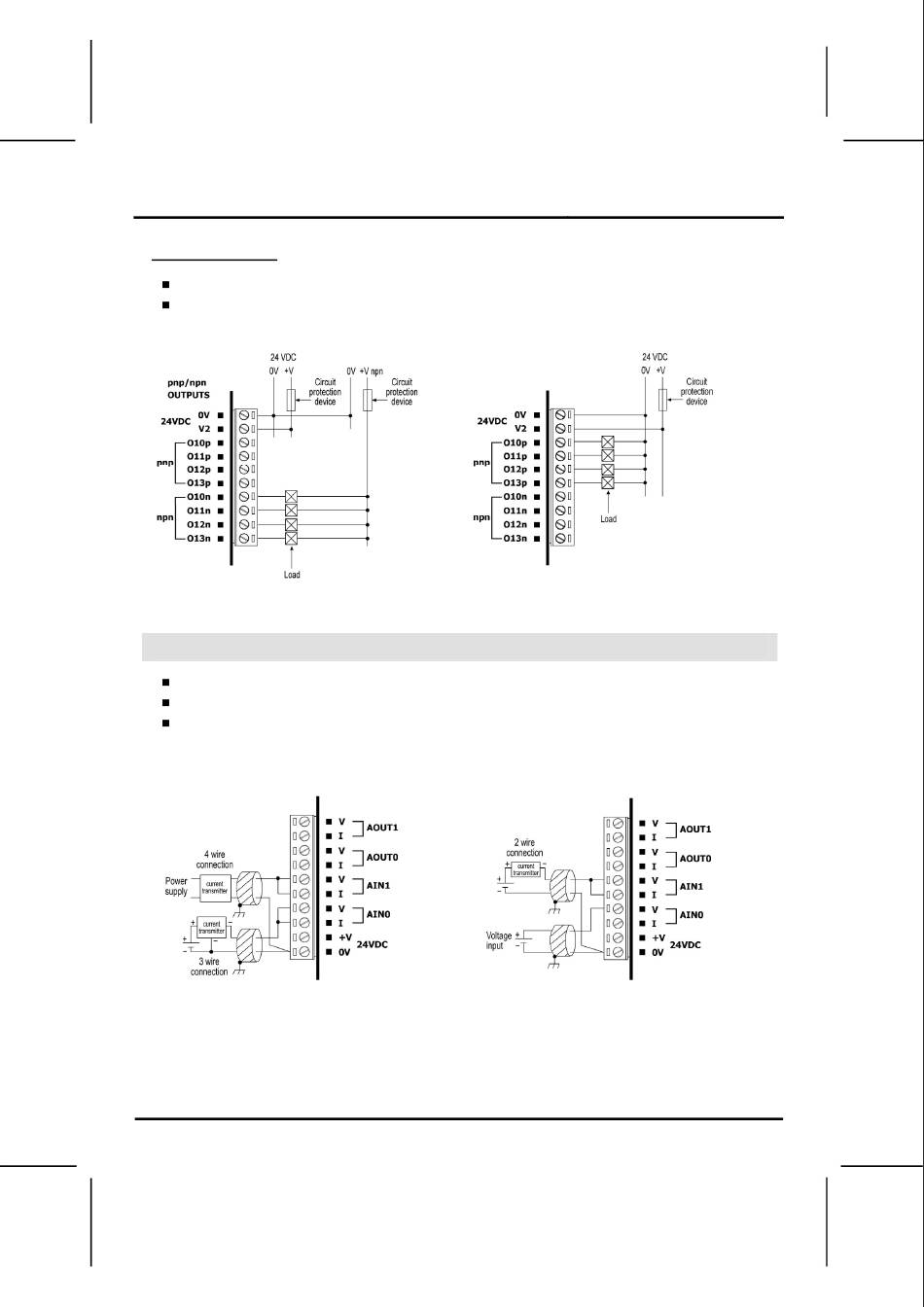

Transistor Outputs

Each output can be wired separately as either npn or pnp.
The 0V signal of the transistor outputs is isolated from the controller's 0V signal.
npn (sink)

Analog Inputs

Shields should be connected at the signal source.
Inputs may be wired to work with either current or voltage.
Note that the analog input's 0V signal must be the same 0V used by the controller's power supply.
current
6
1 0 / 0 6
pnp (source)
current/voltage
