6.3.6 To install the discharge grille

EPRA14~18DAV3+W1 + ETVZ16S18+23DA6V+9W
Daikin Altherma 3 H HT F
4P587503-1 – 2019.07
INFORMATION
Electrical wiring. Before installing the discharge grille, connect the electrical wiring.

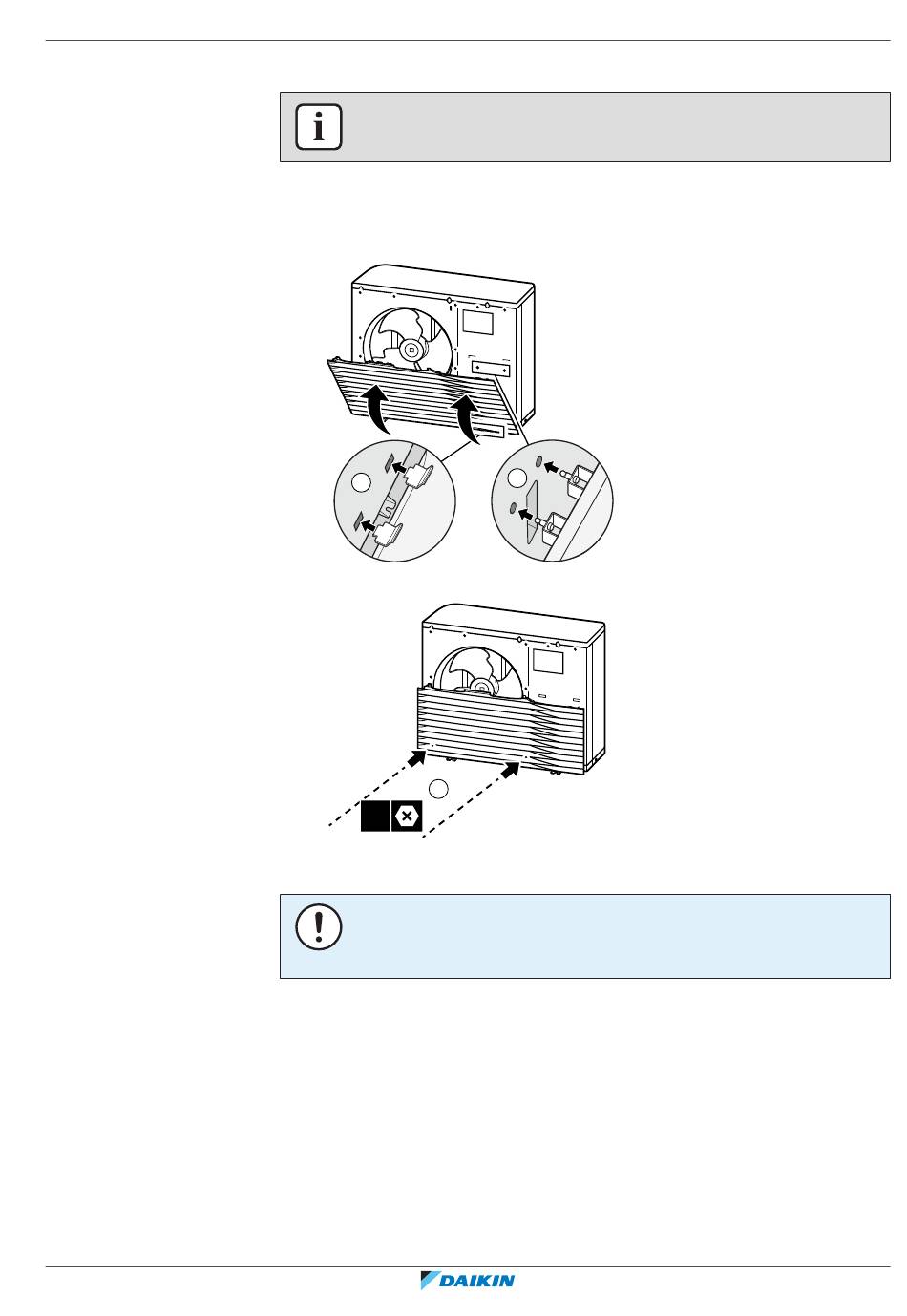

Install the lower part of the discharge grille
1 Insert the hooks.
2 Insert the ball studs.
1
3 Fix the 2 lower screws.
3
2×
Install the upper part of the discharge grille
NOTICE
Vibrations. Make sure the upper part of the discharge grille is attached seamlessly to
the lower part to prevent vibrations.
4 Align and attach the left side.
5 Align and attach the middle part.
6 Align and attach the right side.
2
