6 | Unit installation

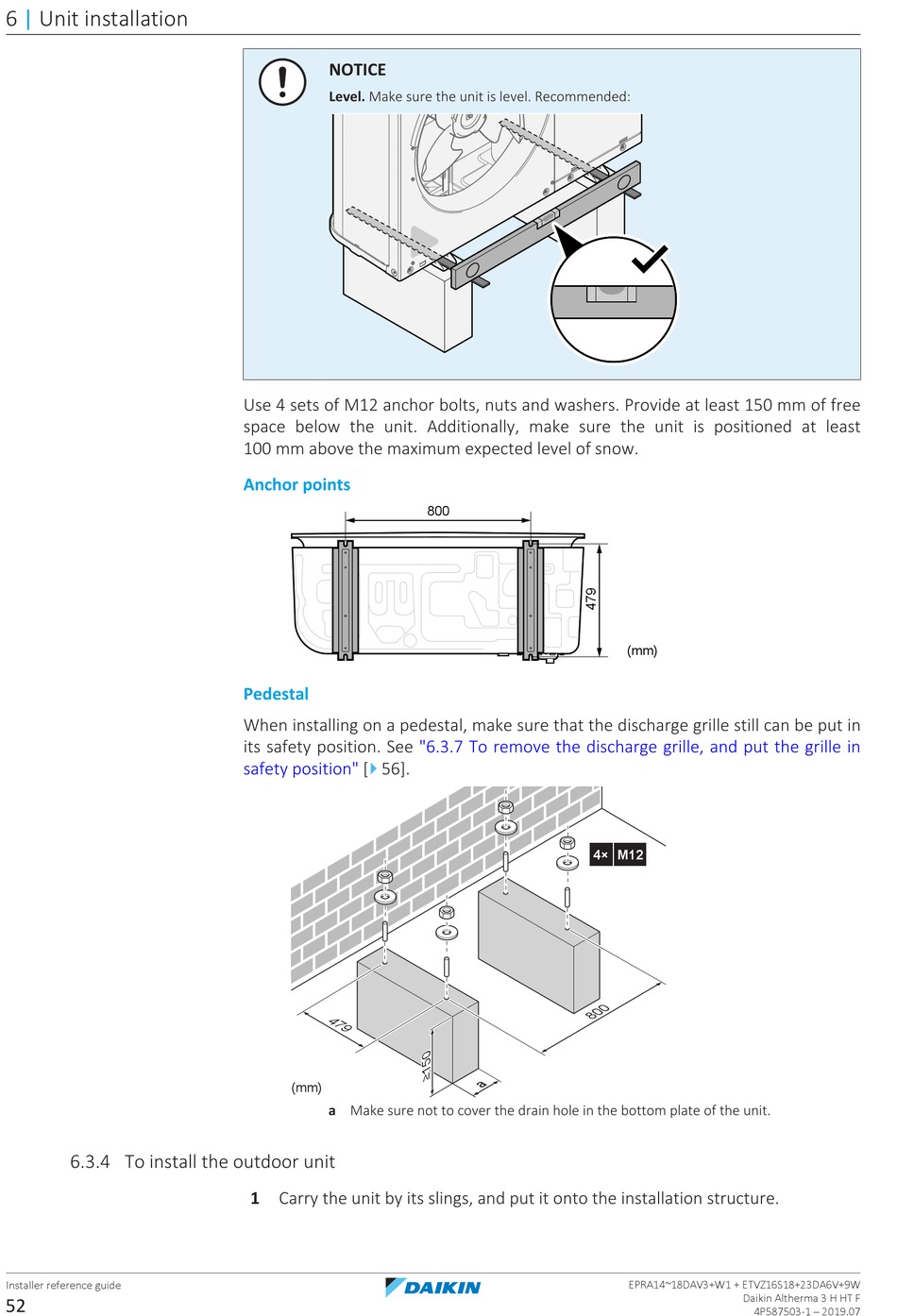

6.3.4 To install the outdoor unit

Installer reference guide
52
NOTICE
Level. Make sure the unit is level. Recommended:
Use 4 sets of M12 anchor bolts, nuts and washers. Provide at least 150 mm of free
space below the unit. Additionally, make sure the unit is positioned at least
100 mm above the maximum expected level of snow.
Anchor points
Pedestal
When installing on a pedestal, make sure that the discharge grille still can be put in
its safety position. See
4
safety position" [ 56].
(mm)
a Make sure not to cover the drain hole in the bottom plate of the unit.
1 Carry the unit by its slings, and put it onto the installation structure.
800
"6.3.7 To remove the discharge grille, and put the grille in
(mm)
4× M12
EPRA14~18DAV3+W1 + ETVZ16S18+23DA6V+9W
Daikin Altherma 3 H HT F
4P587503-1 – 2019.07
