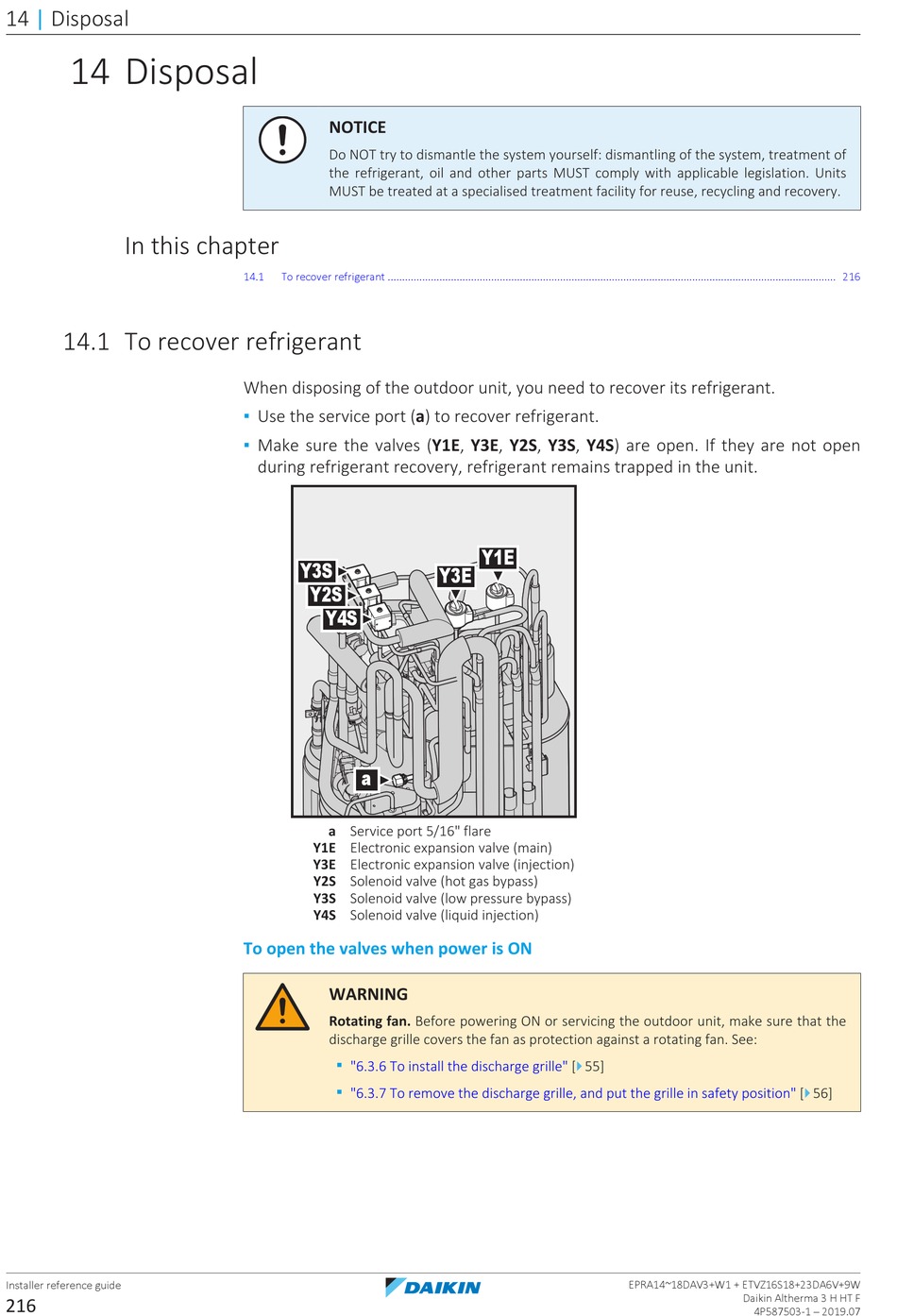

Disposal

14 Disposal
In this chapter

14.1 To recover refrigerant

Installer reference guide
216
NOTICE
Do NOT try to dismantle the system yourself: dismantling of the system, treatment of
the refrigerant, oil and other parts MUST comply with applicable legislation. Units
MUST be treated at a specialised treatment facility for reuse, recycling and recovery.
14.1 To recover refrigerant ............................................................................................................................................................ 216
When disposing of the outdoor unit, you need to recover its refrigerant.
▪ Use the service port (a) to recover refrigerant.
▪ Make sure the valves (Y1E, Y3E, Y2S, Y3S, Y4S) are open. If they are not open
during refrigerant recovery, refrigerant remains trapped in the unit.
Y3S
Y2S
Y4S
a
a Service port 5/16" flare
Y1E Electronic expansion valve (main)
Y3E Electronic expansion valve (injection)
Y2S Solenoid valve (hot gas bypass)
Y3S Solenoid valve (low pressure bypass)
Y4S Solenoid valve (liquid injection)
To open the valves when power is ON
WARNING
Rotating fan. Before powering ON or servicing the outdoor unit, make sure that the
discharge grille covers the fan as protection against a rotating fan. See:
▪
"6.3.6 To install the discharge
▪
"6.3.7 To remove the discharge grille, and put the grille in safety
Y1E
Y3E
4
grille" [ 55]
position" [
EPRA14~18DAV3+W1 + ETVZ16S18+23DA6V+9W
Daikin Altherma 3 H HT F
4P587503-1 – 2019.07
4 56]
