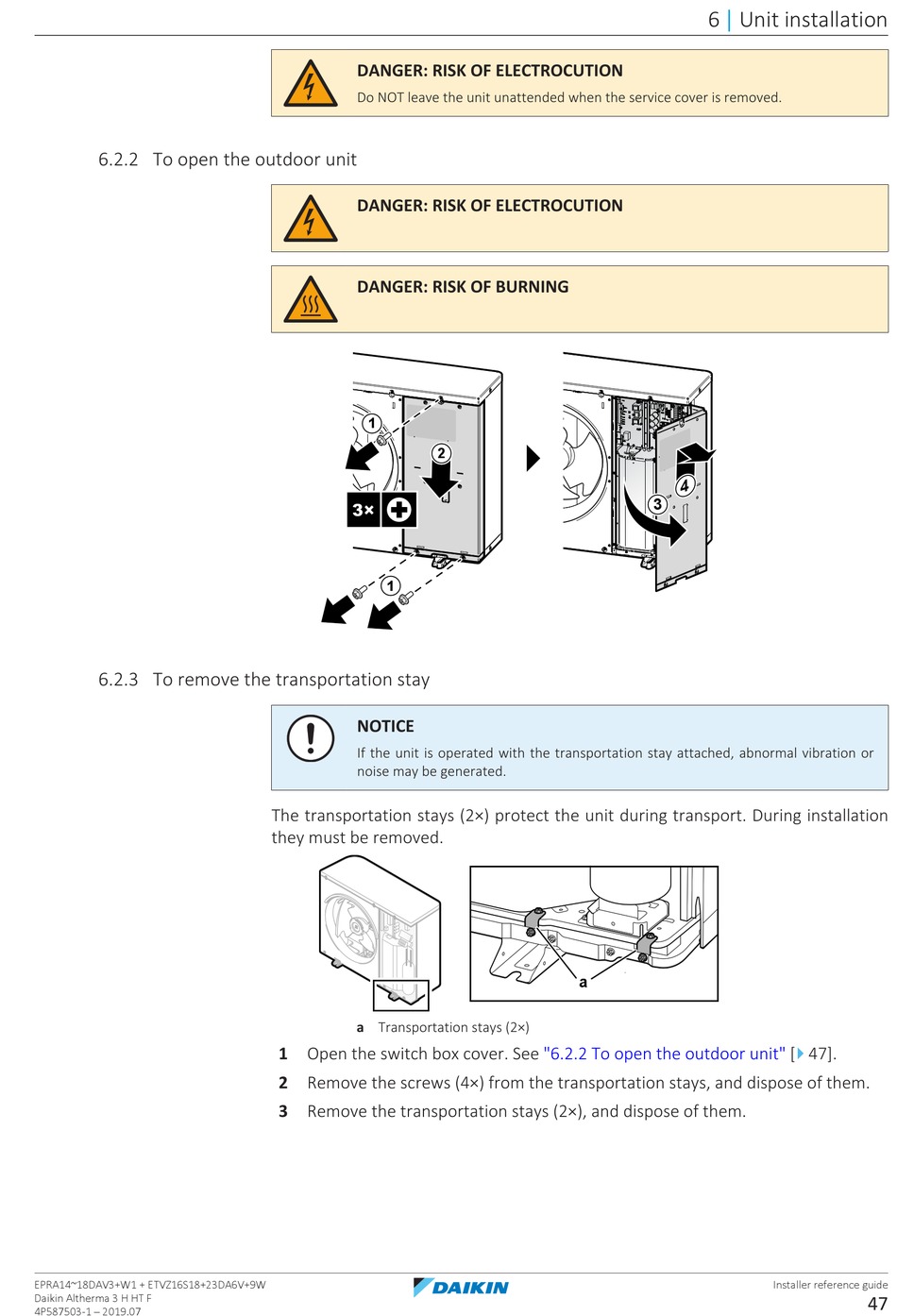

6.2.2 To open the outdoor unit

6.2.3 To remove the transportation stay

EPRA14~18DAV3+W1 + ETVZ16S18+23DA6V+9W
Daikin Altherma 3 H HT F
4P587503-1 – 2019.07
DANGER: RISK OF ELECTROCUTION
Do NOT leave the unit unattended when the service cover is removed.
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING
1 1
2 2
3×
1 1
NOTICE
If the unit is operated with the transportation stay attached, abnormal vibration or
noise may be generated.
The transportation stays (2×) protect the unit during transport. During installation
they must be removed.
a Transportation stays (2×)
1 Open the switch box cover. See
2 Remove the screws (4×) from the transportation stays, and dispose of them.
3 Remove the transportation stays (2×), and dispose of them.
6
3 3
a
"6.2.2 To open the outdoor
Unit installation
|
4
unit" [ 47].
