MT2834BLR Owner's Manual
2.4

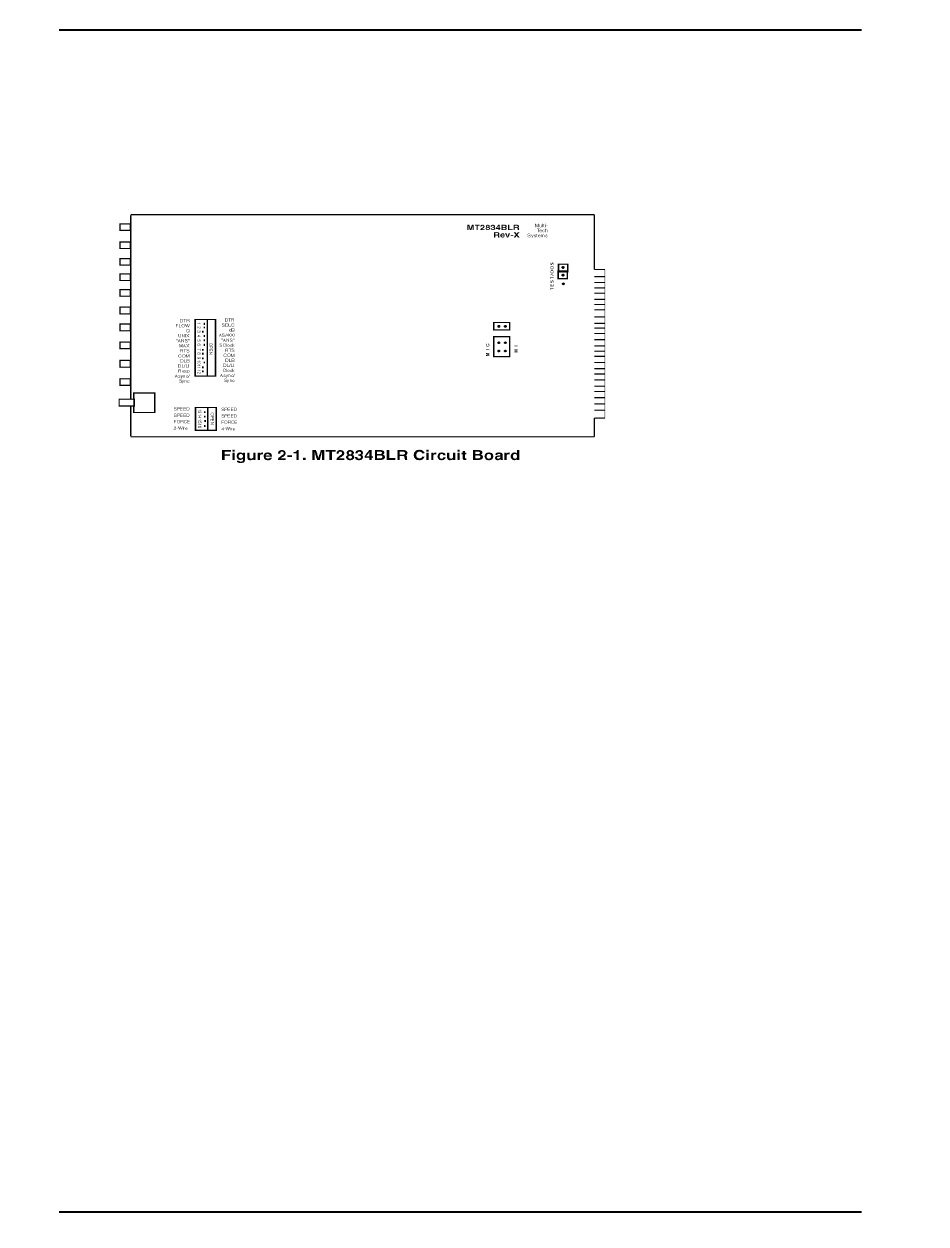

PC Board Controls
The MT2834BLR is designed on a single printed circuit board. This board contains sixteen DIP-
Switches. There is a two-position"Out of Service" (OOS) toggle switch that extends from the front of
the modem circuit card. There is also a two-position MI/MIC berg jumper and TEST/OOS berg
jumper.
The sixteen DIP-Switches and two berg jumpers control various modem options or set default values
for the MT2834BLR's Command mode. There is a difference in how several of the switches operate
depending on whether you are in synchronous or asynchronous mode (DIP-Switch #12).
Most communications software packages have installation procedures of their own, which call for
certain modem DIP-Switch settings. If you are using a package other than MultiExpress, follow the
software's instructions.
12
