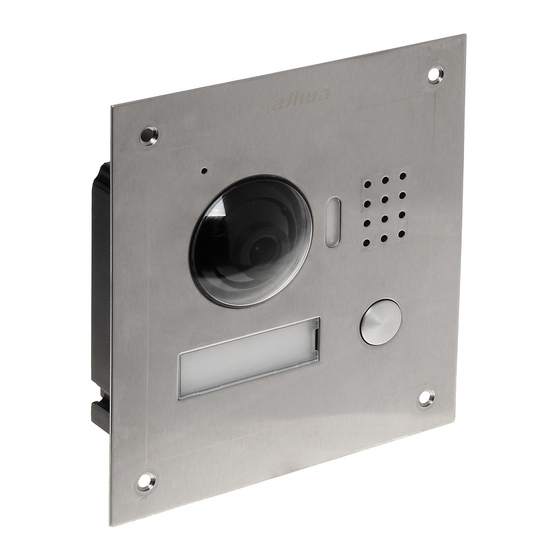

Dahua VTO2000A Quick Start Manual
  1. Manuals
  2. Brands
  3. Dahua Manuals
  4. Intercom System
  5. VTO2000A Series
  6. Quick start manual

Dahua VTO2000A Quick Start Manual

Ip villa system
Hide thumbs Also See for VTO2000A:
Table of Contents

Advertisement

Quick Links

IP Villa System
Quick Start Guide
Version 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTO2000A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTO2000A

Summary of Contents for Dahua VTO2000A

  • Page 1 IP Villa System Quick Start Guide Version 1.0.0...
  • Page 3 Welcome Thank you for purchasing our device! This quick start guide will help you become familiar with our device in a very short time. Before installation and operation, please read the following safeguard and warning carefully! Important Safeguard and Warning 1．Electrical safety All installation and operation here should conform to your local electrical safety codes.

  • Page 4: Table Of Contents

    2.5 Change Villa VTO IP via VTH ..............9 2.6 Check Results ..................12 Network Camera Settings ................. 13 3.1 VTH Settings .................... 13 3.2 Add Dahua Network Camera ..............13 3.3 Add ONVIF Network Camera ..............13 3.4 Check Results ..................14 3.5 VTO Settings .................... 14 3.5.1 Add Dahua Network Camera ............

  • Page 5: Typical Connection

    When a visitor press call button on VTO, multiple VTHs will ring at the same time. You can call, hang up, and unlock on any of these VTHs. 1.1 IP Connection Mode 1 This mode is for VTO2000A/VTH1550CH/VTH1560B. VTH has one master VTH and up to three extension VTHs. See Figure 1-1. Figure 1-1 1.2 IP Connection Mode 2...

  • Page 6: General Settings

    2 General Settings The VTO default IP address is 192.168.1.110. The default WEB account is: user name: admin, password: admin. The VTH default IP address is 192.168.1.109, the project password is 002236. After the connection, please make sure the VTH and VTO connection are OK. Please change the default password after your first login.
  • Page 7 Figure 2-3 Now you can set local information. See Figure 2-4. Figure 2-4 Now you can add digital VTH. System has added room 9901 by default. See Figure 2-5. Figure 2-5...

  • Page 8: Master Digital Vth Settings

    Set network information. See Figure 2-6. Figure 2-6 2.3 Master Digital VTH Settings When device is booting up, you can set device language. System supports English, Russian, Italian、French, Germany, Dutch, Spanish, and Portuguese by default. See Figure 2-7. After device booted up, you can go to Settings->Language->002236 to change language again.
  • Page 9 Set current VTH as the master VTH. See Figure 2-8. Figure 2-8 Click Network on the right pane, and then input master VTO name, IP address and enable current function. Note: Click to go to the extension VTO interface; you can set extension VTO information.

  • Page 10: Digital Extension Vth Settings

    2.4 Digital Extension VTH Settings On the extension VTH menu, from System->Project, you can input project password (002236) to go to the project interface. Set current VTH as extension VTH. Step1 Press Product Info, See Figure 2-10 Step2 Press Master, Master icon becomes Extention icon. Step3 Set Room No.

  • Page 11: Change Villa Vto Ip Via Vth

    Note Please make sure the status is ON. The extension VTH can synchronize information with the master VTH. If one master VTH has several extension VTOs, please enable status as on. See Figure 2-12. Figure 2-12 2.5 Change Villa VTO IP via VTH On the digital VTH interface, from Settings->Project->002236, select Search device.
  • Page 12 Change VTO IP address as 192.168.1.11. See Figure 2-14. Figure 2-14 Click Add to add VTO settings. See Figure 2-15. Figure 2-15...
  • Page 13 Use 192.168.1.11 of the VTO to change default setup 192.168.1.110, change status as on. See Figure 2-16. Figure 2-16 Now you can see the following interface. See Figure 2-17. Figure 2-17...

  • Page 14: Check Results

    Or you can go to the Network interface to view the add result. See Figure 2-18. Figure 2-18 2.6 Check Results  On the indoor VTO, click monitor button, you can view the situation of the VTO.  On the villa VTO, click the Call button, you can call any of the VTHs. ...

  • Page 15: Network Camera Settings

    3 Network Camera Settings 3.1 VTH Settings The VTH supports 8 network cameras. It supports product from Dahua and ONVIF protocol. 3.2 Add Dahua Network Camera On the VTH menu, from Settings-> Local IPC, input network camera name, IP address, port (5000), protocol (local) and then click Save button.

  • Page 16: Check Results

    See Figure 3-3. Figure 3-3 3.5 VTO Settings For the VTO, it supports 24 network cameras. It supports product from Dahua. 3.5.1 Add Dahua Network Camera Please refer to the following interface. See Figure 3-4.

  • Page 17: Cell Phone Settings

    4 Cell Phone Settings 4.1 VTO Settings Go to the Network interface, set VTO IP address so that it can connect to the network. Set local DNS address. See Figure 4-1. Figure 4-1 Go to P2P interface; check the box to enable the P2P function. Please wait until the status becomes on.
  • Page 18 Use the cell phone to scan the QR code of VTO on the device’s label or Web. See Figure 4-4 and Figure 4-5. Figure 4-4 Figure 4-5...

  • Page 19: Check Results

    Give a name to VTO first. Click the detect VTO. You can view the corresponding video from the VTO after it detects the device. Figure 4-6 4.3 Check Results When the VTO is calling the VTH, you can see a push message on your cell phone. Open the message;...

  • Page 20: Installation

    5 Installation 5.1 VTO Installation This VTO2000A series product supports direction installation and embedded in wall installation. 5.1.1 Direct Installation Install metal bracket into the groove on wall. Secure 4 fasten screw (ST4.2×25), and fix metal bracket on wall. See Figure 5- .

  • Page 21: Embedded In Wall

    Figure 5- 1 5.1.2 Embedded in Wall Dig a hole on wall, its dimension is 117*128*80(mm).See Figure 5- . Figure 5- 4 Embed metal bracket into wall until its four peaks lean against the wall. See Figure 5- 2. Figure 5-5...
  • Page 22 Figure 5- 2 Align the device on metal bracket according to screw hole. Fasten screws (M3×8 Cross recessed countersunk head tail machine screws --- galvanizing white), and fix device on metal bracket. See Figure 5- 3. Component Name Icon M3×8 Cross recessed countersunk head tail machine screws --- galvanizing white M3×6 Hex slot pan head tail machine screws --- galvanizing white...

  • Page 23: Vth Installation

    5.2 VTH Installation Important The center of the device shall be 1400mm-1600mm height from the ground. 5.2.1 Installation Mode 1 Secure the installation bracket on the wall. Use three M4×30 screws to fix. Fix the device on the installation bracket and then use the clip to secure. See Figure 5-1. Component Name Icon M4×30 crosshead pan head...

  • Page 24: Electric Lock And Magnetic Door Lock

    6 Electric Lock and Magnetic Door Lock 6.1 Electric Door Lock When connect the VTO to the electric door lock, connect the positive end of the electric door lock to the NO of the VTO, connect the negative end of the electric door lock to the public end. When connect to the on-off button, connect one end of the on-off button to the one end of the on- off button of the VTO, and then connect the other end of the on-off button to the GND of VTO.

  • Page 25: Appendix Specifications

    7 Appendix Specifications Model VTH1550CH/VTH1550CHW-2 VTH1560B/VTH1560BW Main processor Embedded micro controller Embedded LINUX OS Video Video compression H.264 standard Resolution 800×480 Audio Input All-direction microphone Output Built-in speaker Audio talk Dual-way bidirectional talk Display Monitor dimensions 7-inch TFT true color screen Operation mode Input Touch buttons...
  • Page 26 Model VTO2000A/VTO2000A-2 Main Process Embedded micro controller System Embedded Linux OS Video H.264 Compression Standard Video Input/Sensor Megapixel CMOS HD camera Night Vision Support Input All-direction microphone Audio Output Built-in speaker Talk Support bidirectional talk Input Single key input Operation...
