  • Page 1 Поставщик систем безопасности TELECAMERA.RU Villa Door Station (VTO) Baseline (Version 4.3) Quick Start Guide V1.0.0...

  • Page 2: Foreword

    Поставщик систем безопасности TELECAMERA.RU Foreword General This manual introduces the structure, mounting process, and basic configuration of the door station (VTO). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
  • Page 3 Поставщик систем безопасности TELECAMERA.RU If there is any uncertainty or controversy, please refer to our final explanation. ...

  • Page 4: Important Safeguards And Warnings

    Поставщик систем безопасности TELECAMERA.RU Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Do not place and install the device in an area exposed to direct sunlight or near heat ...

  • Page 5: Table Of Contents

    Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III 1 Network Diagram ........................... 1 2 Appearance ............................2 VTO2101E-P ..........................2 2.1.1 Front Panel ......................... 2 2.1.2 Rear Panel .......................... 3 VTO3211D-P ..........................3 2.2.1 Front Panel ......................... 3 2.2.2 Rear Panel ..........................

  • Page 6: Network Diagram

    Поставщик систем безопасности TELECAMERA.RU Network Diagram...

  • Page 7: Appearance

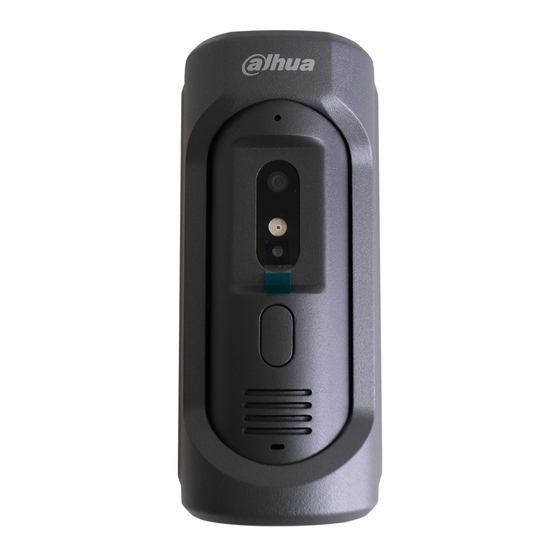

    Поставщик систем безопасности TELECAMERA.RU Appearance VTO2101E-P 2.1.1 Front Panel Figure 2-1 VTO2101E-P Table 2-1 Front panel description Name Description Inputs audio. Camera Monitors doorway area. IR illunimation Provides extra IR light for the camera when it light is dark. Light sensor Detects ambient lighting condition.

  • Page 8: Rear Panel

    Поставщик систем безопасности TELECAMERA.RU 2.1.2 Rear Panel Figure 2-2 VTO2101E-P Table 2-2 Rear panel description Name Description Network port Connected to the network with network cables. RS-485 ports See Figure 2-3 and Table 2-3. Cable tray You can thread cables through the cable tray.

  • Page 9: Rear Panel

    Поставщик систем безопасности TELECAMERA.RU Figure 2-4 VTO3211D-P Table 2-4 Front panel description Name Description IR illumination Provides extra IR light for the camera when light it is dark. Camera Monitors doorway area. Speaker Outputs audio. Press the button to call VTH or the Call button management center.
  • Page 10 Поставщик систем безопасности TELECAMERA.RU Table 2-5 Rear panel description Name Description Cable ports See Figure 2-6 and Table 2-6. Cable tray You can thread the cable through the cable tray. Figure 2-6 Cable connection Table 2-6 Cable port description Name Name ALM_COM DOOR_FEED...

  • Page 11: Vto2211G/Vto1201G

    Поставщик систем безопасности TELECAMERA.RU VTO2211G/VTO1201G 2.3.1 Front Panel Figure 2-7 Front panel of VTO2211G/VTO1201G Table 2-7 Front panel description Name Description Camera Press the button to call indoor monitor (VTH) or the management center. Indicator light. Off: The device in standby mode; ...

  • Page 12: Rear Panel

    Поставщик систем безопасности TELECAMERA.RU 2.3.2 Rear Panel Figure 2-8 Rear panel of VTO2211G/VTO1201G Table 2-8 Rear panel description Description Description Network port Ports SD card cover Tamper button Figure 2-9 VTO2211G cable connection...
  • Page 13 Поставщик систем безопасности TELECAMERA.RU Table 2-9 Port description Name Name Alarm input device DOOR1_NC Alarm output device Not available DC_IN- DOOR1_COM DC_IN+ Not available ALARM_IN DOOR1_NO +12V_OUT Not available Not available ALARM_NO DOOR1_FB RS485B Not available ALARM_COM RS485A Not available Not available DOOR1_PUSH Figure 2-10...
  • Page 14 Поставщик систем безопасности TELECAMERA.RU Figure 2-11 Connecting lock cables Table 2-11 Port description Name Name DC_IN- DOOR1_COM DC_IN+ Not available ALARM_IN DOOR1_NO +12V_OUT Not available Not available ALARM_NO DOOR1_FB RS485B Not available ALARM_COM RS485A Not available Not available DOOR1_PUSH DOOR1_NC Magnetic lock Not available Electric lock...

  • Page 15: Installation

    Поставщик систем безопасности TELECAMERA.RU Installation Notice Do not install the door station (VTO) at places with condensation, high temperature, grease  or dust, chemical corrosion, direct sunlight, or zero shelter.  The installation and adjustment must be finished by professionals, and do not disassemble the VTO.

  • Page 16: Configuration

    Поставщик систем безопасности TELECAMERA.RU Configuration This chapter introduces how to initialize, connect, and make primary configurations to door stations (VTO) and indoor monitors (VTH) to realize basic functions, including device management, calling, and monitoring. For details, see the user manual. Configuration Process Before configuration, check each device and make sure there is no short circuit or open circuit.

  • Page 17: Configuring Door Station (Vto) Number

    Поставщик систем безопасности TELECAMERA.RU Step 2 Open the internet browser on the PC, then enter the default IP address of the door station (VTO) in the address bar, and then press Enter. Figure 4-1 Device initialization Step 3 Enter and confirm the password, and then click Next. The email setting interface is displayed.

  • Page 18: Configuring Network Parameters

    Поставщик систем безопасности TELECAMERA.RU Step 1 Log in to the web interface of the door station (VTO), and then the main interface is displayed. Figure 4-3 Main interface Step 2 Select Local Setting > Basic. Figure 4-4 Device properties Step 3 In the No.

  • Page 19: Configuring Sip Server

    Поставщик систем безопасности TELECAMERA.RU The door station (VTO) will restart, and you need to modify the IP address of your PC to the same network segment as the door station (VTO) to log in again. 4.3.4 Configuring SIP Server The SIP server is required in the network to transmit intercom protocol, and then all the door station (VTO) and indoor monitor (VTH) connected to the same SIP server can make video calls among each other.

  • Page 20: Configuring Call No. And Group Call

    Поставщик систем безопасности TELECAMERA.RU Parameter Description SIP Server Username The user name and password for the web SIP Server Password interface of the SIP server.  If other servers work as SIP server Select Express/DSS in the Server Type list, and then see the corresponding manual for the detailed configuration.
  • Page 21 Поставщик систем безопасности TELECAMERA.RU Figure 4-8 VTO No. management Step 2 Click Add. Figure 4-9 Add door stations (VTO) Step 3 Configure the parameters, and be sure to add the SIP server itself too. See Table 4-2. Table 4-2 Add door stations (VTO) Parameter Description The door station (VTO) number you configured for the target...

  • Page 22: Adding Room Number

    Поставщик систем безопасности TELECAMERA.RU Step 4 Click Save. 4.3.7 Adding Room Number You can add the planned room number to the SIP server, and then configure the room number on indoor monitors (VTH) to connect them to the network. This section applies to the condition in which a door station (VTO) works as SIP server, and if you use other servers as SIP server, see the corresponding manual for the detailed configuration.
  • Page 23 Поставщик систем безопасности TELECAMERA.RU Figure 4-11 Add single room number Step 3 Configure room information. See Table 4-3. Table 4-3 Room information Parameter Description First Name Last Name Enter the information you need to differentiate each room. Nick Name The room number you planned. If you use multiple indoor monitors (VTH), the room ...

  • Page 24: Verifying Configuration

    Поставщик систем безопасности TELECAMERA.RU Verifying Configuration 4.4.1 Calling VTH from VTO Press the call button on the door station (VTO) to start a call with the indoor monitor (VTH). Figure 4-12 Call screen on the VTH to answer the call. 4.4.2 Watching Monitoring Videos on the VTH Step 1 In the main interface of the VTH, select Monitor >...
  • Page 25 Поставщик систем безопасности TELECAMERA.RU Figure 4-14 Watching monitoring videos...

  • Page 26: App Installation And Adding Device

    Поставщик систем безопасности TELECAMERA.RU App Installation and Adding Device Scan the following QR code to download and install the app. Before adding the door station (VTO) to the gDMSS Plus, you need to modify IP address of the door station (VTO), make sure that the door station (VTO) and the router are connected to the same network, and connect the door station (VTO) to the power source.
  • Page 27 Поставщик систем безопасности TELECAMERA.RU Figure 5-2 Home Step 5 on the Home interface. The Device Manager interface is displayed. Step 6 on the upper right corner of the Device Manager interface. Figure 5-3 Device manager...

  • Page 28: Add Through Wired Network

    Поставщик систем безопасности TELECAMERA.RU 5.1.2 Adding through Wired Network Step 1 Tap IP/Domain on Figure 5-3. The Add Device interface is displayed. Figure 5-4 Add device Step 2 Tap VTO on the Add Device interface. The Add Device interface is displayed. Figure 5-5 Add device Step 3...

  • Page 29: Add Through Soft Access Point (Ap)

    Поставщик систем безопасности TELECAMERA.RU The door station (VTO) is added. You can watch videos captured by the door station (VTO), call the door station (VTO), unlock doors when there is call from the door station (VTO), and more. Figure 5-6 Door 5.1.3 Adding through Soft Access Point (AP) Step 1...
  • Page 30 Поставщик систем безопасности TELECAMERA.RU Figure 5-7 Mobile phone WLAN Step 5 on the upper right corner of the Device Manager interface (see Figure 5-3). Step 6 Tap SN/Scan on Figure 5-3.
  • Page 31 Поставщик систем безопасности TELECAMERA.RU Figure 5-8 Scan the QR code Step 7 Scan the QR code at the rear cover of the door station. The QR code can also be found in Network > Basic > P2P on the web interface, Step 8 Tap Next.
  • Page 32 Поставщик систем безопасности TELECAMERA.RU Figure 5-9 Add device Step 9 on the upper right corner.
  • Page 33 Поставщик систем безопасности TELECAMERA.RU Figure 5-10 Select network configuration mode Step 10 Select Switch to AP Configuration. Step 11 Tap Next. Figure 5-11 Set phone network Step 12 Tap Set.
  • Page 34 Поставщик систем безопасности TELECAMERA.RU Figure 5-12 Select a Wi-Fi Step 13 Tap a Wi-Fi name. Figure 5-13 Enter Wi-Fi password Step 14 Enter the Wi-Fi password. Step 15 Tap Next.
  • Page 35 Поставщик систем безопасности TELECAMERA.RU Figure 5-14 Add device Step 16 Enter device name and device password (door station web login password). Step 17 The door station (VTO) is added. You can watch videos captured by the door station (VTO), call the door station (VTO), unlock doors when there is call from the door station (VTO), and more.
  • Page 36 Поставщик систем безопасности TELECAMERA.RU Figure 5-15 Door...

  • Page 37: Appendix 1 Cybersecurity Recommendations

    Поставщик систем безопасности TELECAMERA.RU Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
  • Page 38 Поставщик систем безопасности TELECAMERA.RU We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
  • Page 39 Поставщик систем безопасности TELECAMERA.RU suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect. Establish the 802.1x access authentication system to reduce the risk of unauthorized  access to private networks.
