Villa Door Station (VTO) Baseline
(Version 4.3)
Quick Start Guide
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTO2101E-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTO2101E-P

Summary of Contents for Dahua VTO2101E-P

  • Page 1 Villa Door Station (VTO) Baseline (Version 4.3) Quick Start Guide V1.0.0...

  • Page 2: Foreword

    Foreword General This manual introduces the structure, mounting process, and basic configuration of the door station (VTO). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
  • Page 3 If there is any uncertainty or controversy, please refer to our final explanation. ⚫...

  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Do not place and install the device in an area exposed to direct sunlight or near heat ⚫...
  • Page 5 equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

  • Page 6: Table Of Contents

    Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III 1 Network Diagram ........................... 1 2 Appearance ............................2 VTO2101E-P ..........................2 2.1.1 Front Panel ......................... 2 2.1.2 Rear Panel .......................... 3 VTO3211D-P ..........................3 2.2.1 Front Panel ......................... 3 2.2.2 Rear Panel ..........................

  • Page 7: Network Diagram

    Network Diagram...

  • Page 8: Appearance

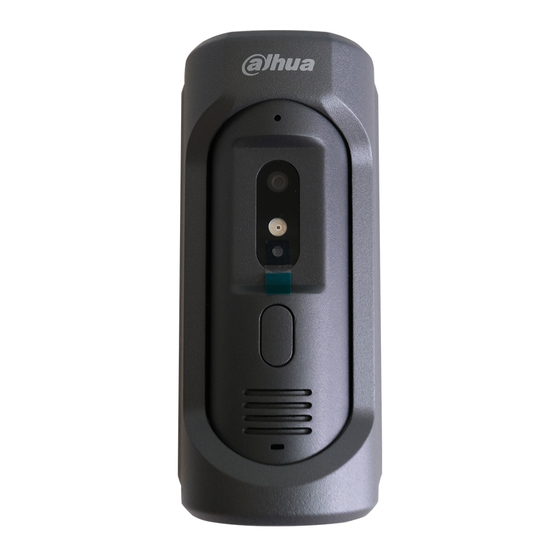

    Appearance VTO2101E-P 2.1.1 Front Panel VTO2101E-P Table 2-1 Front panel description Name Description Inputs audio. Camera Monitors doorway area. IR illunimation Provides extra IR light for the camera when it light is dark. Light sensor Detects ambient lighting condition. Press the button to call VTH or the Call button management center.

  • Page 9: Rear Panel

    2.1.2 Rear Panel VTO2101E-P Table 2-2 Rear panel description Name Description Network port Connected to the network with network cables. RS-485 ports See Figure 2-3 and Table 2-3. Cable tray You can thread cables through the cable tray. Cable connection...

  • Page 10: Rear Panel

    VTO3211D-P Table 2-4 Front panel description Name Description IR illumination Provides extra IR light for the camera when light it is dark. Camera Monitors doorway area. Speaker Outputs audio. Press the button to call VTH or the Call button management center. Inputs audio.
  • Page 11 Table 2-5 Rear panel description Name Description Cable ports See Figure 2-6 and Table 2-6. Cable tray You can thread the cable through the cable tray. Cable connection Table 2-6 Cable port description Name Name ALM_COM DOOR_FEED ALM_NO DOOR_NC ALM_IN DOOR_COM RS485B DOOR_NO...

  • Page 12: Vto2211G/Vto1201G

    VTO2211G/VTO1201G 2.3.1 Front Panel Front panel of VTO2211G/VTO1201G Table 2-7 Front panel description Name Description Camera Press the button to call indoor monitor (VTH) or the management center. Indicator light. Off: The device in standby mode; Solid green: door station (VTO) making a call; Solid blue: door station (VTO) during a call;...

  • Page 13: Rear Panel

    2.3.2 Rear Panel Rear panel of VTO2211G/VTO1201G Table 2-8 Rear panel description Description Description Network port Ports SD card cover Tamper button VTO2211G cable connection...
  • Page 14 Table 2-9 Port description Name Name Alarm input device DOOR1_NC Alarm output device Not available DC_IN- DOOR1_COM DC_IN+ Not available ALARM_IN DOOR1_NO +12V_OUT Not available Not available ALARM_NO DOOR1_FB RS485B Not available ALARM_COM RS485A Not available Not available DOOR1_PUSH VTO1201G cable connection Table 2-10 Port description Name Name...
  • Page 15 Connecting lock cables Table 2-11 Port description Name Name DC_IN- DOOR1_COM DC_IN+ Not available ALARM_IN DOOR1_NO +12V_OUT Not available Not available ALARM_NO DOOR1_FB RS485B Not available ALARM_COM RS485A Not available Not available DOOR1_PUSH DOOR1_NC Magnetic lock Not available Electric lock...

  • Page 16: Installation

    Installation Notice Do not install the door station (VTO) at places with condensation, high temperature, grease ⚫ or dust, chemical corrosion, direct sunlight, or zero shelter. The installation and adjustment must be finished by professionals, and do not disassemble ⚫ the VTO.

  • Page 17: Configuration

    Configuration This chapter introduces how to initialize, connect, and make primary configurations to door stations (VTO) and indoor monitors (VTH) to realize basic functions, including device management, calling, and monitoring. For details, see the user manual. Configuration Process Before configuration, check each device and make sure there is no short circuit or open circuit. Plan IP address for each device, and also plan the apartment number and room number you need.

  • Page 18: Configuring Door Station (Vto) Number

    Open the internet browser on the PC, then enter the default IP address of the door station (VTO) in the address bar, and then press Enter. Device initialization Enter and confirm the password, and then click Next. The email setting interface is displayed. Select the Email check box, and then enter your Email address.

  • Page 19: Configuring Network Parameters

    Log in to the web interface of the door station (VTO), and then the main interface is displayed. Main interface Select Local Setting > Basic. Device properties In the No. input box, enter the door station (VTO) number you planned for the door station (VTO) you are operating, and then click Confirm to save.

  • Page 20: Configuring Sip Server

    The door station (VTO) will restart, and you need to modify the IP address of your PC to the same network segment as the door station (VTO) to log in again. 4.3.4 Configuring SIP Server The SIP server is required in the network to transmit intercom protocol, and then all the door station (VTO) and indoor monitor (VTH) connected to the same SIP server can make video calls among each other.

  • Page 21: Configuring Call No. And Group Call

    Parameter Description SIP Server Username The user name and password for the web interface of the SIP server. SIP Server Password If other servers work as SIP server ⚫ Select Express/DSS in the Server Type list, and then see the corresponding manual for the detailed configuration.
  • Page 22 VTO No. management Click Add. Add door stations (VTO) Configure the parameters, and be sure to add the SIP server itself too. See Table 4-2. Table 4-2 Add door stations (VTO) Parameter Description The door station (VTO) number you configured for the target Rec No.

  • Page 23: Adding Room Number

    Click Save. 4.3.7 Adding Room Number You can add the planned room number to the SIP server, and then configure the room number on indoor monitors (VTH) to connect them to the network. This section applies to the condition in which a door station (VTO) works as SIP server, and if you use other servers as SIP server, see the corresponding manual for the detailed configuration.
  • Page 24 Add single room number Configure room information. See Table 4-3. Table 4-3 Room information Parameter Description First Name Last Name Enter the information you need to differentiate each room. Nick Name The room number you planned. If you use multiple indoor monitors (VTH), the room ⚫...

  • Page 25: Verifying Configuration

    Verifying Configuration 4.4.1 Calling VTH from VTO Press the call button on the door station (VTO) to start a call with the indoor monitor (VTH). Call screen on the VTH to answer the call. 4.4.2 Watching Monitoring Videos on the VTH In the main interface of the VTH, select Monitor >...
  • Page 26 Watching monitoring videos...

  • Page 27: App Installation And Adding Device

    App Installation and Adding Device Scan the following QR code to download and install the app. Before adding the door station (VTO) to the gDMSS Plus, you need to change IP address of the door station (VTO), make sure that the door station (VTO) and the router are connected to the same network, and connect the door station (VTO) to the power source.
  • Page 28 Home on the Home interface. The Device Manager interface is displayed. on the upper right corner of the Device Manager interface. Device manager...

  • Page 29: Add Through Wired Network

    5.1.2 Add through Wired Network Tap IP/Domain on Figure 5-3. The Add Device interface is displayed. Add device Tap VTO on the Add Device interface. The Add Device interface is displayed. Add device Enter Address (IP address of the door station (VTO)), Device Name, and Device Password.

  • Page 30: Add Through Soft Access Point (Ap)

    The door station (VTO) is added. You can watch videos captured by the door station (VTO), call the door station (VTO), unlock doors when there is call from the door station (VTO), and more. Door 5.1.3 Add through Soft Access Point (AP) Connect the door station to the power source.
  • Page 31 Mobile phone WLAN on the upper right corner of the Device Manager interface (see Figure 5-3). Tap SN/Scan on Figure 5-3.
  • Page 32 Scan the QR code Scan the QR code at the rear cover of the door station. The QR code can also be found in Network > Basic > P2P on the web interface, Tap Next.
  • Page 33 Add device on the upper right corner.
  • Page 34 Select network configuration mode Select Switch to AP Configuration. Tap Next. Set phone network Tap Set.
  • Page 35 Select a Wi-Fi Tap a Wi-Fi name. Enter Wi-Fi password Enter the Wi-Fi password. Tap Next.
  • Page 36 Add device Enter device name and device password (door station web login password). The door station (VTO) is added. You can watch videos captured by the door station (VTO), call the door station (VTO), unlock doors when there is call from the door station (VTO), and more.
  • Page 37 Door...

  • Page 38: Cybersecurity Recommendations

    Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
  • Page 39 We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
  • Page 40 suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect. Establish the 802.1x access authentication system to reduce the risk of unauthorized ⚫ access to private networks.

This manual is also suitable for:

Vto3211d-pVto2211gVto1201g
