Original instructions

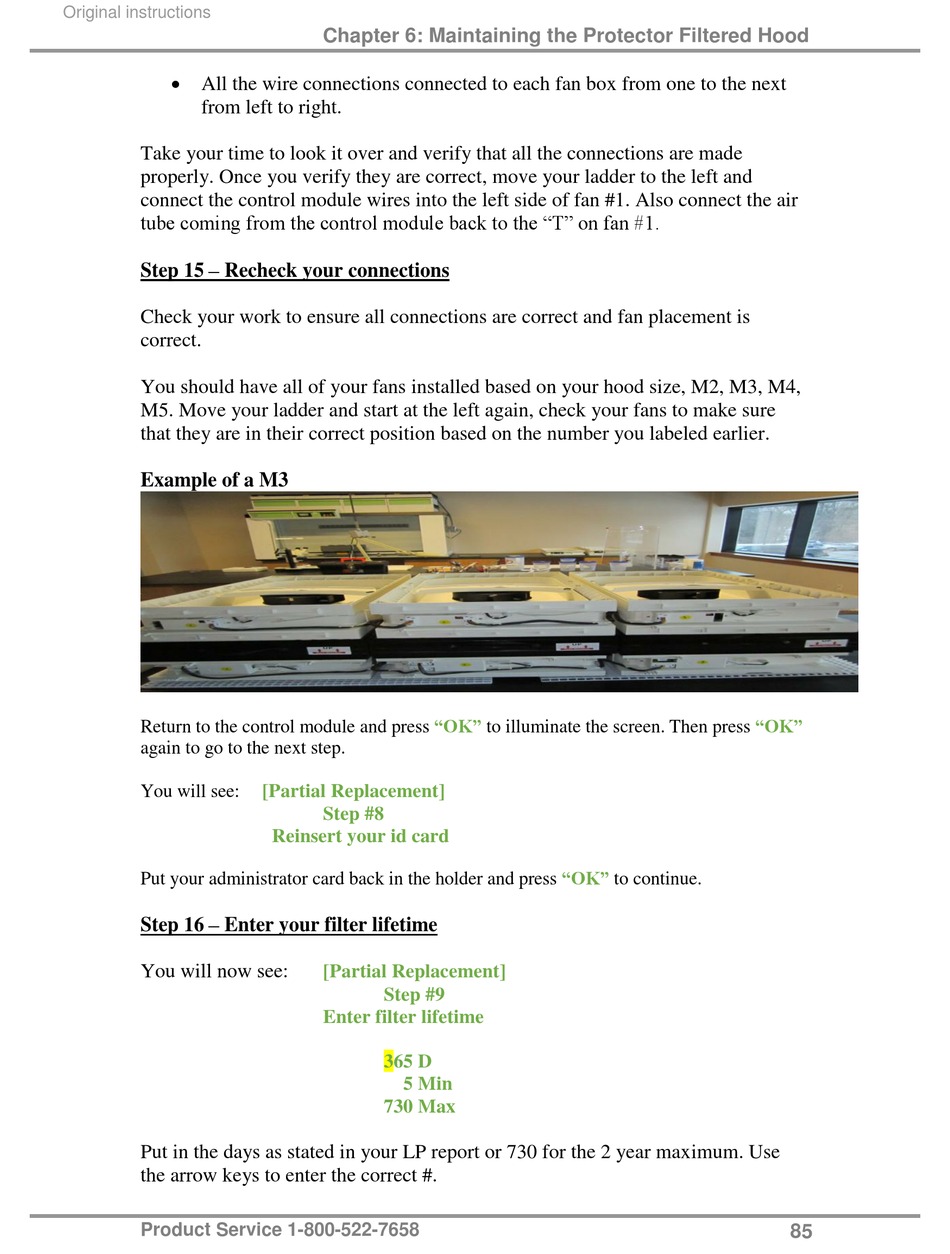

 All the wire connections connected to each fan box from one to the next
from left to right.
Take your time to look it over and verify that all the connections are made
properly. Once you verify they are correct, move your ladder to the left and
connect the control module wires into the left side of fan #1. Also connect the air
tube coming from the control module back to the "T" on fan #1.
Step 15 – Recheck your connections
Check your work to ensure all connections are correct and fan placement is
correct.
You should have all of your fans installed based on your hood size, M2, M3, M4,
M5. Move your ladder and start at the left again, check your fans to make sure
that they are in their correct position based on the number you labeled earlier.
Example of a M3
Return to the control module and press
again to go to the next step.
You will see:
Put your administrator card back in the holder and press
Step 16 – Enter your filter lifetime
You will now see:
Put in the days as stated in your LP report or 730 for the 2 year maximum. Use
the arrow keys to enter the correct #.
Product Service 1-800-522-7658
Chapter 6: Maintaining the Protector Filtered Hood
"OK"
[Partial Replacement]
Step #8
Reinsert your id card
[Partial Replacement]
Step #9
Enter filter lifetime
365 D
5 Min
730 Max
to illuminate the screen. Then press
"OK"
to continue.
"OK"
85
