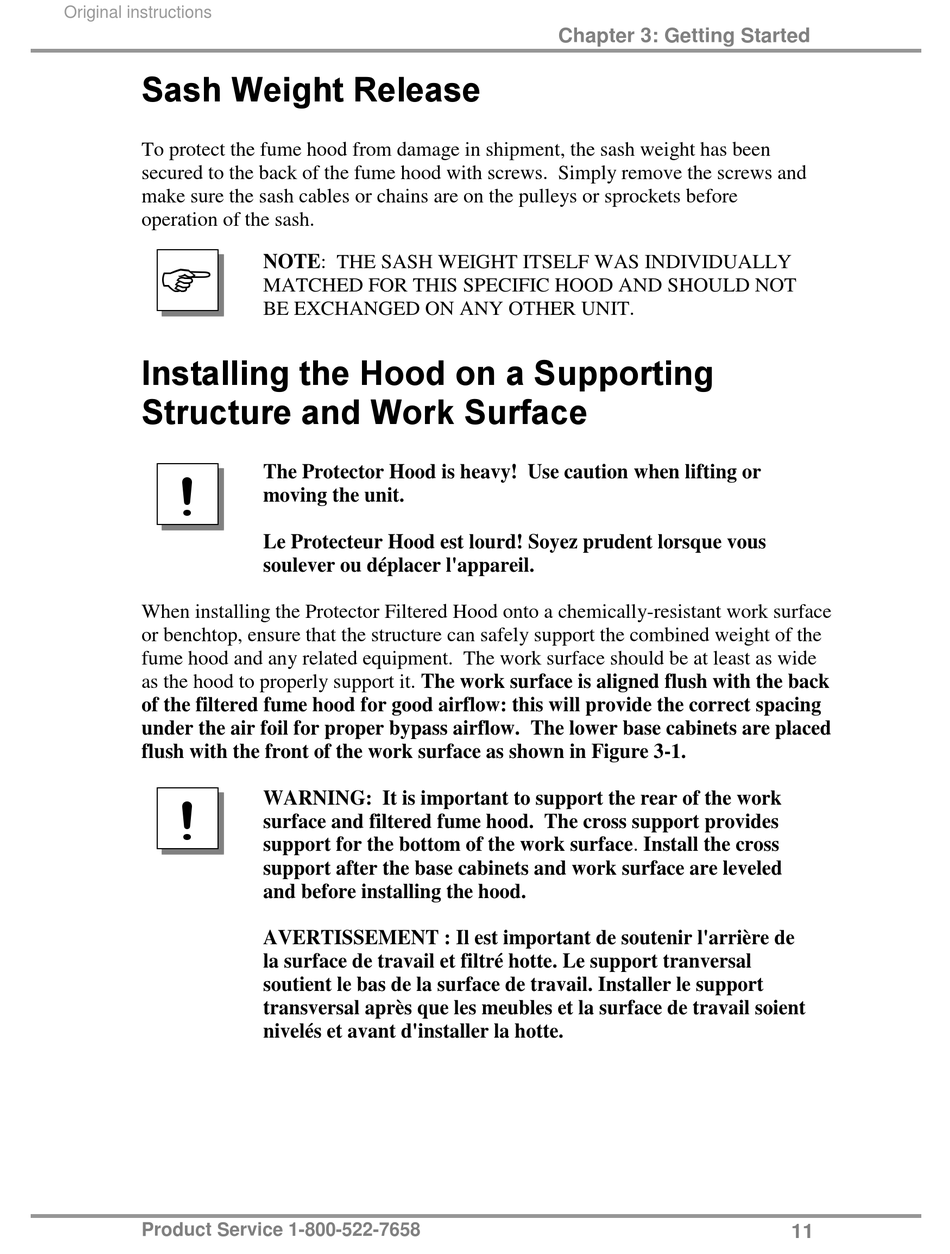

Sash Weight Release

To protect the fume hood from damage in shipment, the sash weight has been
secured to the back of the fume hood with screws. Simply remove the screws and
make sure the sash cables or chains are on the pulleys or sprockets before
operation of the sash.

Installing the Hood on a Supporting
Structure and Work Surface
!
When installing the Protector Filtered Hood onto a chemically-resistant work surface
or benchtop, ensure that the structure can safely support the combined weight of the
fume hood and any related equipment. The work surface should be at least as wide
as the hood to properly support it. The work surface is aligned flush with the back
of the filtered fume hood for good airflow: this will provide the correct spacing
under the air foil for proper bypass airflow. The lower base cabinets are placed
flush with the front of the work surface as shown in Figure 3-1.
!
Product Service 1-800-522-7658
NOTE: THE SASH WEIGHT ITSELF WAS INDIVIDUALLY
MATCHED FOR THIS SPECIFIC HOOD AND SHOULD NOT
BE EXCHANGED ON ANY OTHER UNIT.
The Protector Hood is heavy! Use caution when lifting or
moving the unit.
Le Protecteur Hood est lourd! Soyez prudent lorsque vous
soulever ou déplacer l'appareil.
WARNING: It is important to support the rear of the work
surface and filtered fume hood. The cross support provides
support for the bottom of the work surface. Install the cross
support after the base cabinets and work surface are leveled
and before installing the hood.
AVERTISSEMENT : Il est important de soutenir l'arrière de
la surface de travail et filtré hotte. Le support tranversal
soutient le bas de la surface de travail. Installer le support
transversal après que les meubles et la surface de travail soient
nivelés et avant d'installer la hotte.
