Vip-Vision SLR-B Series Quick Install Manual

Solar ip cctv surveillance
Hide thumbs Also See for SLR-B Series:

Advertisement

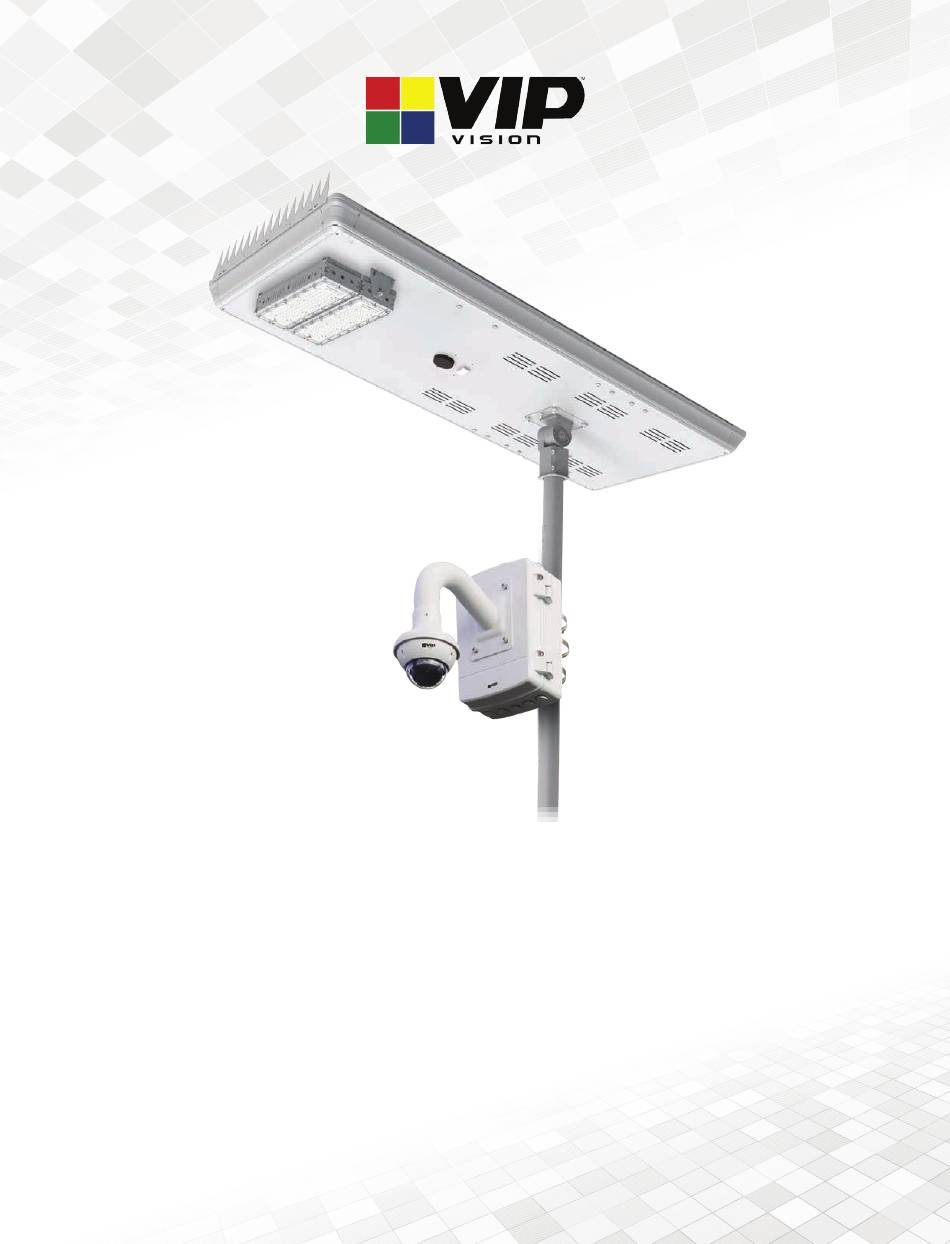

Solar IP CCTV Surveillance
SLR-B Series Quick Install Guide
Version: VIPSLRB-Q419.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLR-B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vip-Vision SLR-B Series

  • Page 1 Solar IP CCTV Surveillance SLR-B Series Quick Install Guide Version: VIPSLRB-Q419.1...
  • Page 2: Included Components

    1. Pre-Install Information Thank you for purchasing a SLR-B Series Solar Surveillance System. This install guide covers basic setup, installation and use of your surveillance system. For more information and warranty details, please visit: www.vip-vision.com 1.1 Included Components 120W or 180W Solar Panel Assembly (w/ remote control device) 4.0MP Mini PTZ Dome Camera...
  • Page 3: Camera Information

    1.2 Camera Information Professional Series 4.0MP 4x Zoom Mini PTZ Dome Note: Camera has been preinstalled with the supplied 128GB microSD card and has been preconfigured to record 4.0MP (2592 x 1520) at 25fps. The username and password details for the camera can be found on the configuration sheet inside the junction box. The default username is admin.
  • Page 4 -60° ~ 60° with angle compass Ingress Protection IP65 Wind Tolerance Up to 65m/s Dimensions (Panel) 1321 x 525 x 161mm 1496 x 685 x 161mm Diameter (Spigot) Ø50 ~ 60mm VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 5 1.3 Solar Panel Information (continued) Solar Panel Dimensions SLR-B120 SLR-B180 www.vip-vision.com Visit for support...
  • Page 6 1.3 Solar Panel Information (continued) Solar Panel Assembly Diagram Lamp Arm Bird Spikes Accessories Component Solar panel LED light Microwave sensor Lamp arm Bird spikes Screws Safety rope T40 Torx VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 7: Installation

    2. Installation 2.1 Mounting the Solar Panel to the Pole Caution: Solar panel must be placed so it is in direct sunlight all day. Any shading will greatly reduce the solar panel’s performance. 1. Drill an 8mm hole in the pole (minimum 15cm down from the top of the pole) on the same side that the camera will be mounted.
  • Page 8 LED light at the high side. (Fig. 2.2b). 3. Tighten the bolt after adjusting the angle to secure the solar panel in place. 4. Replace the cover. VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 9 2.2 Adjusting the Solar Panel Angle (continued) Fig. 2.2a Fig. 2.2b Solar panel angle Solar panel angle screw cover adjustment screw 2.3 Mounting the Camera to the Pole The camera, camera adapter, right angle bracket and junction box are already connected (A, B, C &...
  • Page 10 Note: The 3 included band clamps are 65-89mm for poles 50-60mm in diameter. If installing on a thicker pole (eg. 80- 150mm), larger band clamps will be required. Fig. 2.3a Fig. 2.3b Mounted pole bracket (front) Mounted pole bracket (back) VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 11 2.3 Mounting the Camera to the Pole (continued) 2. Open the junction box (Fig. 2.3c). Fig. 2.3c Junction box interior (no 4G router) Note: This image shows the inside of the junction box as seen with the WiFi kit. The 4G kit will also have the 4G router pre-installed inside the junction box.
  • Page 12 5. Carefully connect the solar panel power cable to the terminal block, with the red wire connecting to + and the black wire connecting to -. (Fig. 2.3f) Fig. 2.3e Terminal block Fig. 2.3f Solar battery cables connected to terminal block VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 13 3. Connections 3.1 Connect using WiFi [SLR-B120/180-4W] This section covers how to set up the WiFi network for your WiFi Solar Kit. Most of the setup for the solar panel side of the installation has already been done - it just needs to be connected to the solar panel battery for power. Note: The station side of the wireless bridge should already be mounted under the solar panel.
  • Page 14 Wireless Bridge (AP) Camera Wireless Bridge 240VAC (Station) Power 24V PoE Injector DO NOT USE 802.3ac (48V) PoE Injector Network Switch Router (optional) NVR (optional) Internet Fig. 3.1a Example WiFi Setup VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 15 3.2 Connect using 4G [SLR-B120/180-4G] NOTE: 4G setup requires an active SIM card (not included). For more information on how to configure the 4G router, refer to the 4G router manual (included). 1. Insert an active SIM card into the SIM slot. 2.
  • Page 16 For more information on how to configure the camera, refer to the camera’s Quick Start Guide. Fig. 3.2c Fig. 3.2d Fig. 3.2e Main Menu Camera details Live Preview stream selection VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 17 3.3 Finish Camera Installation Close the junction box and securely fasten the 4 attached bolts (Fig. 3.3a). Fig. 3.3a Complete solar surveillance system Visit www.vip-vision.com for support...
  • Page 18: Reconnect Battery

    2. You will hear one long beep. Within 5 seconds, the light will turn on. The light will test for 10 seconds. • By default, the First Time Period Main Brightness Level is 100% brightness. VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 19 5. Solar Panel, Sensor & Light Configuration 5.1 Solar Sensor Light Introduction This section covers how to set up the motion-activated 50W (SLR-B120) or 60W (SLR-B180) LED light on the solar panel. Our example will show you how to configure your solar panel & light with the remote control, showing you how to configure the light to activate after motion is detected at night.
  • Page 20 5.2 Settings Detail Each SLR-B Series Solar Light has default factory settings for light configuration and battery configuration. Below are the functions of each setting in the SysConfig menu and the solar system default settings . Before adjusting solar panel and light settings, familiarise yourself with the setting definitions below.
  • Page 21 5.3 Activate LED Light Before activating the LED light system, the internal battery will require power. Place the solar panel outside and wait for it to charge in the sunlight for at least one hour before continuing. 1. Follow 4. Quick Solar Light Configuration to enable the solar light. 2.
  • Page 22 To lock/Unlock the remote control, press the Test, Enter and Back buttons together. If you hear a single beep, the remote is now locked. If you hear three beeps, the remote is now unlocked. VIP Vision SLR-B Solar Surveillance Installation Manual - Version: VIPSLRB-Q419.1...
  • Page 23 Notes www.vip-vision.com Visit for support...
  • Page 24 Version: VIPSLRB-Q419.1 Note: All products, designs and software here are subject to change without prior written notice.

This manual is also suitable for:

Slr-b120Slr-b180
