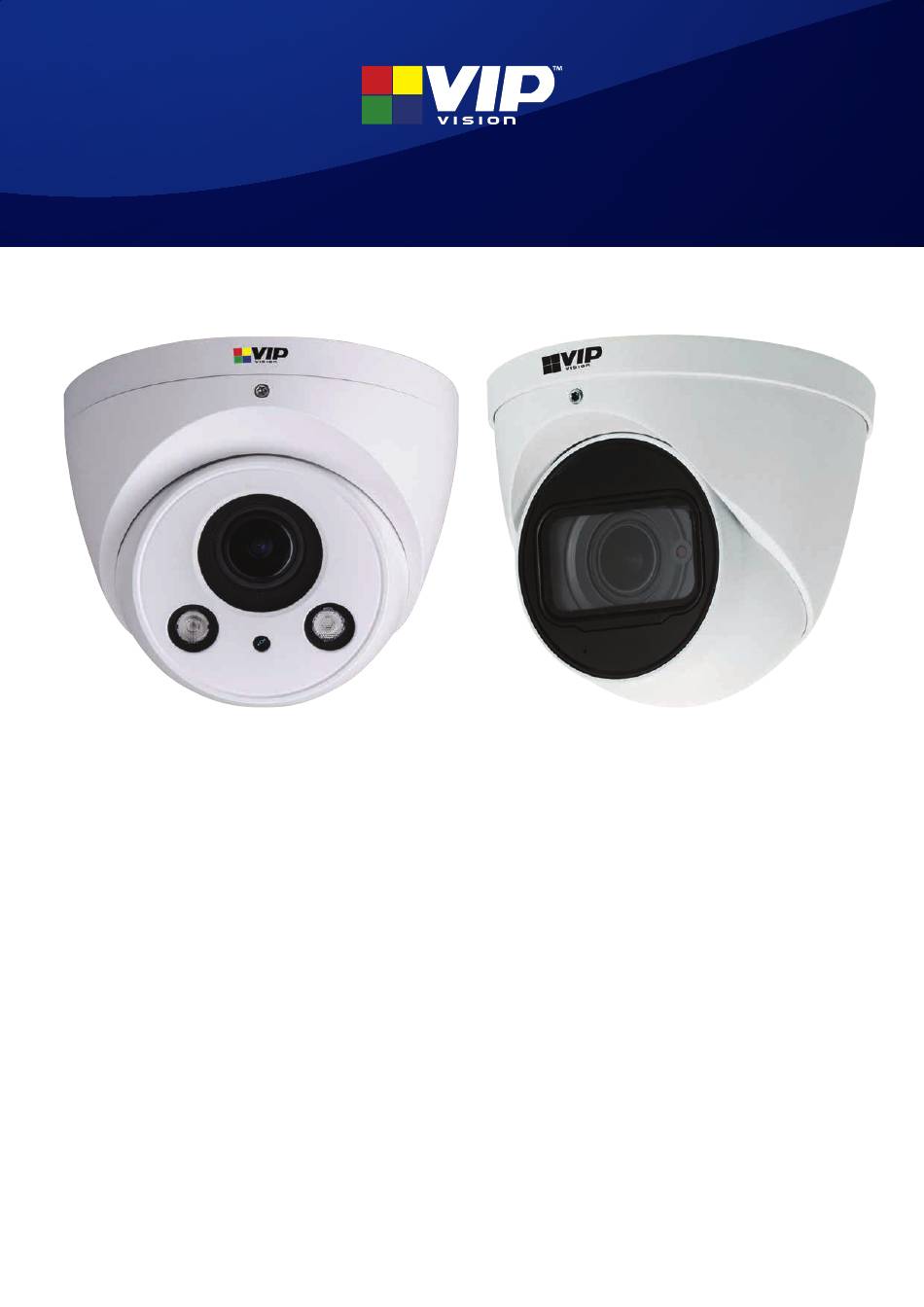

Camera Quick Install Guide
VDIRME/G Series
Thank you for purchasing a VDIRME/VDIRMG Series CCTV Surveillance Camera.
This Quick Install Guide covers basic setup, installation and use of your surveillance system.
For the full user manual, instructional videos, tips on using your surveillance system &
warranty information, please visit: www.vip-vision.com
Version 200318
Advertisement
Table of Contents
Related Manuals for Vip-Vision VDIRME Series

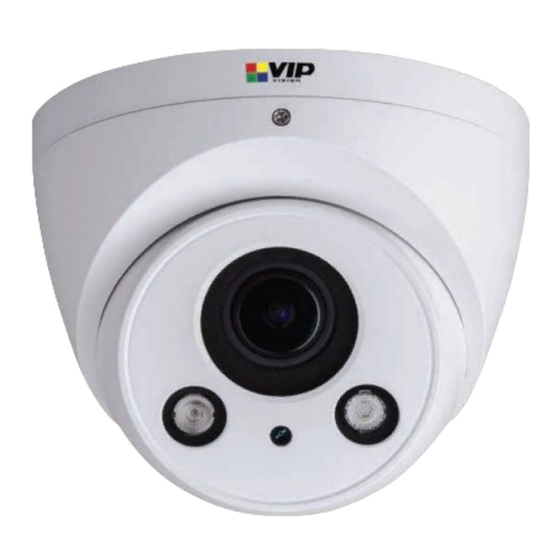

Summary of Contents for Vip-Vision VDIRME Series
- Page 1 Thank you for purchasing a VDIRME/VDIRMG Series CCTV Surveillance Camera. This Quick Install Guide covers basic setup, installation and use of your surveillance system. For the full user manual, instructional videos, tips on using your surveillance system & warranty information, please visit: www.vip-vision.com Version 200318...
-
Page 2: Safety Information
VDIRME Series | Surveillance Cameras Safety Information Electrical safety • All installation and operation here should conform to your local electrical safety codes. • Check that the power supply is correct before operating the camera. • Ensure the power supply conforms to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated DC 12V or AC 24V in the IEC60950-1. -
Page 3: Fcc Information
VDIRME Series | Surveillance Cameras Operation and Daily Maintenance • Do not touch the heat dissipation component of the camera directly in order to avoid burns. • Do not dismantle the device; there is no component which can be fixed directly by users in the camera. -
Page 4: Included Components
VDIRME Series | Surveillance Cameras 1. Pre-install Information Included components VDIRME/VDIRMG Series IP Camera Quick Start Guide Installation Accessories Bag: • Position installation map • Expansion bolts • Installation screws • Screwdriver Dimensions Device framework Component Name Dome Enclosure Dome Pedestal... -
Page 5: Camera Installation
VDIRME Series | Surveillance Cameras 2. Camera Installation Here we will walk you through the installation process of your “VDIRME Series” camera. We will show you how to set up and adjust your camera, insert your microSD card, waterproof your net- work cable and setup your alarm. - Page 6 VDIRME Series | Surveillance Cameras 1.2 Accessing the microSD card slot (optional) 1.2.1 Installing the microSD card 1. Loosen the 4 screws on the dome pedestal, then take down the compression cover and take out the dome body. 2. Loosen the 3 screws on the dome body and then open it.
-
Page 7: Cable Management
VDIRME Series | Surveillance Cameras 1.2.2 Advantages of the microSD The microSD card is useful for anyone who wishes to have another way to back up storage, or is on a budget and doesn’t have a recorder. The microSD card is placed inside of the camera, and can hold a set amount of storage (dependent on size of card) for any intended use, such as: video playback, storage, backup etc. - Page 8 VDIRME Series | Surveillance Cameras 1.3 Waterproofing the camera 1. Install the rubber ring into the network port, keeping the smaller hole of the rubber ring facing outwards and fixing the rubber ring onto the main body of the waterproof cable.
- Page 9 If there is any uncertainty or controversy, please refer to the final explanation of us. Please visit our website or contact your local service engineer for more information. For the full user manual, instructional videos, tips for using your surveillance system and warranty information, please visit: www.vip-vision.com...
