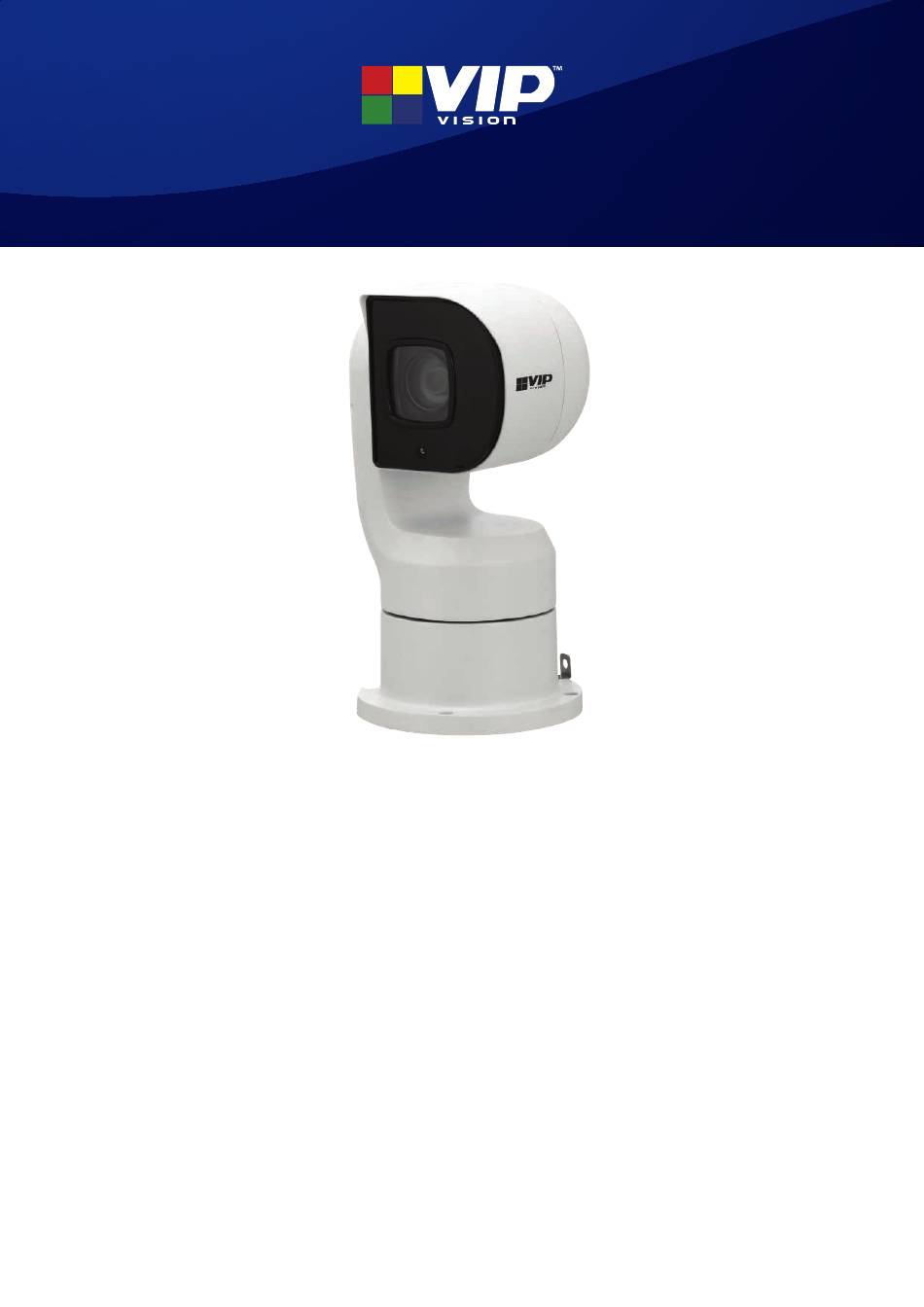

Camera Quick Install Guide
PTZIRW Series
Thank you for purchasing a PTZIRW Series CCTV Surveillance Camera.
This Quick Install Guide covers basic setup, installation and use of your surveillance system.
For the full user manual, instructional videos, tips on using your surveillance system &
warranty information, please visit: www.vip-vision.com
Version 230318
Advertisement
Table of Contents
Related Manuals for Vip-Vision PTZIRW Series
Summary of Contents for Vip-Vision PTZIRW Series
- Page 1 Camera Quick Install Guide PTZIRW Series Thank you for purchasing a PTZIRW Series CCTV Surveillance Camera. This Quick Install Guide covers basic setup, installation and use of your surveillance system. For the full user manual, instructional videos, tips on using your surveillance system &...
-
Page 2: Safety Information
Actual value of some data and the value provided in the manual may differ due to environmental differences, etc. • VIP Vision is not liable for any damages caused by operation which is not followed in the manual. Crucial evidence. Always. -
Page 3: Fcc Information
PTZIRW Series | Surveillance Cameras Operation and Daily Maintenance • Do not touch the heat dissipation component of the camera directly in order to avoid burns. • Do not dismantle the device; there is no component which can be fixed directly by users in the camera. -
Page 4: Included Components
PTZIRW Series | Surveillance Cameras 1. Pre-install Information 1.1 Included Components PTZIRW Series IP PTZ Camera Junction Box Installation Guide Installation Accessories Bag: • Position installation map • Expansion bolts • Installation screws • Screwdriver 1.2 Dimensions Crucial evidence. Always. -
Page 5: Camera Cabling
PTZIRW Series | Surveillance Cameras 1.3 Camera Cabling The camera is equipped with a multi-functional combination cable by default, which includes power cable, video cable, RS485 control cable, alarm cable, network cable, and audio cable etc. Details are shown below. -
Page 6: Camera Installation
PTZIRW Series | Surveillance Cameras 2. Camera Installation 2.1 Mounting 2.1.1 Installation Conditions The camera must be installed on a hard surface in both indoor and outdoor environments. The platform should meet the following installation conditions: 1. Be thick enough to install expansion bolts. - Page 7 PTZIRW Series | Surveillance Cameras 2.1.3 Vertical Wall Mount 1. Use the included template to select an installation location and mark where to drill on the wall. 2. Drill the holes and install the expansion bolts, as shown. 3. Place the camera on the wall mount bracket, fix the camera with screws and buckle the safety rope, as shown below.
- Page 8 PTZIRW Series | Surveillance Cameras 2.1.4 Inverted Wall Mount 1. Use the included template to select an installation location and mark where to drill on the wall. 2. Drill the holes and install the expansion bolts, as shown. 3. Place the camera on the wall mount bracket, fix the camera with screws and buckle the safety rope, as shown below.
- Page 9 PTZIRW Series | Surveillance Cameras 2.2 Accessing the microSD card slot and reset button 2.2.1 Installing the microSD card 1. Unscrew the rear cover of the camera and lift it off. 2. Locate the microSD card slot on the camera, as pictured above.
- Page 10 PTZIRW Series | Surveillance Cameras 2.3 Lighting Proofing and Surge Protection 2.3.1 Outdoors Protection This PTZ adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 6000W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.
- Page 11 PTZIRW Series | Surveillance Cameras 2.3.2 Indoors Protection The yellow and green GND wire or GND screw of the PTZ should be reliably connected by several strands of copper wire with no less than 25mm² and indoor equipotential GND terminal. Refer to below for lightning proof installation.
-
Page 12: Alarm Setup
PTZIRW Series | Surveillance Cameras 2.5 Alarm setup 1. Connect the alarm input device to the alarm input of I/O cable. 2. Connect the alarm output device to the alarm output of I/O cable. 3. Open the WEB and set the alarm input and output. Alarm input on WEB corresponds to I/O cable on device. - Page 13 Note: This quick install guide is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. Please visit our website or contact your local service engineer for more information. For the full user manual, instructional videos, tips for using your surveillance system and warranty information, please visit: www.vip-vision.com...
