Vip-Vision FBMINIIR Series Quick Install Manual

Vip-Vision FBMINIIR Series Quick Install Manual

2.0mp/4.0mp/8.0mp wdr infrared fixed mini bullet

Advertisement

Quick Links

FBMINIIR Series

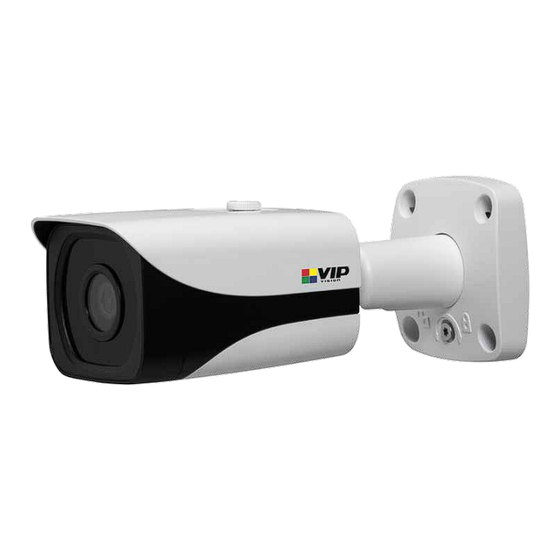

Thank you for purchasing a FBMINIIR Series CCTV Surveillance Camera.
This Quick Install Guide covers basic setup, installation and use of your surveillance system.
For the full user manual, instructional videos, tips on using your surveillance system &
warranty information, please visit: www.vip-vision.com
Applicable Models
VSIP2MPFBMINIIRV3
VSIP4MPFBMINIIRV2
VSIP8MPFBMINIIR
Camera Quick Install Guide
Available in 2.0MP, 4.0MP and 8.0MP variants
2.0MP WDR Infrared Fixed Mini Bullet
4.0MP WDR Infrared Fixed Mini Bullet
8.0MP Infrared Fixed Mini Bullet
Version 290517

Advertisement

loading
Need help?

Need help?

Do you have a question about the FBMINIIR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vip-Vision FBMINIIR Series

  • Page 1 FBMINIIR Series Available in 2.0MP, 4.0MP and 8.0MP variants Thank you for purchasing a FBMINIIR Series CCTV Surveillance Camera. This Quick Install Guide covers basic setup, installation and use of your surveillance system. For the full user manual, instructional videos, tips on using your surveillance system &...
  • Page 2: Safety Information

    FBMINIIR Series | Surveillance Cameras Safety Information Electrical safety • All installation and operation here should conform to your local electrical safety codes. • Check that the power supply is correct before operating the camera. • Ensure the power supply conforms to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated DC 12V or AC 24V in the IEC60950-1.
  • Page 3: Fcc Information

    FBMINIIR Series | Surveillance Cameras Operation and Daily Maintenance • Do not touch the heat dissipation component of the camera directly in order to avoid burns. • Do not dismantle the device; there is no component which can be fixed directly by users in the camera.
  • Page 4: Included Components

    FBMINIIR Series | Surveillance Cameras 1. Pre-install Information Included components FBMINIIR Series IP Camera Quick Start Guide Installation Accessories Bag: • Position installation map • Expansion bolts • Locking screws • Screwdriver Dimensions Connection ports Port Name Function Network port (LAN) Network port (Ethernet connector)
  • Page 5: Camera Installation

    FBMINIIR Series | Surveillance Cameras 2. Camera Installation Here we will walk you through the installation process of your “FBMINIIR Series” camera. We will show you how to set up and adjust your camera, insert your microSD card and waterproof your network cable.
  • Page 6 FBMINIIR Series | Surveillance Cameras 1.2 Accessing the microSD card slot (optional) 1.2.1 Installing the microSD card 1. Locate the lower cover on the bottom of the camera and open it. 2. Install the microSD card into its dedicated slot, making sure it’s properly secured.
  • Page 7: Adjusting The Camera Angle

    FBMINIIR Series | Surveillance Cameras 1.3 Adjusting the camera angle 1. Use the screwdriver found in the accessories bag to loosen screw. 2. Adjust the camera and set its monitoring direction as required. 3. Tighten the screw(s) until firmly secured.
  • Page 8 All the designs and software here are subject to change without prior written notice. Please visit our website or contact your local service engineer for more information. For the full user manual, instructional videos, tips for using your surveillance system and warranty information, please visit: www.vip-vision.com...
