Gira CO2-Sensor Manual

Sensor with humidity and room temperature controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KNX
Product documentation
Issue:
24.03.2017
21043200
CO2-Sensor with humidity and room temperature
controller
Order No. 2104 ..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO2-Sensor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gira CO2-Sensor

Summary of Contents for Gira CO2-Sensor

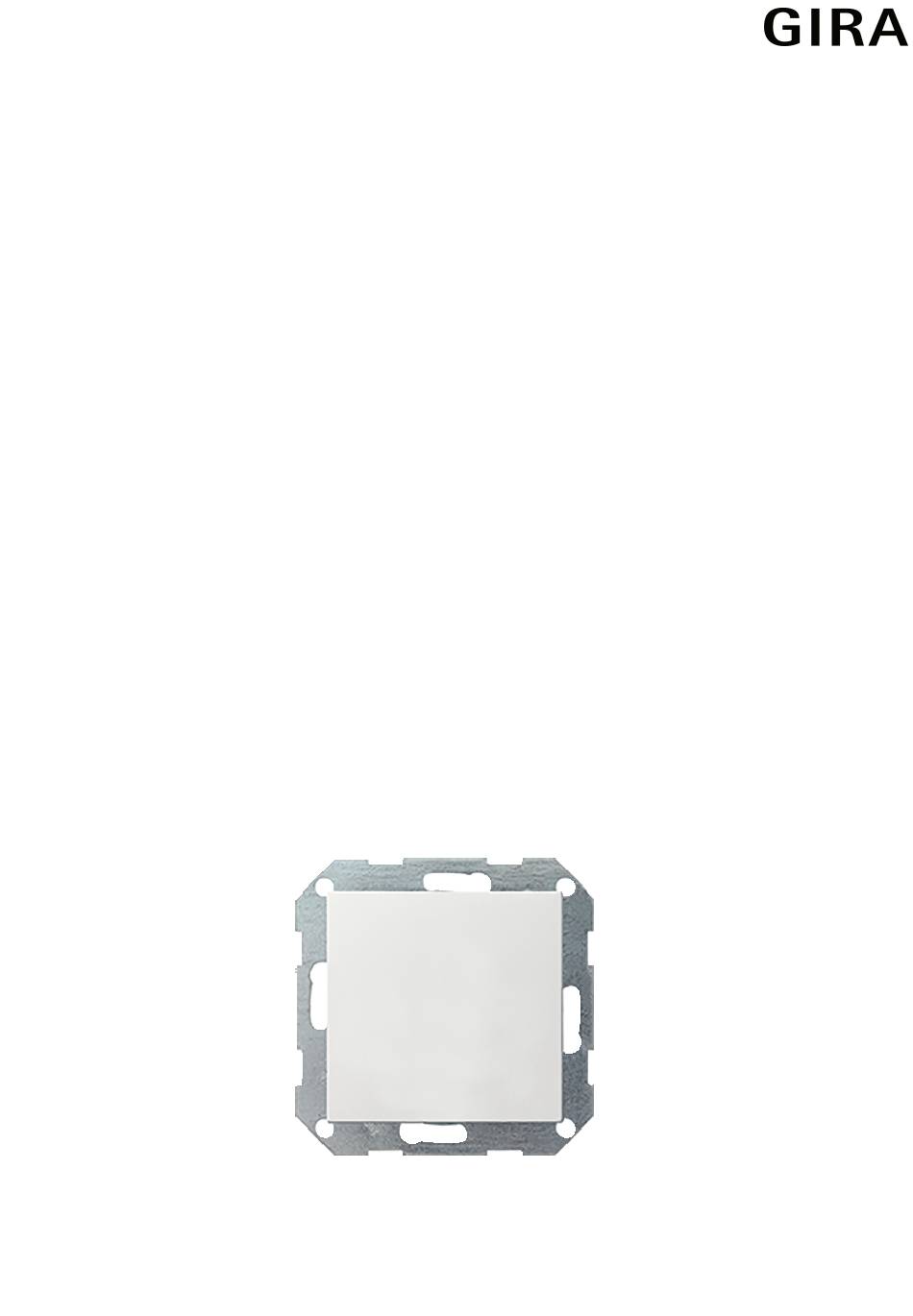

  • Page 1 Product documentation Issue: 24.03.2017 21043200 CO2-Sensor with humidity and room temperature controller Order No. 2104 ..

  • Page 2: Table Of Contents

    Product documentation Table of Contents Product definition ......................... Product catalogue ......................Function .......................... Mounting, electrical connection and operation ..............Safety instructions ......................Device components ......................Fitting and electrical connection ..................Commissioning ......................Technical data ........................Software description ......................Software specification ....................
  • Page 3 Product documentation 4.2.4.4.9 Valve protection ..................4.2.4.5 Logic gates ....................4.2.4.6 Delivery state ....................4.2.5 Parameters ......................4.2.5.1 Parameter sensor ..................4.2.5.2 Room temperature controller parameter ............4.2.5.3 Push button interface parameter ..............4.2.5.4 Logic gate parameter ................... Appendix ........................... Index ...........................

  • Page 4: Product Definition

      Product definition 1 Product definition 1.1 Product catalogue Product name: CO2-Sensor Use: Sensor Design: FM (flush-mounted) Order No. 2104 .. 1.2 Function The device combines the functions of a KNX bus coupling unit, single-room temperature controller with setpoint presetting, temperature and humidity sensor and CO sensor in one bus device.
  • Page 5   Product definition made available to KNX display components. The value of the air humidity measured by the humidity sensor together with the measured room temperature is used for calculating the dew point. Dew point alarm The dew point of water in the formal sense is the condensation point of pure water and thus a value pair from air humidity and room temperature.

  • Page 6: Mounting, Electrical Connection And Operation

      Mounting, electrical connection and operation 2 Mounting, electrical connection and operation 2.1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.

  • Page 7: Device Components

      Mounting, electrical connection and operation 2.2 Device components Figure 1: Device components CO Sensor (1) Device connection terminal insert (2) Design frame (3) Electronics cover (4) Cover (5) Programming button and LEDs (6) Locking screw (plastic) (7) Sensor window CO sensor Order No.

  • Page 8: Fitting And Electrical Connection

      Mounting, electrical connection and operation 2.3 Fitting and electrical connection DANGER! When mounting with 230 V devices under a common cover, e.g. socket outlets, there is a danger of electrical shocks in the event of a fault! Electrical shocks can be fatal. Only use the preassembled plastic screw as locking screw! CAUTION! Electrostatic discharges...
  • Page 9   Mounting, electrical connection and operation Figure 3: Device connection terminal insert with connections (8) Connecting strip binary inputs (9) KNX connection Insert the stripped bus line into the device connection terminal (9) in the device connection terminal insert (Figure 3) Figure 4: Connection of binary inputs 1..3 Not assigned Connection binary input E1...
  • Page 10   Mounting, electrical connection and operation Reattach the cover (4). i Do not use the device in multiple combinations with other FM devices as their heat generation can influence the temperature and humidity measurement of the controller. i Do not mount the device near sources of interference such as electric cookers, refrigerators, draughts or direct sunlight.
  • Page 11   Mounting, electrical connection and operation i During the subsequent fitting, the cover must be mounted again onto the respective insert. Therefore, please pay attention to the correct labelling of the cover and insert during the dismantling and label these accordingly. Order No.

  • Page 12: Commissioning

      Mounting, electrical connection and operation 2.4 Commissioning Loading the physical address and application software The commissioning of the device is basically confined to programming of the physical address and the application data with the ETS. Project design and commissioning of the device using the ETS 3.0d with Patch A or newer versions.

  • Page 13: Technical Data

      Technical data 3 Technical data General Protection class Test mark KNX/EIB Ambient temperature -5 ... +45 °C Storage/transport temperature +10 ... +50 °C Storage/transport humidity 20 ... 60 % rel. humidity KNX medium Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX typ.

  • Page 14: Software Description

      Software specification 4 Software description 4.1 Software specification ETS search paths: - heating, air condition, ventilation / regulator / CO2-Sensor Configuration: S-mode standard PEI type: "00" / "0" PEI connector: none BAU used: FZE 1066 + µC Application for CO sensor: No.

  • Page 15: Software "Knx Co2 Sensor

    Software "KNX CO2 sensor" Scope of functions 4.2 Software "KNX CO2 sensor" 4.2.1 Scope of functions Pushbutton interface funcionality General Free allocation of the functions switching, dimming, Venetian blind and value transmitter to max. 2 inputs. Disable object for disabling individual inputs (polarity of the disable object is adjustable). Delay on bus voltage return and debouncing time centrally adjustable.
  • Page 16 Software "KNX CO2 sensor" Scope of functions The control algorithms of the temperature control are configurable, either the switching 2-point feedback control, the switching PI control (PWM) or the continuous PI control. The command value output 1-bit (switching) or 1-byte (continuous). The adjustable control parameters for the PI control are "Proportional range"...
  • Page 17 Software "KNX CO2 sensor" Scope of functions controller functionality i After switch-on, the CO sensor requires a warm-up period of up to 5 minutes, until normal operation is reached. The automatic calibration method is only available in the case of permanent power supply and after 24 hours for the first time.

  • Page 18: Notes On Software

    Software "KNX CO2 sensor" Notes on software 4.2.2 Notes on software ETS project design and commissioning For project design and commissioning of the device, ETS3.0 from Version "d" Patch "A" onwards or ETS4 is required. Through use of these ETS version, advantages are gained with regard to the programming process (differential download).

  • Page 19: Object Table

    Software "KNX CO2 sensor" Object table 4.2.3 Object table Number of communication objects: (max. object number 138 - gaps in between) Number of addresses (max): Number of assignments (max): Dynamic table management 4.2.3.1 Object table push button interface Objects of the push button interface Function: Switching Object...
  • Page 20 Software "KNX CO2 sensor" Object table Function: Venetian blind Object Function Name Type Flag 2, 3 Long-time operation B.Channel 1 / 2 1-bit 1,008 C, W, T, Description 1-bit object for the transmission of telegrams with which a Venetian blind or shutter drive motor can be can be moved upwards or downwards.
  • Page 21 Software "KNX CO2 sensor" Object table Function: Disable – switching Object Function Name Type Flag 4, 5 Disabling switching object 1.1 B.Disable channel 1-bit 1,001 C, W, (R) 1 / 2 Description 1-bit object by which the switching object can be disabled and enabled again (polarity and behaviour at the beginning and end of the disabling function are configurable).

  • Page 22: Object Table Room Temperature Controller

    Software "KNX CO2 sensor" Object table 4.2.3.2 Object table room temperature controller Objects for room temperature measurement Function: Room temperature measurement Object Function Name Type Flag Actual-temperature C.Output 9,001 C, -, T, R bytes Description 2-byte object to output the actual temperature (room temperature) determined by the controller and used for the room temperature control.
  • Page 23 Software "KNX CO2 sensor" Object table Objects for operating mode change-over Function: Operating mode switchover Object Function Name Type Flag Operating mode switchover C.Input 20,102 C, W, T, bytes Description 1-byte object for change-over of the operating mode of the controller according to the KNX specification.
  • Page 24 Software "KNX CO2 sensor" Object table Function: Operating mode switchover Object Function Name Type Flag Frost/ heat protection C.Input 1-bit 1,001 C, W, T, Description 1-bit object for change-over to the "Frost / heat protection" operating mode. This object is only available in this way when the operating mode change-over is to take place over 4 x 1 bit (parameter-dependent).
  • Page 25 Software "KNX CO2 sensor" Object table Function: Operating mode switchover Object Function Name Type Flag Heating / cooling switchover C.Output 1-bit 1,100 C, -, T, (R) Description 1 bit object to transmit the automatically set operating mode of the controller. Object value "1"...
  • Page 26 Software "KNX CO2 sensor" Object table Function: Status signal Object Function Name Type Flag KNX status operating mode C.Output 20,102 C, -, T, (R) bytes Description 1-byte object used by the controller to output the current operating mode. This object is generally used to enable controller extensions to display the controller operating mode correctly in the KNX compliant status display.
  • Page 27 Software "KNX CO2 sensor" Object table Objects for heating / cooling signal functions Function: Status signal Object Function Name Type Flag Heating indication C.Output 1-bit 1,001 C, -, T, (R) Description 1-bit object for the controller to report a request for heating energy. Object value = "1": energy request, object value = "0": no energy request.
  • Page 28 Software "KNX CO2 sensor" Object table Function: Command value Object Function Name Type Flag Command value for heating C.Output 1-bit 1,001 C, -, T, (R) (PWM) / command value, basic heating (PWM) Description 1-bit object to output the PWM command value of the heating mode. In two- level heating mode, command value output for the basic heating.
  • Page 29 Software "KNX CO2 sensor" Object table Function: Command value Object Function Name Type Flag Command value for C.Output 1-bit 1,001 C, -, T, (R) heating/cooling / basic level Description 1-bit object to output the combined switching command value of the heating and cooling mode.
  • Page 30 Software "KNX CO2 sensor" Object table Function: Command value Object Function Name Type Flag Command value additional C.Output 1-bit 1,001 C, -, T, (R) level (PWM) Description 1-bit object to output the combined switching PWM command value for additional level in two-level operation. This object is only available in this way if the command values for heating and cooling mode are output to a shared object (parameter-dependent).
  • Page 31 Software "KNX CO2 sensor" Object table Function: Command value Object Function Name Type Flag Command value for cooling / C.Output 1-bit 1,001 C, -, T, (R) basic cooling Description 1-bit object to output the switching command value of the cooling mode. In two-level cooling mode, command value output for the basic cooling.
  • Page 32 Software "KNX CO2 sensor" Object table Object for additional PWM heating command value output and combined valve PWM additional heating/cooling Function: Command value Object Function Name Type Flag PWM command value for C.Output 5,001 C, -, T, (R) heating / PWM command bytes value, basic heating Description...
  • Page 33 Software "KNX CO2 sensor" Object table Function: Command value Object Function Name Type Flag PWM command value C.Output 5,001 C, -, T, (R) additional level bytes Description 1-byte object to output the combined continuous command value of a PWM feedback controller for additional level in two-level operation. This object is only available in this way if the command values for heating and cooling mode are output to a shared object (parameter-dependent).
  • Page 34 Software "KNX CO2 sensor" Object table Object for setpoint temperature specification Function: Setpoint temperature specification Object Function Name Type Flag Setpoint temperature C.Input 9,001 C, -, T, R bytes Description 2-byte object for external setting of the temperature setpoint. Depending on the operating mode, the possible range of values is limited by the configured frost protection and/or heat protection temperature.
  • Page 35 Software "KNX CO2 sensor" Object table Object for outputting the actual-temperature Function: Actual-temperature Object Function Name Type Flag Actual temp. not adjusted C.Output 9,001 C, -, T, R bytes Description 2-byte object for following-up the determined and unadjusted room temperature value of the internal temperature sensor. The temperature value is always output in the format "°C".

  • Page 36: Object Table Sensors

    Software "KNX CO2 sensor" Object table 4.2.3.3 Object table sensors General Function: Temperature Object Function Name Type Flag Measured value S.Temperature 9,001 C, -, T, R bytes Description 2-byte object to output the actual measured value and, if necessary, the compared measured value of the temperature sensor in the ETS.
  • Page 37 Software "KNX CO2 sensor" Object table Function: Limiting values Object Function Name Type Flag Limiting value 1, 2, 3, 4 S.CO2 1-bit 1,001 C, -, T, R Description 1 bit objects for outputting the current limiting values of the CO sensor.
  • Page 38 Software "KNX CO2 sensor" Object table Function: External limiting values Object Function Name Type Flag Teach S.CO2 limiting 1-bit 1,001 C, W, -, value spec.1, 2, 3 Description 1-byte objects for storing the external CO limiting values via a switching object (teaching).
  • Page 39 Software "KNX CO2 sensor" Object table Function: Humidity Object Function Name Type Flag Sensor fault S.Humidity 1-bit 1,001 C, -, T, R Description 1-bit output object for signalling a fault in the humidity sensor. Function: Object Function Name Type Flag Sensor fault S.CO2 1-bit...

  • Page 40: Object Table Logic Gates

    Software "KNX CO2 sensor" Object table 4.2.3.4 Object table logic gates Logic gates Function: Inputs of the logic gates Object Function Name Type Flag 115, Input / L.Logic gate 1 - 4 1-bit 1,001 C, W, -, 116, Input 1 - 4 117, 118, 121,...

  • Page 41: Functional Description

    Software "KNX CO2 sensor" Functional description 4.2.4 Functional description 4.2.4.1 Application basics Combination sensors that measure physical measured values at the installation location are integrated in the device. In this way, the CO content of the ambient air as well as the temperature and humidity in a room can be measured and the measured values compared as well.
  • Page 42 Software "KNX CO2 sensor" Functional description Figure 7: CO concentration Order No. 2104 .. Page 42 of 171...

  • Page 43: Push Button Interface

    Software "KNX CO2 sensor" Functional description 4.2.4.2 Push button interface 4.2.4.2.1 Introduction The device incorporates the function of a 2-gang push-button interface, i.e. it has two independent binary inputs. The push-button interface permits up to two potential-free push- button/switching states with common reference potential to be read and evaluated. The device is fitted with a 3-pin device connection terminal strip for the binary inputs.

  • Page 44: Function "No Function

    Software "KNX CO2 sensor" Functional description 4.2.4.2.2 Function "no function" If the function of an output is configured to "No function", the device deactivates the input channel completely. Consequently, all respective communication objects are hidden in the ETS. Order No. 2104 .. Page 44 of 171...

  • Page 45: Switching" Function

    Software "KNX CO2 sensor" Functional description 4.2.4.2.3 "Switching" function If the function of the input is configured to "Switching", the parameters "Command on rising edge" and "Command on falling edge" are visible for two separate switching objects. The selectable switching commands are "OFF", "ON" or "TOGGLE". "TOGGLE" will switch and transmit the value, which is stored in the switching object.

  • Page 46: Dimming" Function

    Software "KNX CO2 sensor" Functional description 4.2.4.2.4 "Dimming" function If the function of the input is configured to "Dimming", various parameters for the dimming function and the "Switching" and "Dimming" objects are visible. The "Operation" parameter determines whether this channel ("single-area operation") alone is used or in conjunction with the another channel ("dual-area operation").

  • Page 47: Venetian Blind" Function

    Software "KNX CO2 sensor" Functional description 4.2.4.2.5 "Venetian blind" function If the function of the input is configured to "Venetian blind", various parameters for the Venetian blind function and the "Short time operation" and "Long-time operation" objects are visible. The "operation concept"...
  • Page 48 Software "KNX CO2 sensor" Functional description Figure 9: Operation concept "long – short" The parameter "Command on rising edge" specifies which polarity the telegrams have for long or short-time operation. The executable commands are "UP", "DOWN" or "TOGGLE". Order No. 2104 .. Page 48 of 171...

  • Page 49: Function"Value Transmitter 1 Byte / 2 Byte

    Software "KNX CO2 sensor" Functional description 4.2.4.2.6 Function"Value transmitter 1 byte / 2 byte" For each input whose function is set to "Value transmitter", the ETS indicates either a 1-byte or a 2-byte object. The data format of the value object is dependent on the set function of the value transmitter.
  • Page 50 Software "KNX CO2 sensor" Functional description - Transmit value on = Rising edge - Value configured in the ETS for rising edge = 17 - Step width = 5 Figure 10: Example to change the value for dimming value transmitter i There is no value over- or underrun on adjustment.

  • Page 51: Function "Light Scene Extension With/Without Memory Function

    Software "KNX CO2 sensor" Functional description 4.2.4.2.7 Function "Light scene extension with/without memory function" With a configuration as a light scene extension without a memory function, it is possible to recall a light scene. With a rising, falling or rising and falling edge, the light scene number configured in the ETS is immediately transmitted to the bus.

  • Page 52: Response To Bus Voltage Return

    Software "KNX CO2 sensor" Functional description 4.2.4.2.8 Response to bus voltage return It is possible to specify separately for each input whether or which reaction should take place after bus voltage return. This means that a defined telegram can be transmitted to the bus according to the input signal or with forced control.

  • Page 53: Disabling Function Of The Inputs

    Software "KNX CO2 sensor" Functional description 4.2.4.2.9 Disabling function of the Inputs A specific reaction can be executed independently for each input at the beginning and end of a disable. In so doing, it is possible to configure to "No reaction". Only in this case are dimming or venetian blind control operations or value adjustments completed during an active disable.

  • Page 54: Sensor Function

    Software "KNX CO2 sensor" Functional description 4.2.4.3 Sensor function 4.2.4.3.1 Temperature sensor Basic principles The temperature sensor of the device measures the actual temperature of the room cyclically. The measured value can be transmitted instantly to the bus via a separate 2-byte object, and thus be made available to KNX display components.

  • Page 55: Humidity Sensor

    Software "KNX CO2 sensor" Functional description 4.2.4.3.2 Humidity sensor General A combination sensor, which enables a measurement of the relative air humidity, is integrated in the device. The measured value can be transmitted instantly to the bus via a separate 2-byte object, and thus be made available to KNX display components.

  • Page 56: Co2 Sensor

    Software "KNX CO2 sensor" Functional description 4.2.4.3.3 CO2 sensor General A CO sensor can be useful in all cases where CO develops in enclosed spaces. In some countries, a CO sensor is already compulsory in schools. This CO sensor is designed exactly for this purpose and can also be used for controlling automatic room ventilation available on site.
  • Page 57 Software "KNX CO2 sensor" Functional description Figure 12: Pressure increase depending on the height of location Behaviour in case of sensor faults The device monitors the integrated, digital, combination sensors cyclically. If communication is permanently impaired (e.g. due to a sensor or device fault), the corresponding alarm object "sensor fault"...

  • Page 58: Limiting Values

    Software "KNX CO2 sensor" Functional description 4.2.4.3.4 Limiting values Four limiting values can be assigned to the CO measured value and two limiting values to the humidity measured value. This makes it possible to trigger actions when the adjustable limits are exceeded or undershot.
  • Page 59 Software "KNX CO2 sensor" Functional description Figure 13: Frequency of switching without hysteresis One can see here that when no hysteresis is incorporated the limiting value object changes its state each time the value is undershot or exceeded. This is different if you parameterise a change of state from '1' to '0' only when the limit value is undershot by the measured value minus hysteresis.
  • Page 60 Software "KNX CO2 sensor" Functional description i The hysteresis must be selected in such a way that the start of the measurement range is not reached or undershot and the end value is not reached or exceeded, as otherwise a change of state can only occur once and not any more until a reinitialisation.
  • Page 61 Software "KNX CO2 sensor" Functional description - If the limiting value plus hysteresis is undershot, no telegram is transmitted and the cyclical transmission is suppressed, too. - If the limiting value is undershot again, an ON telegram is transmitted in turn and the cyclical transmission of this ON telegram is reactivated, too.
  • Page 62 Software "KNX CO2 sensor" Functional description Figure 16: Block diagram for switch-on and switch-off delay (10) Measured value (11) Limiting value and hysteresis processing (12) Internal limiting value (13) ON delay and OFF delay (14) Delayed, internal limiting value (15) Processing of cyclic sending, sending when change, activation of limiting value (16) Limiting value object When the value of an internal limiting value (12) changes from "0"...
  • Page 63 Software "KNX CO2 sensor" Functional description Setting sending of a limiting value when there is a change The transmission property of the limiting values can be influenced by means of the parameter "Transmission on change of the limiting value object" in the parameter node "Limiting value X". "n limiting values active"...

  • Page 64: Room Temperature Controller

    Software "KNX CO2 sensor" Functional description 4.2.4.4 Room temperature controller The device can be used for single-room temperature control. Depending on the operating mode, the current temperature setpoint and on the room temperature, command values for heating or cooling control can be sent to the KNX. Usually, these command values are then converted by a suitable KNX actuator, e.g.
  • Page 65 Software "KNX CO2 sensor" Functional description "Heating and cooling" mixed operating mode In the "Heating and cooling" mixed operating mode, the controller is capable of triggering heating and cooling systems. In this connection, you can set the change-over behaviour of the operating modes...
  • Page 66 Software "KNX CO2 sensor" Functional description "Change-over between heating and cooling" parameter in the "Room temperature control - > Controller general -> Setpoints" parameter branch set to "Via object". In this case, the operating mode is controlled via the object "Heating/cooling switchover", irrespective of the deadband.

  • Page 67: Control Algorithms And Calculation Of Command Values

    Software "KNX CO2 sensor" Functional description 4.2.4.4.2 Control algorithms and calculation of command values Introduction To facilitate convenient temperature control in living or business spaces a specific control algorithm which controls the installed heating or cooling systems is required. Taking account of the preset temperature setpoints and the actual room temperature, the controller thus determines command values which trigger the heating or the cooling system.
  • Page 68 Software "KNX CO2 sensor" Functional description It is possible to configure "Heating", "Cooling" or alternatively the mixed mode "Heating and Cooling" as the operating mode. Using the additional stages is also possible. In this connection, you can set different control algorithms for the heating and/or cooling system. Thus, you can use up to four separate algorithms for two-stage heating or cooling operation.
  • Page 69 Software "KNX CO2 sensor" Functional description "Cycle time of the switching command value..." in the parameter branch "Room temperature control –> command value and status output") is a gauge for the averaged valve position of the control valve and thus a reference for the set room temperature. A shift of the mean value, and thus a change in the heating capacity, can be obtained by changing the duty factor of the switch-on and switch-off pulses of the command value signal.
  • Page 70 Software "KNX CO2 sensor" Functional description response when being switched or off). If different actuators with different adjusting cycle times are used, take account of the longest of the times. Always note the information given by the manufacturers of the actuators. During cycle time configuration, a distinction can always be made between two cases...
  • Page 71 Software "KNX CO2 sensor" Functional description the command values change, if required, only at these times. The disadvantage of a continuously varying temperature as a result of this feedback control option is in contrast with the advantage of this very simple 2-point room temperature control. For this reason, quick- reaction heating or cooling systems should not be triggered by a 2-point feedback control system, for this can lead to very high overshooting of the temperature, thus resulting in loss of comfort.
  • Page 72 Software "KNX CO2 sensor" Functional description Figure 21: 2-point feedback control for the single "Cooling" operating mode An additional 2-point feedback control heating or cooling level works exactly the same as the 2-point feedback control of the basic level. The difference is that the setpoint and the hysteresis values will shift by taking into account the configured level offset.
  • Page 73 Software "KNX CO2 sensor" Functional description The following two images show 2-point feedback control for the mixed operating mode "Heating and cooling", distinguishing between heating mode (Figure 20) and cooling mode (Figure 20). The images take two temperature setpoints, a non-inverted command value output and an automatic operating mode change-over.
  • Page 74 Software "KNX CO2 sensor" Functional description Order No. 2104 .. Page 74 of 171...

  • Page 75: Adapting The Control Algorithms

    Software "KNX CO2 sensor" Functional description 4.2.4.4.3 Adapting the control algorithms Adapting the PI control There are several systems available, which may heat or cool a room. One option is to uniformly heat or cool the surroundings via heat transfer media (preferably water or oil) in connection with room air convection.
  • Page 76 Software "KNX CO2 sensor" Functional description If the "Type of heating" or "Type of cooling" parameters are set to "Via control parameters" it will be possible to adjust the control parameter manually. The feedback control may be considerably influenced by presetting the proportional range for heating or for cooling (P component) and the reset time for heating or for cooling (I component).
  • Page 77 Software "KNX CO2 sensor" Functional description Adapting the 2-point feedback control 2-point feedback control represents a very simple temperature control. For this type of feedback control, two hysteresis temperature values are set. The upper and lower temperature hysteresis limits can be adjusted via parameters. It has to be considered that… A small hysteresis will lead to small temperature variations but to a higher bus load.

  • Page 78: Operating Mode Switchover

    Software "KNX CO2 sensor" Functional description 4.2.4.4.4 Operating mode switchover Introduction - The operating modes The room temperature controller has various operating modes. The selection of these modes will, for example, facilitate the activation of different temperature setpoints, depending on the presence of a person, on the state of the heating or cooling system, on the time of the day, or on the day of the week.
  • Page 79 Software "KNX CO2 sensor" Functional description Change-over of the operating mode using KNX communication objects A distinction is made whether the operating modes should be changed over via separate 1-bit objects or, alternatively, by the 1-byte KNX objects. The "Operating mode change-over" parameter in the "Room temperature control -> Controller general"...
  • Page 80 Software "KNX CO2 sensor" Functional description Figure 27: Operating mode change-over through 4 x 1-bit objects with presence detector object object object obje- object Pres- Pres- Operation Frost-/ Comfo- Standb- Windo- ence ence mode Heat Night butto- detecto- protection mode mode mode status...
  • Page 81 Software "KNX CO2 sensor" Functional description Comfort mode Table 5: Status of the communication objects and the resulting operating mode X: Status irrelevant -: Not possible *: Dependent on the last active operating mode. i When changing over the operating mode, the objects "Comfort mode", "Standby mode", "Night mode"...
  • Page 82 Software "KNX CO2 sensor" Functional description Figure 28: Operating mode change-over through KONNEX object with presence button Figure 29: Operating mode change-over through KONNEX object with presence detector object object object Pres- Pres- Operating mode Operating Forced object Windo- ence ence mode Operating...
  • Page 83 Software "KNX CO2 sensor" Functional description Comfort ex- tension Comfort ex- tension Comfort mode Standby mode Night operation Frost/heat protection Comfort mode Frost/heat protection Frost/heat protection Comfort mode Standby mode Night operation Frost/heat protection Table 6: Status of the communication objects and the resulting operating mode X: Status irrelevant -: Not possible i When changing over the operating mode, the KNX change-over object is updated by the...
  • Page 84 Software "KNX CO2 sensor" Functional description Additional information on the Presence function / Comfort extension With presence detection, the room temperature controller can quickly change over to a comfort extension upon push button actuation or go into the Comfort mode when movement by a person in the room is detected.
  • Page 85 Software "KNX CO2 sensor" Functional description Frost/heat protection switch-over "via window status" The 1-bit object, "window status" is enabled. A telegram having the value of = "1" (open window) and sent to this object will activate the frost/heat protection mode. If this is the case, the operating mode cannot be deactivated by the switch-over object (except for the KNX forced object).
  • Page 86 Software "KNX CO2 sensor" Functional description "Comfort operation" -> The comfort mode will be activated after the initialisation phase. "Standby mode" -> The standby mode will be activated after the initialisation phase. "Night operation" -> The night mode will be activated after the initialisation phase. "Frost/heat protection operation"...

  • Page 87: Temperature Setpoints

    Software "KNX CO2 sensor" Functional description 4.2.4.4.5 Temperature setpoints Setpoint temperature presetting Temperature setpoints can be preset for each operating mode in the ETS as part of first configuration. It is possible to configure the setpoints for the "Comfort", "Standby" and "Night" modes directly (absolute setpoint presetting) or relatively (derivation from basic setpoint).
  • Page 88 Software "KNX CO2 sensor" Functional description "Overwrite setpoints in device during ETS programming operation?" can be used on the parameter page "Room temperature control -> Controller general -> Setpoints" to define whether the setpoints present in the device, which may have been changed subsequently, are overwritten during an ETS programming operation and thus replaced again by the values parameterised in the ETS.
  • Page 89 Software "KNX CO2 sensor" Functional description protection temperature (default: +7 °C) should be to a set smaller value than the night temperature. In principle, however, it is possible to select frost protection temperature values between +7.0 °C and +40.0 °C. The possible range of values for a setpoint temperature lies between +7.0 °C and +99.9 °C for "heating"...
  • Page 90 Software "KNX CO2 sensor" Functional description ≤ T Comfort setpoint cooling Standby setpoint cooling ≤ T Comfort setpoint cooling Night setpoint cooling The standby and night set-temperatures are derived after the configured increase temperatures from the comfort set-temperature (basic setpoint). The heat protection is supposed to ensure that the temperature does not exceed the maximum permissible room temperature in order to protect system components.
  • Page 91 Software "KNX CO2 sensor" Functional description Figure 34: Setpoint temperatures in the operating mode "Heating and cooling" with symmetrical deadband Figure 35: Setpoint temperatures in the operating mode "Heating and cooling" with asymmetrical deadband Order No. 2104 .. Page 91 of 171...
  • Page 92 Software "KNX CO2 sensor" Functional description For this heating/cooling operating mode, the setpoint temperatures of both heating/cooling modes exist for the Comfort, Standby and Night operating modes as well as the deadband. A distinction is made in the deadband position with combined heating and cooling. A symmetrical or an asymmetrical deadband position can be configured.
  • Page 93 Software "KNX CO2 sensor" Functional description Figure 36: Setpoint temperatures in the operating mode "Basic and additional heating and cooling" with symmetrical deadband Order No. 2104 .. Page 93 of 171...
  • Page 94 Software "KNX CO2 sensor" Functional description Figure 37: Setpoint temperatures in the operating mode "Basic and additional heating and cooling" with asymmetrical deadband ≤ T ≤ T ≤ T Comfort setpoint add. level Heating Comfort setpoint basic level Heating Comfort setpoint basic level Cooling Comfort setpoint add.
  • Page 95 Software "KNX CO2 sensor" Functional description The "deadband between heating and cooling", "deadband position" parameters as well as the "Basic temperature after reset" parameter are preset in the ETS configuration. One distinguishes between the following settings... deadband = "symmetrical" The deadband preset in the ETS is divided into two parts at the basic setpoint. The comfort setpoint temperatures are derived directly from the basic setpoint resulting from the half deadband.
  • Page 96 Software "KNX CO2 sensor" Functional description Accept setpoints permanently If the basic setpoint has been modified by the communication objects "Basic setpoint" or "Setpoint of active operating mode", two possible cases can be distinguished, which are set by the parameter "Permanently apply change to basic temperature setpoint" (with relative setpoint presetting) or "Accept modification of the setpoint permanently"...
  • Page 97 Software "KNX CO2 sensor" Functional description i It has to be considered that a shift of the displayed setpoint temperature (temperature offset of the basic temperature) will directly affect the basic setpoint and as a result shift all other temperature setpoints. A positive shift is possible up to the configured heat protection temperature.
  • Page 98 Software "KNX CO2 sensor" Functional description counter value in the object "Current setpoint shift" = "0" (no setpoint shift active) After the setpoint shifting: -> A setpoint shift by one temperature increment in the positive direction will count up the value in the "Current setpoint shift"...

  • Page 99: Room Temperature Measurement

    Software "KNX CO2 sensor" Functional description 4.2.4.4.6 Room temperature measurement Basic principles The room temperature regulator periodically measures the actual temperature of the room and compares it with the given setpoint temperature of the active operating mode. The control algorithm calculates the adjusted command value from the difference between actual and setpoint temperatures.
  • Page 100 Software "KNX CO2 sensor" Functional description "received temperature value" The actual temperature is determined solely via a temperature value received from the bus. In this case, the sensor must either be a KNX room thermostat coupled via the 2-byte object "Received temperature" or a controller extension with temperature detection. The room temperature controller can request the current temperature value cyclically.
  • Page 101 Software "KNX CO2 sensor" Functional description i During room temperature control, the controller always uses the adjusted temperature value to calculate the command values. The adjusted temperature value is transmitted to the bus via the "Actual temperature" object (see "Transmission of the actual temperature"). When determining the measured value using combined sensors, the two adjusted values are used to calculate the actual value.

  • Page 102: Command Value And Status Output

    Software "KNX CO2 sensor" Functional description 4.2.4.4.7 Command value and status output Command value objects The format of the command value objects are determined depending on the control algorithm selected for heating and / or cooling and, if applicable, also for the additional levels. 1 bit or 1 byte command value objects can be created in the ETS.
  • Page 103 Software "KNX CO2 sensor" Functional description Automatic transmission On automatic transmission of the command value telegrams, a distinction is made with regard to the type of control... Continuous PI control: In case of a continuous PI control, the room temperature controller calculates a new command value periodically every 30 seconds and outputs it to the bus via a 1-byte value object.
  • Page 104 Software "KNX CO2 sensor" Functional description Controller status The room temperature controller can transmit its current status to the KNX/EIB. A choice of data formats is available for this. The "Controller status" parameter in the "Room temperature control -> Controller general -> Command value and status output" parameter branch will enable the status signal and set the status format...
  • Page 105 Software "KNX CO2 sensor" Functional description "Controller general": The general controller status collects essential status information of the controller in two 1-byte communication objects. The "Controller status" object contains fundamental status information (see Table 8). The "Status signal addition" object collects in a bit-orientated manner further information that is not available via the "Controller status"...
  • Page 106 Software "KNX CO2 sensor" Functional description "Transmit individual state" The 1 bit status object "Controller status, ..." contains the status information selected by the "Single status" parameter. Meaning of the status signals: "Comfort mode active" -> Active if operating mode "Comfort " or a comfort extension "" is activated.
  • Page 107 Software "KNX CO2 sensor" Functional description With a permanently active command value limit, the initialisation behaviour cannot be configured separately after a device reset, as the limit is always active. In this case it is also not possible to configure any object. As soon as the command value limit is active, calculated command values are limited according to the limiting values from the ETS.
  • Page 108 Software "KNX CO2 sensor" Functional description Special case for command value 100% (Clipping mode) If with a PI control the calculated command value of the controller exceeds the physical limits of the actuator, in other words if the calculated command value is greater than 100%, then the command value is set to the maximum value (100%) and thus limited.

  • Page 109: Disable Functions Of The Room Temperature Controller

    Software "KNX CO2 sensor" Functional description 4.2.4.4.8 Disable functions of the room temperature controller Disable controller Certain operation conditions may require the deactivation of the room temperature control. For example, the controller can be switched-off during the dew point mode of a cooling system or during maintenance work on the heating or cooling system.

  • Page 110: Valve Protection

    Software "KNX CO2 sensor" Functional description 4.2.4.4.9 Valve protection Valve protection may be carried out periodically in order to prevent the addressed control valves of the heater or cooling system from becoming calcified or stuck. When set to "Yes", the "Valve protection"...

  • Page 111: Logic Gates

    Software "KNX CO2 sensor" Functional description 4.2.4.5 Logic gates Logic gates In order to implement logical dependencies from external states as well or to cascade, the device software has four logic gates. Each gate can have from one to a maximum of four inputs. For each logic gate, the type of logic operation "AND","OR", "exclusive OR", "AND with feedback"...
  • Page 112 Software "KNX CO2 sensor" Functional description i When using the delays, ensure that the time delays can be retriggered. Thus, in the case of "Transmission behaviour for logic 1", a "1" telegram on a gate input always causes a restart of the time delay.

  • Page 113: Delivery State

    Software "KNX CO2 sensor" Functional description 4.2.4.6 Delivery state In the state as delivered, the application program is unloaded. After connecting the bus voltage, the programming LED will therefore start flashing at a fixed frequency of 0.5 Hz. The device does not react any further in this state.

  • Page 114: Parameters

    Software "KNX CO2 sensor" Parameters 4.2.5 Parameters 4.2.5.1 Parameter sensor Description Values Comment h Sensor h Sensor -> CO2 measurement Height of location above 0...500...2000 The measured value of the CO sensor sea level module is air pressure dependent. The (0...2000) * 1 m parameter "Height of location above sea level"...
  • Page 115 Software "KNX CO2 sensor" Parameters working normally. The "send ON" and "send OFF" settings set the limiting values of the measured value to the value ON or OFF and trigger an ON or OFF telegram of the limiting values to the bus. If "ON, no telegram"...
  • Page 116 Software "KNX CO2 sensor" Parameters or OFF. Telegrams are not triggered in this case. No further evaluation of the limiting values takes place during the active frost/heat protection mode. The limiting values are first evaluated and updated again after changing to another operating mode (comfort, standby or night mode).
  • Page 117 Software "KNX CO2 sensor" Parameters Undershoot LV=OFF, exceed LV-hyst.=ON Exceed LV=ON, undershoot LV-hyst.=no telegram Exceed LV=OFF, Undershoot LV-hyst.=no telegram Undershoot LV=ON, exceed LV-hyst.=no telegram Undershoot LV=OFF, exceed LV-hyst.=no telegram Exceed LV-hyst.=no telegram, undershoot LV- hyst.=OFF Exceed LV-hyst.=no telegram, undershoot LV- hyst.=ON Undershoot LV-hyst.=no telegram, exceed LV-...
  • Page 118 Software "KNX CO2 sensor" Parameters 5 min 10 min 15 min 30 min 60 min Transmission on With "No" the limiting value object is not change of the limiting transmitted following a change. value object With "Yes" the limiting value object is transmitted following a change from "0"...
  • Page 119 Software "KNX CO2 sensor" Parameters Temperature detection internal sensor The "Temperature detection" parameter specifies the sensors to detect the room received temperature value temperature. Setting "internal sensor": the internal sensor + received temperature sensor integrated in the temperature value room temperature controller is activated. Thus, the actual temperature value is determined only locally on the device.
  • Page 120 Software "KNX CO2 sensor" Parameters (0...255) * 1 min; controller. In this case the 0 = inactive communication partner (e.g. controller extension) must transmit its temperature value itself. This parameter is only visible when the temperature detection system requires that a temperature value is received. Transmission when 0...3...255 Determines the size of the value change...
  • Page 121 Software "KNX CO2 sensor" Parameters value is unaffected and they continue working normally. The "send ON" and "send OFF" settings set the limiting values of the measured value to the value ON or OFF and trigger an ON or OFF telegram of the limiting values to the bus.
  • Page 122 Software "KNX CO2 sensor" Parameters value, e.g. by .button-press. Activation of limiting Exceed LV=ON, Determines in which case the limiting value 1 or 2 undershoot LV-hyst.=OFF values are activated. (LV = Limiting value, Hyst = Hysteresis) Exceed LV=OFF, Undershoot LV-hyst.=ON Undershoot LV=ON, exceed LV-hyst.=OFF Undershoot LV=OFF,...
  • Page 123 Software "KNX CO2 sensor" Parameters 60 min Switch-off delay for none The state "0" of the limiting value is first internal limiting value transferred to the limiting value object object after changing from "1" to "0" according to the time set here. 1min 3 min 5 min...
  • Page 124 Software "KNX CO2 sensor" Parameters Lead dew point alarm 0...2...5 The alarm threshold is defined here (0...5) * 1K before reaching the dew point temperature. Switch-off hysteresis 0...1...5 The alarm hysteresis is defined here, (0...5) * 1K i.e., starting from the alarm threshold set, how many Kelvin the temperature must decrease by before the alarm is stopped.

  • Page 125: Room Temperature Controller Parameter

    Software "KNX CO2 sensor" Parameters 4.2.5.2 Room temperature controller parameter Description Values Comment h Room temperature control -> Controller general Operating mode Heating The room temperature controller distinguishes between two different Cooling operating modes. The operating modes specify whether you want the controller Heating and cooling to use its variable to trigger heating systems ("heating"...
  • Page 126 Software "KNX CO2 sensor" Parameters Type of heating (if Hot water heater Adapting the PI algorithm to different applicable, for basic and (5 K / 150 min) heating systems using predefined additional level) values for the proportional range and Underfloor heating reset time control parameters.
  • Page 127 Software "KNX CO2 sensor" Parameters (4 K / 90 min) With the "Using control parameters" setting, it is possible to set the control Split unit (4 K / 90 min) parameters in a manner deviating from the predefined values within specific via control parameter limits.
  • Page 128 Software "KNX CO2 sensor" Parameters status, Presence status) are not effected. Frequent changing of the operating mode (e. g. several times a day) during running operation can adversely affect the life of the device as the read-only memory (EEPROM) used has been designed for less frequent write access events only.
  • Page 129 Software "KNX CO2 sensor" Parameters Automatic transmission 0...3...100 This parameter determines the size of at modification by the command value change that will (0...100) * 1 %; automatically transmit continuous 0 = inactive command value telegrams via the command value objects. Thus this parameter only affects command values which are configured to "Continuous PI control"...
  • Page 130 Software "KNX CO2 sensor" Parameters Normal (under current, inverted form. this means opened) This parameter is only visible if the operating mode "Cooling" or "Heating and cooling" is configured and not two- level operation. Output of the command Inverted (under current, this At this point, it is possible to specify value basic level cooling means closed)
  • Page 131 Software "KNX CO2 sensor" Parameters be received via the "Command value limit" object. The limit can be switched on or off at any time using the object. This parameter is only visible with "Command value limit = can be activated via object"! Minimum command 5%, 10%, 15%, 20%, 25%, The "Minimum command value"...
  • Page 132 Software "KNX CO2 sensor" Parameters demanding heating energy and is thus actively heating. The "Yes" setting here enables the message function for heating. Cooling indication Depending on the set operating mode, a separate object can be used to signal whether the controller is currently demanding cooling energy and is thus actively cooling.
  • Page 133 Software "KNX CO2 sensor" Parameters and react to it in various ways. This parameter defines the functions of the PI controller when the command value is 100%. "keep 100% until setpoint = actual, then 0%" setting: The controller keeps the maximum command value until the room temperature (actual value) reaches the setpoint temperature.
  • Page 134 Software "KNX CO2 sensor" Parameters Setpoint presetting relative (setpoint It is possible to configure the setpoints temperatures from basic for the "Comfort", "Standby" and "Night" setpoint) modes directly (absolute setpoint presetting) or relatively (derivation from absolute (independent basic setpoint). This parameter defines setpoint temperatures) the way the setpoint temperature is preset.
  • Page 135 Software "KNX CO2 sensor" Parameters This parameter is only visible with relative setpoint presetting! Modification of the basic deactivated Here, it is possible to specify if it is temperature setpoint approve via bus possible to change the basic setpoint via value the bus.
  • Page 136 Software "KNX CO2 sensor" Parameters The newly adjusted value will overwrite the initial value, i.e. the absolute setpoint temperature originally loaded using the ETS. The changed values are also retained after a device reset, after a switchover of the operating mode or after a switchover of the heating/cooling mode (with absolute setpoint specification individually for each...
  • Page 137 Software "KNX CO2 sensor" Parameters Setpoint temp. night Presetting of the setpoint temperature mode (heating) for night mode (heating). (7.0 °C...40.0 °C) * 1°C Setpoint temp. comfort 7.0...23.0...40.0 Presetting of the setpoint temperature mode (cooling) for the comfort cooling mode. (7.0 °C...40.0 °C) * 1°C Setpoint temp.
  • Page 138 Software "KNX CO2 sensor" Parameters the basic setpoint in the direction of comfort temperature for cooling. Thus the comfort set-temperature for cooling is derived directly from the comfort setpoint for heating. The parameter is only visible in the "Heating and cooling" operating mode (if necessary with additional levels) and only with relative setpoint presetting! Deadband between...
  • Page 139 Software "KNX CO2 sensor" Parameters Upward adjustment of This is used to define the maximum the basic setpoint + 1 K range in which the basic setpoint temperature + 2 K temperature can be adjusted upwards. (0...10) * 1 K + 3 K This parameter is only visible with + 4 K...
  • Page 140 Software "KNX CO2 sensor" Parameters The parameter is only visible in the "Heating" or "Heating and cooling" operating mode (if necessary with additional levels) and only with relative setpoint presetting. Change-over between automatic In a configured mixed mode it is heating and cooling possible to switch over between heating via object (heating/cooling...
  • Page 141 Software "KNX CO2 sensor" Parameters extension is activated. If the presence button is pressing in standby mode, the controller activates the comfort mode for the duration of the presence mode. In the "Presence detector" setting, presence detection takes place using an external presence detector, coupled to the presence object.

  • Page 142: Push Button Interface Parameter

    Software "KNX CO2 sensor" Parameters 4.2.5.3 Push button interface parameter Description Values Comment h Push button interface Transmit delay after 130 ms After reset or bus voltage return, the reset or bus voltage 260 ms application program of the push-button return 520 ms interface can be disabled for a defined...
  • Page 143 Software "KNX CO2 sensor" Parameters seconds can be set here. h Push button interface -> Channel 1 Function input 1 No function Determines the function of input 1. Switching Dimming Venetian blind Value transmitter Function channel 1 = No further parameter. "no function"...
  • Page 144 Software "KNX CO2 sensor" Parameters transmission always occurs regardless of the object value. Time base for cyclical 1 sec Determines the time base for the cyclical transmission of 2.1 sec transmission via the switching object switching object 1.1 4.2 sec 1.1.
  • Page 145 Software "KNX CO2 sensor" Parameters With "transmit OFF telegram" an "OFF" is transmitted. Function channel 1 = "Dimming" Operation Single-area operation: Specifies the reaction to a rising edge at Brighter / darker (TOGGLE) the input. Dual-area operation: brighter (ON) With "Single-area operation: brighter / Dual-area operation: darker darker (TOGGLE)", after a brief press of (OFF)
  • Page 146 Software "KNX CO2 sensor" Parameters the set operation. 1.5 % Time between switching 130 ms Time from which the dimming function and dimming, 260 ms ("long press") is executed. Base 520 ms 1 sec Time = Basic x Factor Time between switching 4...127 Time from which the dimming function and dimming,...
  • Page 147 Software "KNX CO2 sensor" Parameters Function channel 1 = "Venetian blind" Command on rising no reaction Specifies the reaction to a rising edge at edge the input. DOWN TOGGLE With "no function" the input is deactivated. With "UP" a brief press triggers a STEP telegram (UP), a long press triggers a MOVE telegram (up).
  • Page 148 Software "KNX CO2 sensor" Parameters Time between short and 130 ms Time after which the function of a long long time operation, 260 ms actuation is executed. Only for operation Base 520 ms concept = "short – long – short". 1 sec 2.1 sec Time = Basic x Factor...
  • Page 149 Software "KNX CO2 sensor" Parameters Function as Dimming value Determines the function to be executed. transmitter Light scene extension without memory function Light scene extension with memory function Temperature value transmitter Brightness value transmitter Value transmitter function = "Dimming value transmitter" Transmit value on rising edge (push-button Specifies the edge which starts an...
  • Page 150 Software "KNX CO2 sensor" Parameters Time between two 130 ms Time base for the time between two telegrams, 260 ms cyclical telegrams during value Base 520 ms adjustment. 1 sec Only with "Adjustment via long actuation? = Yes"! Time between two 3...127 Time factor for the time between two telegrams,...
  • Page 151 Software "KNX CO2 sensor" Parameters Value transmitter function = "Light scene extension without memory function" Transmit light scene rising edge (push-button Specifies the edge which starts an number on as NO contact) actuation. falling edge (push-button as NC contact) rising and falling edge (switch) Light scene on rising 1...64...
  • Page 152 Software "KNX CO2 sensor" Parameters contact)" and "Transmit light scene number on = rising and falling edge (switch)"! With "transmit current input state" the current input state of the inputs is transmitted according to the configuration for the rising and falling edge.
  • Page 153 Software "KNX CO2 sensor" Parameters Presetting: 520 ms × 10 = 5.2 s Behaviour after bus no reaction It is possible to specify which reaction voltage Reaction as rising edge should take place after bus voltage return Reaction as falling edge return.
  • Page 154 Software "KNX CO2 sensor" Parameters Adjustment via long With a long press (< 5 s), the current actuation? value can be cyclically reduced or increased by the parameterized step width (see below) and transmitted. After this value adjustment, the value last transmitted remains stored.
  • Page 155 Software "KNX CO2 sensor" Parameters value parameterized for the falling edge will be transmitted. Only with "Transmit value on = falling edge (push-button as NC contact)" and "Transmit value on = rising and falling edge (switch)"! With "transmit current input state" the current input state of the inputs is transmitted according to the configuration for the rising and falling...
  • Page 156 Software "KNX CO2 sensor" Parameters button as NC contact)". Time between two 130 ms Time base for the time between two telegrams, 260 ms cyclical telegrams during value Base 520 ms adjustment. 1 sec Only with "Adjustment via long actuation? = Yes"! Time = Basic x Factor Time between two 3...127...
  • Page 157 Software "KNX CO2 sensor" Parameters Only with "Transmit value on = raising and falling edge (switch)"! h Push button interface -> Channel 1 -> Disable Disable for function "Switching" Disabling function enabled The disabling function can be disabled Switching object 1.1 / disabled or enabled via its own object.
  • Page 158 Software "KNX CO2 sensor" Parameters toggled. Behaviour at the end of no reaction This parameter specifies the command the disabling function transmitted via the "Switching" object at the end of the disabling. Disable for function "Venetian blind" Disabling function enabled The disabling function can be enabled or disabled disabled.
  • Page 159 Software "KNX CO2 sensor" Parameters Only with "Transmit value on = rising edge (push-button as NO contact)" and "Transmit value on = rising and falling edge (switch)"! With "Reaction as with falling edge", the value parameterized for the falling edge will be transmitted.
  • Page 160 Software "KNX CO2 sensor" Parameters function " Disabling function enabled The disabling function can be enabled or disabled disabled. Polarity of the disabling Disable = 1 (Enable = 0) This parameter sets the polarity of the object Disable = 0 (Enable = 1) disabling object.
  • Page 161 Software "KNX CO2 sensor" Parameters edge will be transmitted. Only with "Transmit light scene number on = falling edge (push-button as NC contact)" and "Transmit light scene number on = rising and falling edge (switch)"! With "transmit current input state" the current input state of the inputs is transmitted according to the configuration for the rising and falling...
  • Page 162 Software "KNX CO2 sensor" Parameters With "Reaction as with falling edge", the light scene parameterized for the falling edge will be transmitted. Only with "Transmit light scene number on = falling edge (push-button as NC contact)"! Disable for function "Temperature value transmitter"...
  • Page 163 Software "KNX CO2 sensor" Parameters Transmit current input With "no reaction", no reaction occurs. status With "Reaction as with rising edge", the value parameterized for the rising edge will be transmitted. Only with "Transmit value on = rising edge (push-button as NO contact)" and "Transmit value on = rising and falling edge (switch)"! With "Reaction as with falling edge", the...
  • Page 164 Software "KNX CO2 sensor" Parameters will be transmitted. Only with "Transmit value on = falling edge (push-button as NC contact)" and "Transmit value on = rising and falling edge (switch)"! With "transmit current input state" the current input state of the inputs is transmitted according to the configuration for the rising and falling edge.
  • Page 165 Software "KNX CO2 sensor" Parameters See channel 1 - Disable! Order No. 2104 .. Page 165 of 171...

  • Page 166: Logic Gate Parameter

    Software "KNX CO2 sensor" Parameters 4.2.5.4 Logic gate parameter Description Values Comment h Logic gates Number of logic gates no logic gates This parameter determines how many 1 logic gates logic gates are available. 2 logic gates 3 logic gates 4 logic gates h Logic gate ->...
  • Page 167 Software "KNX CO2 sensor" Parameters transmitted without delay, i.e. instantly. With "Transmission delay": During each update of the output state (see "Send output at), a state "0" is transmitted with delay. Lenght of transmission 100ms This parameter defines the duration of delay the transmission delay for a logic "0"...
  • Page 168 Software "KNX CO2 sensor" Parameters The following parameters for the logic gate inputs are available in the same way for each configured input (1...4). Connection external input object This parameter defines with which logic Humidity measurement - gate output, dew point alarm object or limiting value object the corresponding CO2 measurement - LV1 input of the gate is connected (internal...
  • Page 169 Software "KNX CO2 sensor" Parameters Switching command for This parameter defines which switching logic 1 command should be transmitted to the bus for a logical "1" on the logic gate output. This parameter is only visible when the gate output is configured as "switching object".

  • Page 170: Appendix

      Appendix 5 Appendix 5.1 Index Numerical 2-point feedback control......77 Response of the limiting value ..60 object Accept setpoints permanently....96 Setpoint temperature presetting..... 87 Adapting..........75,77 Setpoint temperatures......88 automatic frost protection....... 84 single operating modes......64 Switching 2-point feedback control..70 Basic setpoint shift........96 Switching PI control........
  • Page 171   Appendix Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de Order No. 2104 .. Page 171 of 171...

Table of Contents
