Socket outlet with LED orientation light
Socket outlet with LED orientation light
Order No. : 1170 ..
Socket outlet with LED orientation light
Order No. : 1172 ..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
The device is not suitable for use in safety systems or as an emergency light.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Socket outlet base
(2) Cover frame
(3) Socket outlet insert
(4) Light sensor
(5) Light opening
3 Function
Intended use
-
SCHUKO socket outlet with integral LED orientation light
-
Installation in appliance box to DIN 49073
32563102
10499125 I00

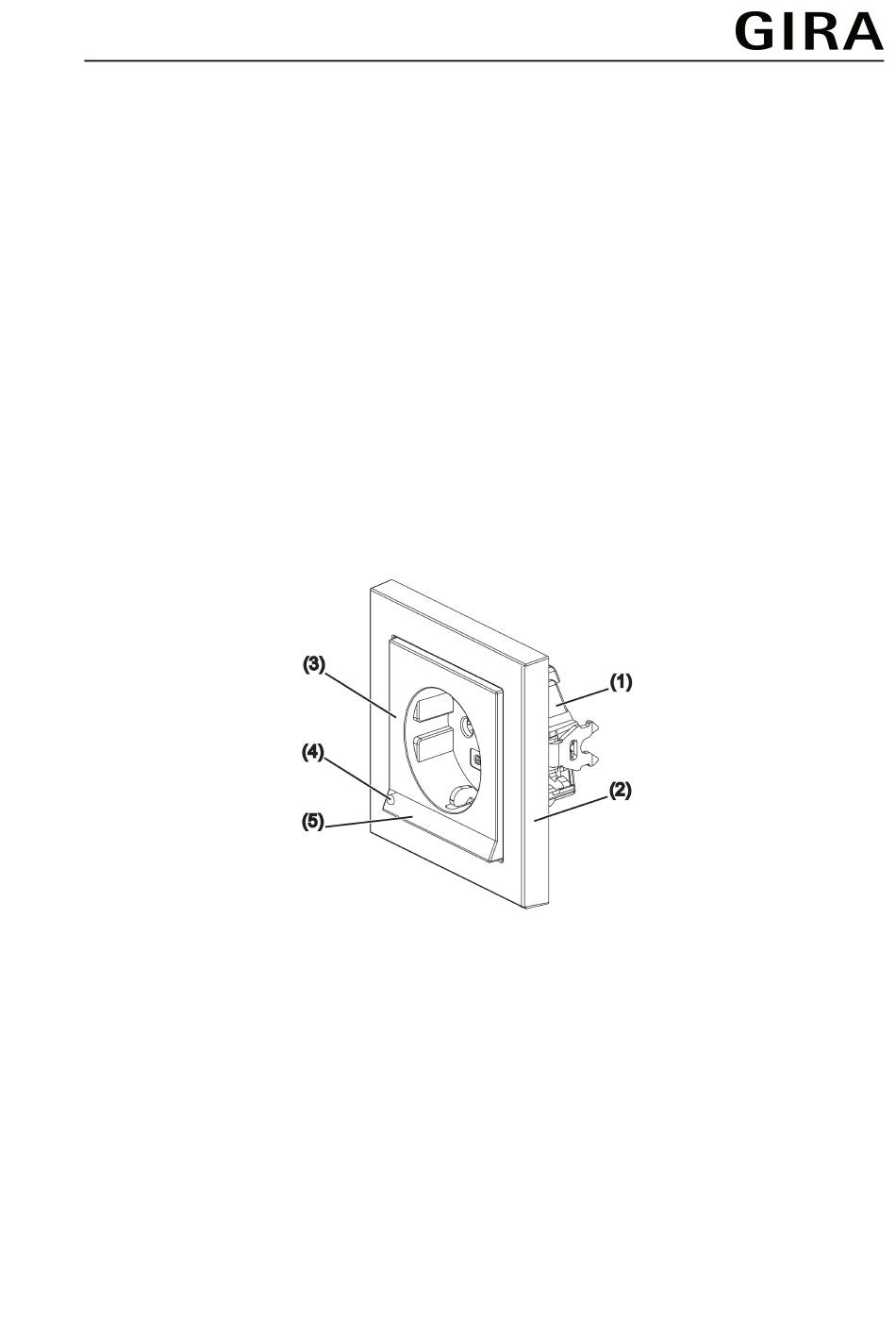

Figure 1
03.05.2021
1/3
