Triple antenna outlet socket EDA 3902 F
Info
Installation instructions

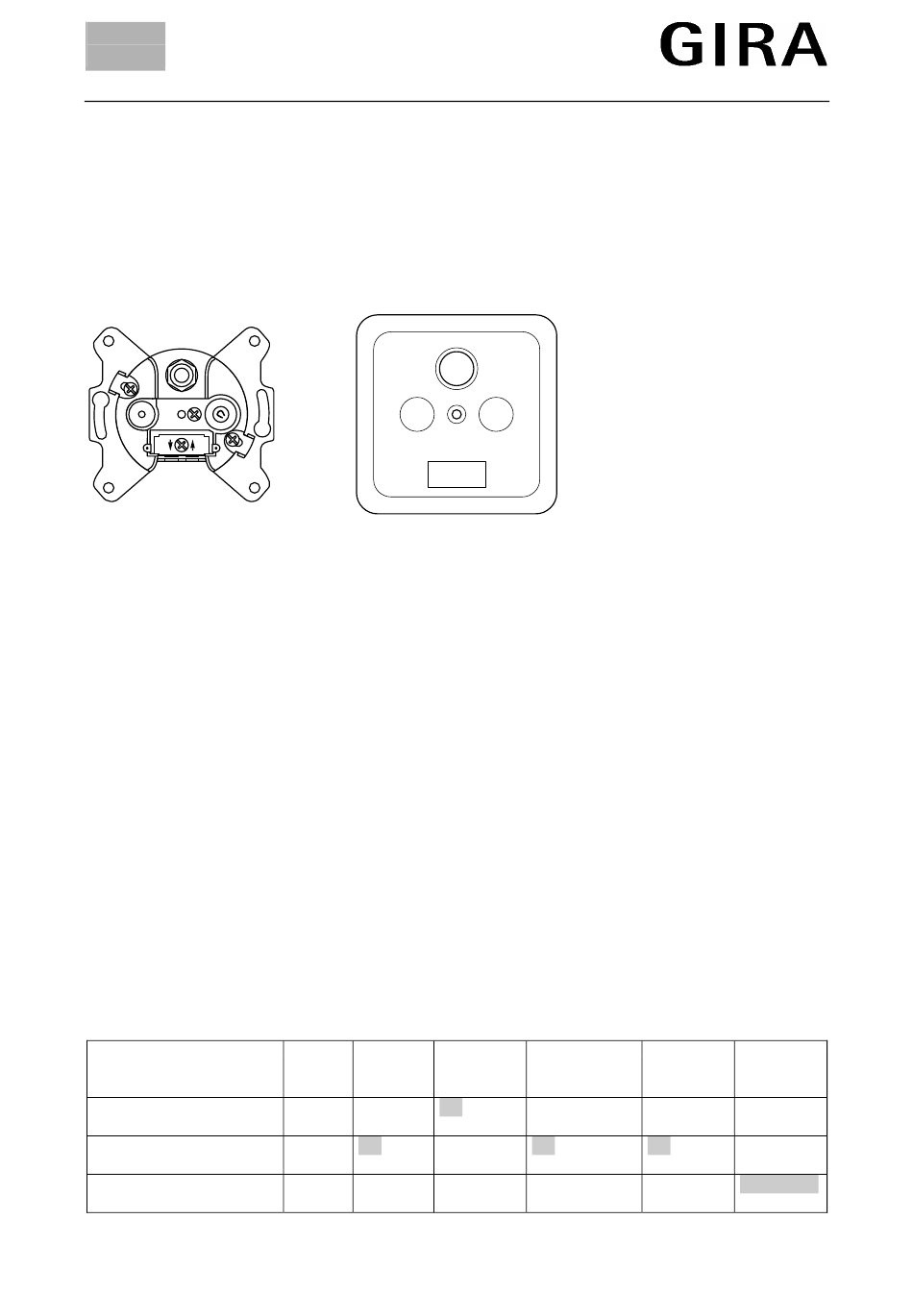

Triple antenna outlet socket EDA 3902 F
For individual antenna systems and for community antenna systems at the end of decoupled tap-off
lines.
Three outlets, each one for a radio set, a TV set (both acc. to IEC 169-2 (DIN 45 325)) and a satellite
receiver or a TV set with satellite reception unit, respectively.

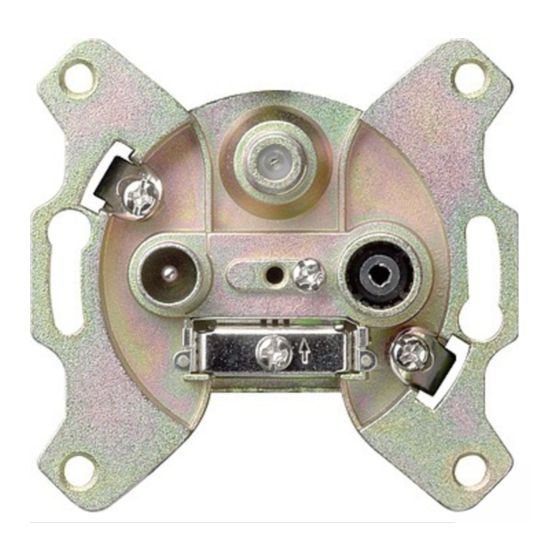

Description
•
Connections:
Plug for TV reception (47 - 862 MHz), socket for radio reception (87,5 -108 MHz), F-connector for
st
1
SAT-IF range (950 - 2400 MHz)
•
BZT-licence No (German P.T.T.): G 683 025 C
•
Meets the draft DIN V VDE 0855
•
Shielding rate
up to 470 MHz ≥ 75 dB
470 - 862 MHz ≥ 65 dB
950 - 2050 MHz ≥ 55 dB
•
Suitable for remote feeding via terminal for the 1st SAT-IF (950 - 2400 MHz).
Remote feeding current 500 mA max.
•
Open, symmetrical support ring for easy connection and installation of the antenna outlet socket.
•
Cover plate (76 x 76 mm) is enclosed.
Technical data
Output attenuation RF
Output attenuation TV
Output attenuation SAT
1)
SC = Special channels
Triple antenna outlet socket EDA 3902 F
SAT
TV
VHF I
FM
f/MHz
47 - 68
87,5 - 108
dB
-
2,0
dB
1,5
-
dB
-
-
09/99
Art. No.: 0937 00
R
1)
VHF III / SC
UHF IV/ V
174 - 470
470 - 862
-
-
1,5
1,5
-
-
SAT
950 - 2400
-
-
2,0
3,0
Page 1 of 3
