StewMac ’64 REVERB UNIT Assembly Instructions Manual page 6

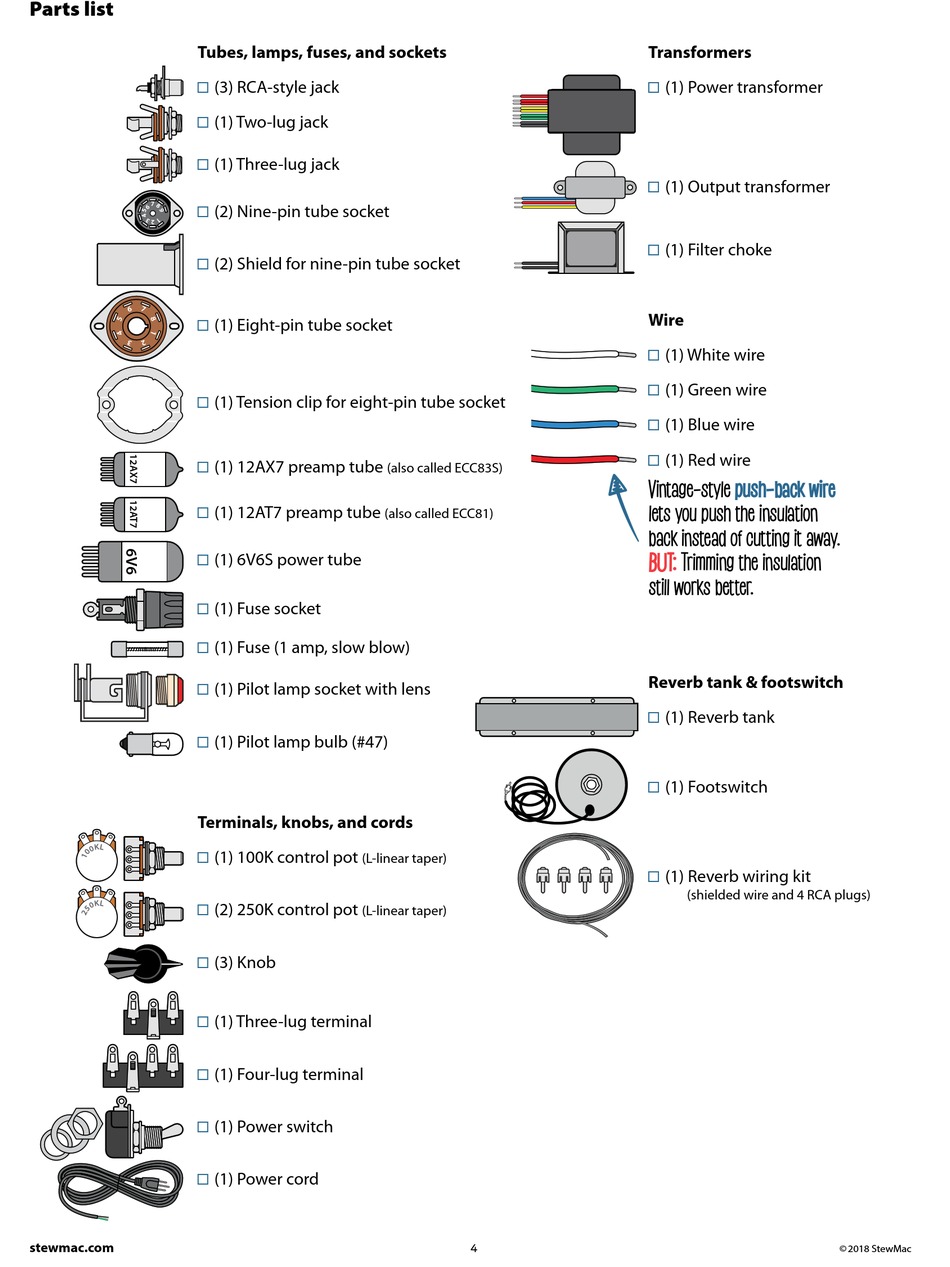

Parts list
Tubes, lamps, fuses, and sockets
r
r
r
7
r
r
r
r
r
r
r
r
r
r
r
Terminals, knobs, and cords
r
r
r
r
r
r
r
stewmac.com
(3) RCA-style jack
(1) Two-lug jack
(1) Three-lug jack
(2) Nine-pin tube socket
(2) Shield for nine-pin tube socket
(1) Eight-pin tube socket
(1) Tension clip for eight-pin tube socket
(1) 12AX7 preamp tube
(also called ECC83S)
(1) 12AT7 preamp tube
(also called ECC81)
(1) 6V6S power tube
(1) Fuse socket
(1) Fuse (1 amp, slow blow)
(1) Pilot lamp socket with lens
(1) Pilot lamp bulb (#47)
(1) 100K control pot
(L-linear taper)
(2) 250K control pot
(L-linear taper)
(3) Knob
(1) Three-lug terminal
(1) Four-lug terminal
(1) Power switch
(1) Power cord
4
Transformers
(1) Power transformer
r
(1) Output transformer
r
(1) Filter choke
r
Wire
(1) White wire
r
(1) Green wire
r
(1) Blue wire
r
(1) Red wire
r
push-back wire
Vintage-style
lets you push the insulation
back instead of cutting it away.
BUT:
Trimming the insulation
still works better.
Reverb tank & footswitch
(1) Reverb tank
r
(1) Footswitch
r
(1) Reverb wiring kit
r
(shielded wire and 4 RCA plugs)
© 2018 StewMac
