Final assembly

STEP 78

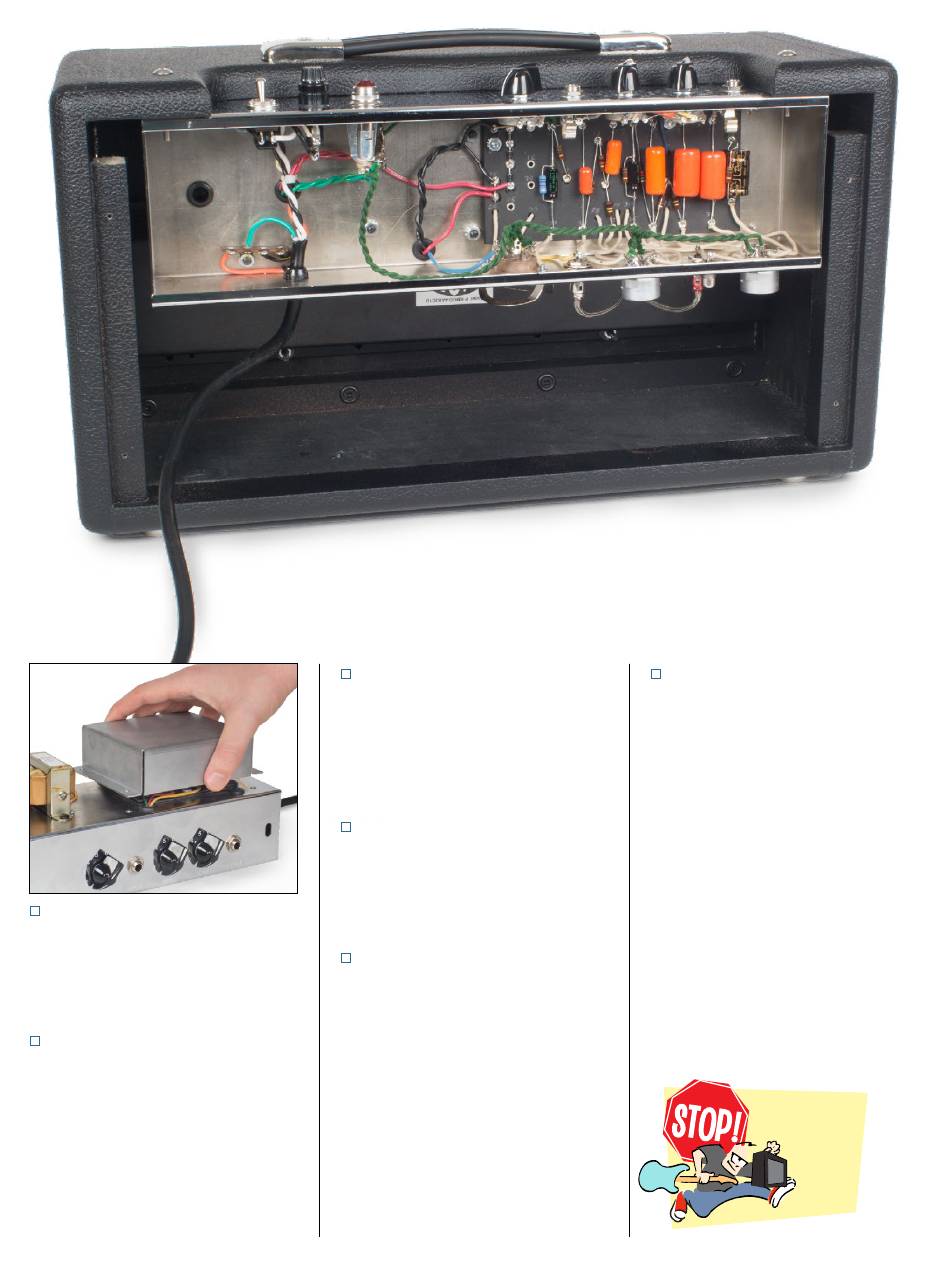

Install the capacitor pan
Use the self-tapping screws to mount
the capacitor pan on the chassis, cov-
ering the filter cap board .
STEP 79
Install the fuse
Insert the 1-amp fuse into the fuse
socket from the front of the chassis .
Make sure the socket cap is secure .
Never use a fuse rated above 1 amp
in this unit .
stewmac.com
STEP 80
Install the pilot lamp bulb
Insert the pilot lamp bulb into its sock-
et from the front of the chassis and
twist until it locks in place . Screw the
red jewel lens over the socket .
STEP 81
Install the three control knobs
Turn the shaft of each pot to zero and
install the knob so that the indicator
line points to number 1 .
STEP 82
Connect the shielded cables to
the reverb tank
Connect the two shielded cables you
assembled in Step 3 to the in and out
jacks on the reverb tank .
31
STEP 83
Install the chassis
Place the chassis in the cabinet . Run
two 10-32 machine screws through
the top of the cabinet into the chassis
and fasten loosely with locknuts .
Hold the upper back panel in place
and position the chassis flush against
the panel . Tighten the locknuts .
Connect the shielded cable from the
reverb tank's in jack to the reverb out
jack on the chassis .
Connect the reverb tank's out cable to
the reverb in jack on the chassis . You'll
install the back panels later .
DON'T INSTALL THE TUBES YET!
DON'T PLUG THE UNIT IN!
The next page is
going to keep you
out of trouble!
