StewMac ’64 REVERB UNIT Assembly Instructions Manual page 22

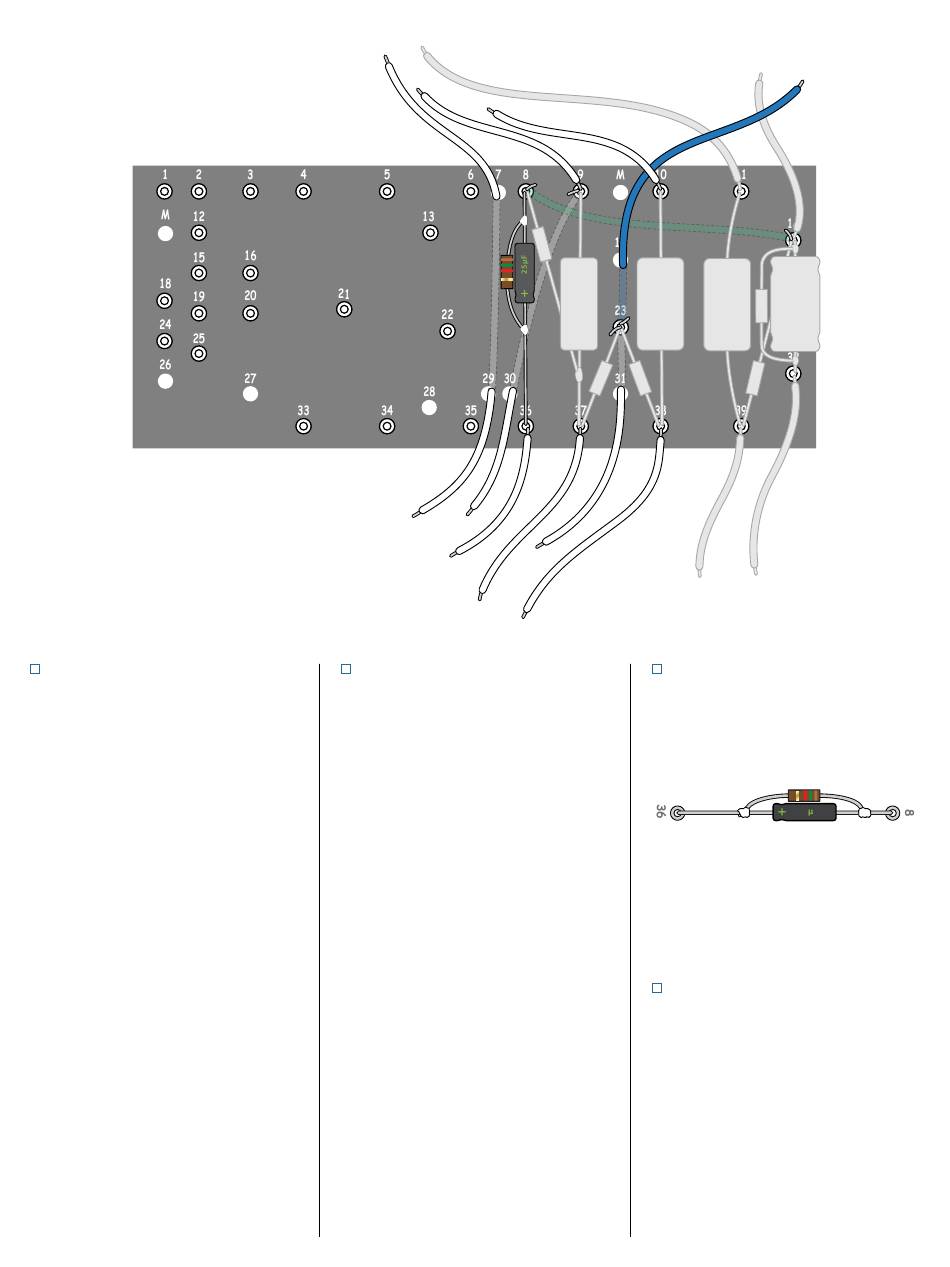

STEP 43
Add four jumpers
Wrap a 5-3/4" white jumper onto
eyelet 38 .
Wrap a 3-3/4" white jumper onto
eyelet 10 .
Wrap a 4-1/2" white jumper onto
eyelet 37 .
Wrap a 3-1/2" white jumper onto
eyelet 9 .
stewmac.com
STEP 44
Add four back-of-board jumpers
Flip the board over and add a 4-3/4"
white jumper to the back of eyelet 23 .
Thread this jumper up through hole
31 and pull it tight to keep it in place .
Flip the board over and add a 6" white
jumper to the back of eyelet 9 . Thread
this jumper up through hole 30 and
pull it tight to keep it in place .
Flip the board over and thread a 9"
white jumper through hole 7 and
thread the other end through hole 29 .
Flip the board over and add a 5"
blue jumper to the back of eyelet 23 .
Thread this jumper up through hole
17 and pull it tight to keep it in place .
20
STEP 45
Add a cap + resistor pairing
Wrap the leads from the 1 .5K resistor
around the leads on the 25μF 50V
capacitor and solder them in place .
25 F
Positive Negative
Note the polarity of the capacitor.
Install this resistor/capacitor assembly
between eyelets 8 and 36, making
sure the capacitor's negative lead
goes to eyelet 8 .
STEP 46
Add two jumpers
Add a 2-3/4" white jumper to eyelet
36 .
Flip the board over and add a 2-3/4"
green jumper between the back of
eyelet 8 and the back of eyelet 14 .
© 2018 StewMac
