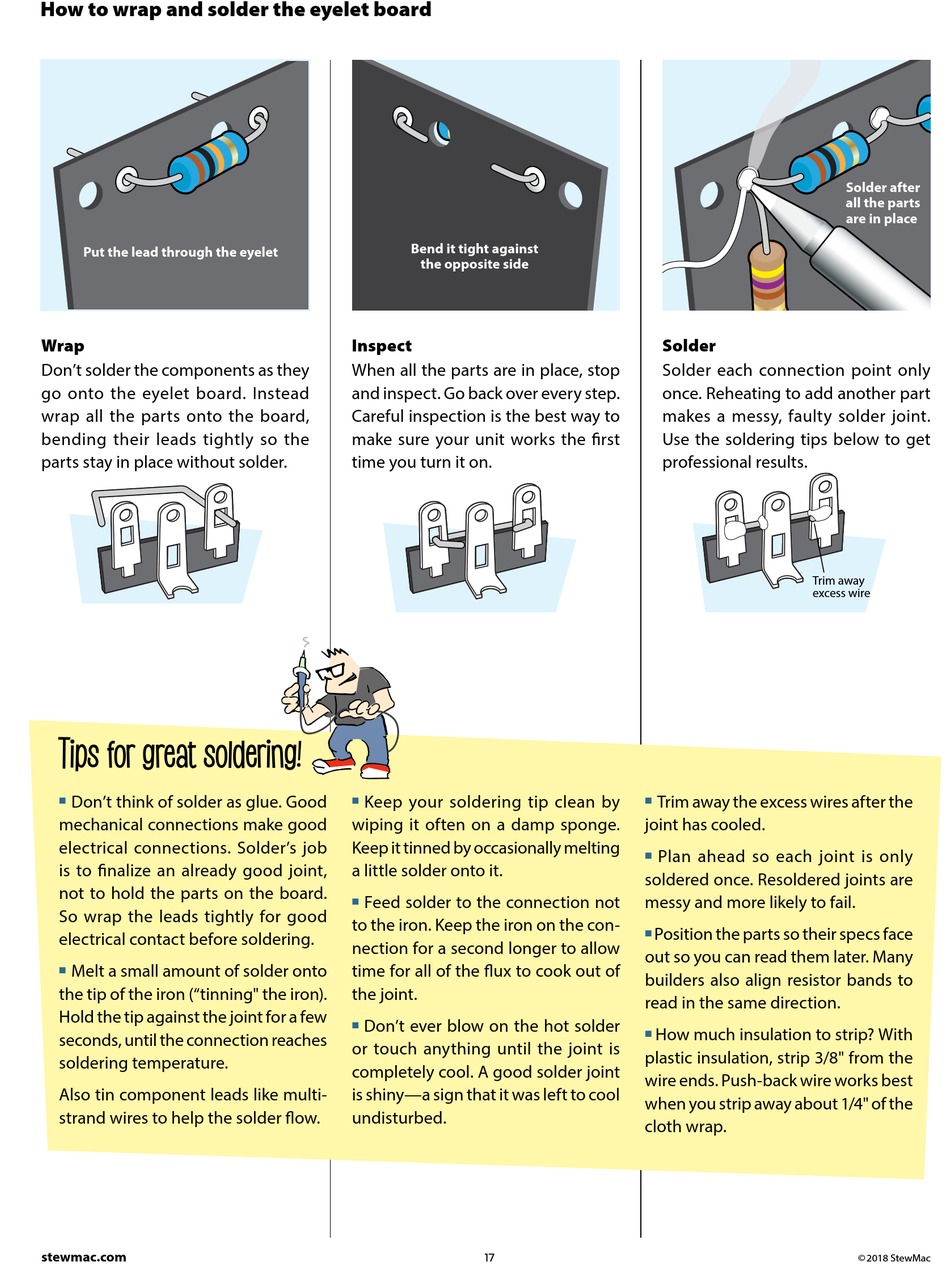

How to wrap and solder the eyelet board

Put the lead through the eyelet
Wrap
Don't solder the components as they
go onto the eyelet board . Instead
wrap all the parts onto the board,
bending their leads tightly so the
parts stay in place without solder .

Tips for great soldering

Don't think of solder as glue . Good
n
mechanical connections make good
electrical connections . Solder's job
is to finalize an already good joint,
not to hold the parts on the board .
So wrap the leads tightly for good
electrical contact before soldering .
Melt a small amount of solder onto
n
the tip of the iron ("tinning" the iron) .
Hold the tip against the joint for a few
seconds, until the connection reaches
soldering temperature .
Also tin component leads like multi-
strand wires to help the solder flow .
stewmac.com
Bend it tight against
the opposite side
Inspect
When all the parts are in place, stop
and inspect . Go back over every step .
Careful inspection is the best way to
make sure your unit works the first
time you turn it on .
!
Keep your soldering tip clean by
n
wiping it often on a damp sponge .
Keep it tinned by occasionally melting
a little solder onto it .
Feed solder to the connection not
n
to the iron . Keep the iron on the con-
nection for a second longer to allow
time for all of the flux to cook out of
the joint .
Don't ever blow on the hot solder
n
or touch anything until the joint is
completely cool . A good solder joint
is shiny—a sign that it was left to cool
undisturbed .
Solder
Solder each connection point only
once . Reheating to add another part
makes a messy, faulty solder joint .
Use the soldering tips below to get
professional results .
Trim away the excess wires after the
n
joint has cooled .
Plan ahead so each joint is only
n
soldered once . Resoldered joints are
messy and more likely to fail .
Position the parts so their specs face
n
out so you can read them later . Many
builders also align resistor bands to
read in the same direction .
How much insulation to strip? With
n
plastic insulation, strip 3/8" from the
wire ends . Push-back wire works best
when you strip away about 1/4" of the
cloth wrap .
17
Solder after
all the parts
are in place
Trim away
excess wire
