Filter Cap Eyelet Board - StewMac ’64 REVERB UNIT Assembly Instructions Manual

Wrapping parts onto the filter cap board
STEP 33
Add three capacitors
Use the small eyelet board for the
three filter capacitors . Note that
these caps are polarized and
must be installed in the correct
orientation.
Add a 22μF electrolytic capacitor
with the positive lead wrapped
through eyelet F and the negative
lead through eyelet B .
Add another 22μF electrolytic cap
with the positive lead through eyelet
G and the negative through eyelet C .
Wrap a third 22μF electrolytic cap
between eyelets H (positive lead) and
D (negative) .
stewmac.com
STEP 34
Add two jumpers
Wrap a 1-1/4" green jumper between
eyelets B and C .
Add another 1-1/2" green jumper
between eyelets C and D .
STEP 35
Add one resistor
Add a 10K resistor between eyelets
G and H .
18

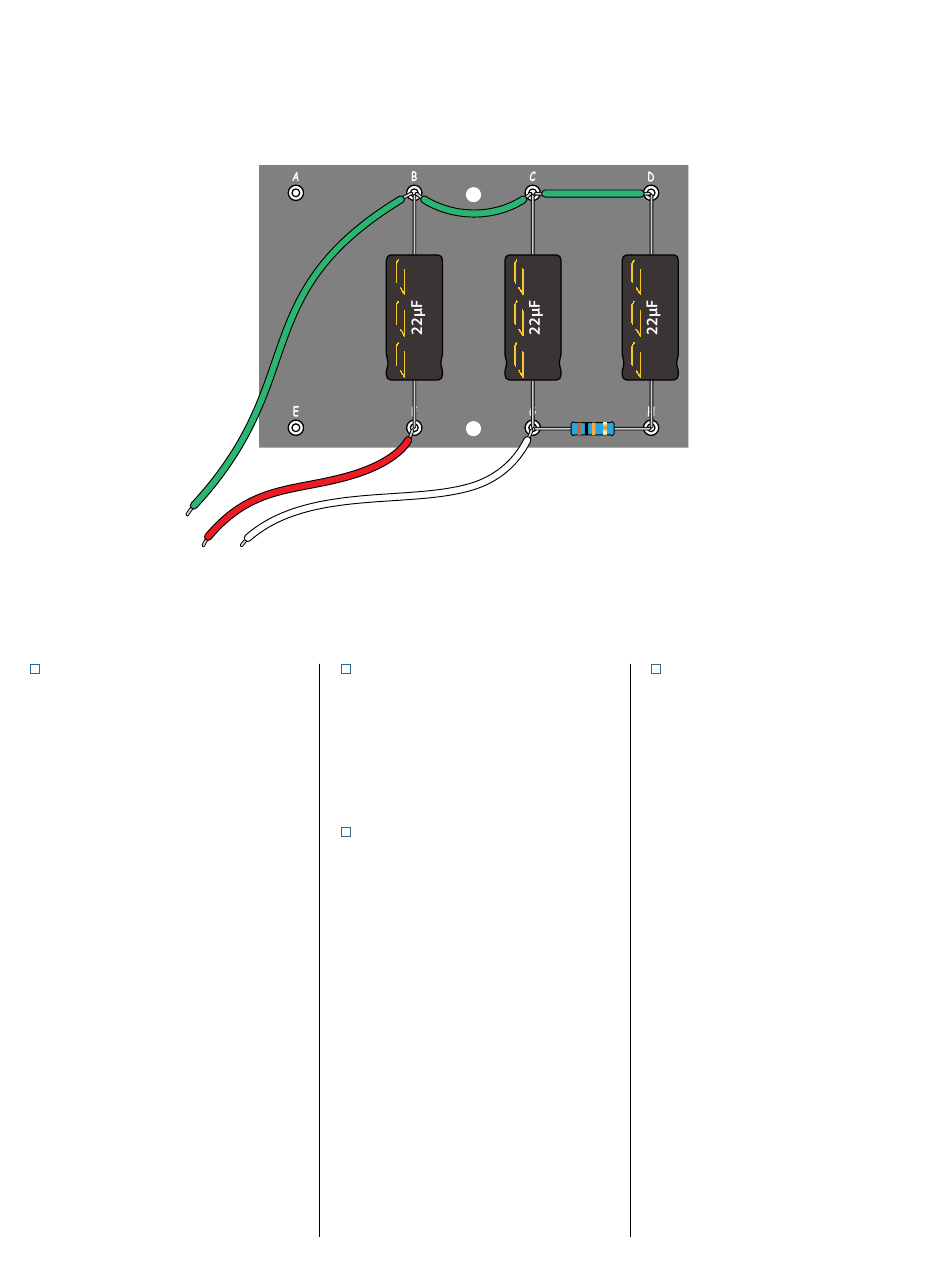

STEP 36
Add three more jumpers
Add a 6" green jumper to eyelet B .
Add a 5-1/4" red jumper to eyelet F .
Add a 5-1/4" white jumper to eyelet G .
Set filter cap board aside for now, and
let's get started on the main board!
