POWER

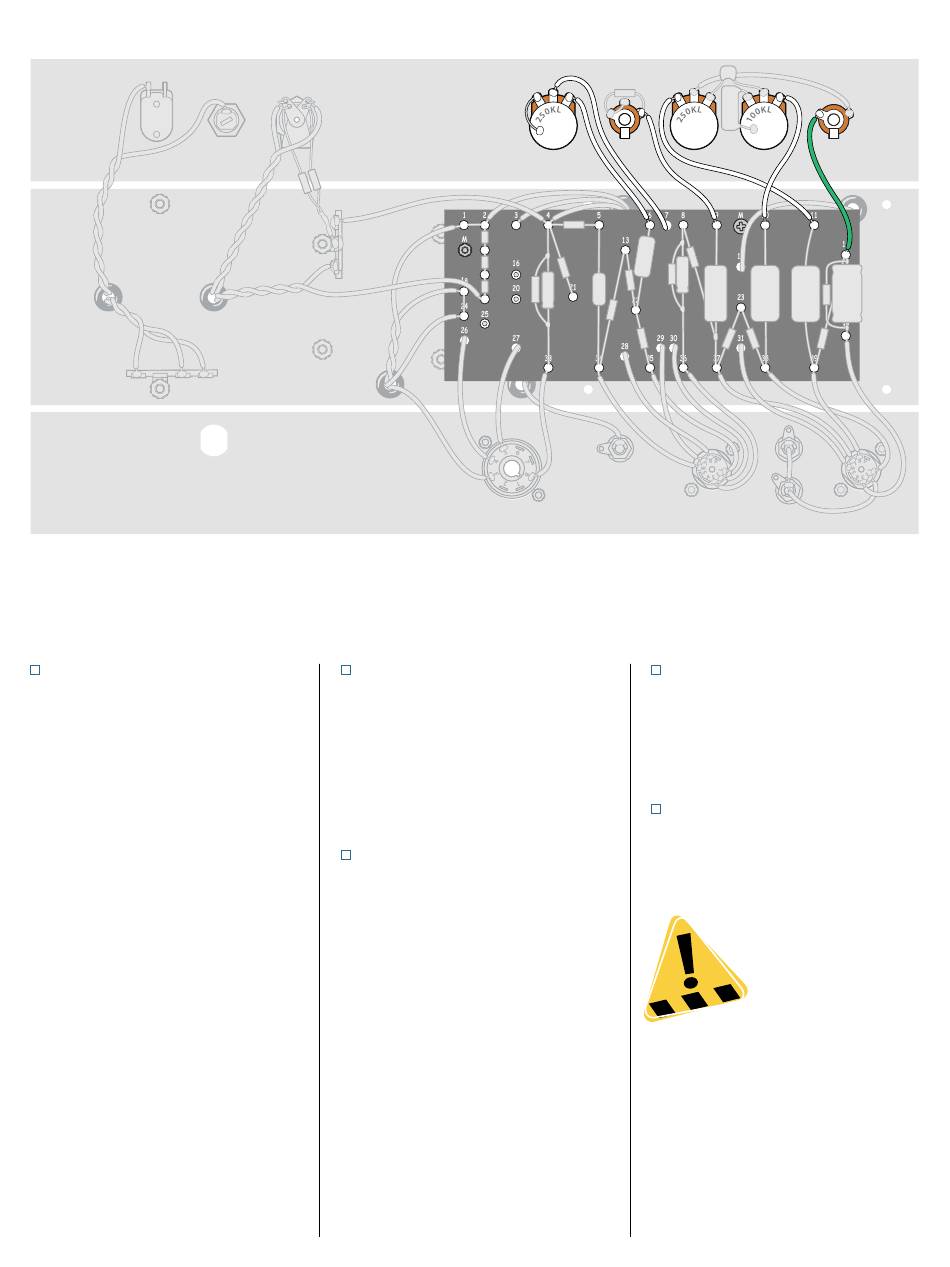

STEP 67
Solder the dwell pot
Cut a 1" green jumper and remove
the insulation . Solder one end of this
to the left lug of the dwell pot . Solder
the other end to the back of the pot .
Solder the white jumper from hole
7 to the middle lug of the dwell pot .
Solder the white jumper from eyelet 6
to the right lug of the dwell pot .
stewmac.com
FUSE PILOT LIGHT
STEP 68
Solder the input jack
Solder the white jumper from eyelet 9
to the right lug of the input jack along
with the resistor lead already in place .
Trim any excess leads and inspect all
three solder joints on the jack .
STEP 69
Solder the mix pot
Solder the white jumper from eyelet
11 to the left lug of the mix pot .
Trim the excess wires .
DWELL INPUT
REVERB IN
V3
6V6
26
MIX TONE OUTPUT
REVERB OUT
V2
12AT7
FOOTSWITCH
STEP 70
Solder the tone pot
Solder the white jumper from eyelet
10 to the right lug of the tone pot .
Trim the excess wires .
STEP 71
Solder the output jack
Solder the green jumper from eyelet
14 to the left lug of the output jack .
Next you'll install the
wires that power the
heating elements in
the tubes . That part's
a little tricky, so review the following
page carefully before you start on it .
V1
12AX7
