StewMac ’64 REVERB UNIT Assembly Instructions Manual page 15

POWER

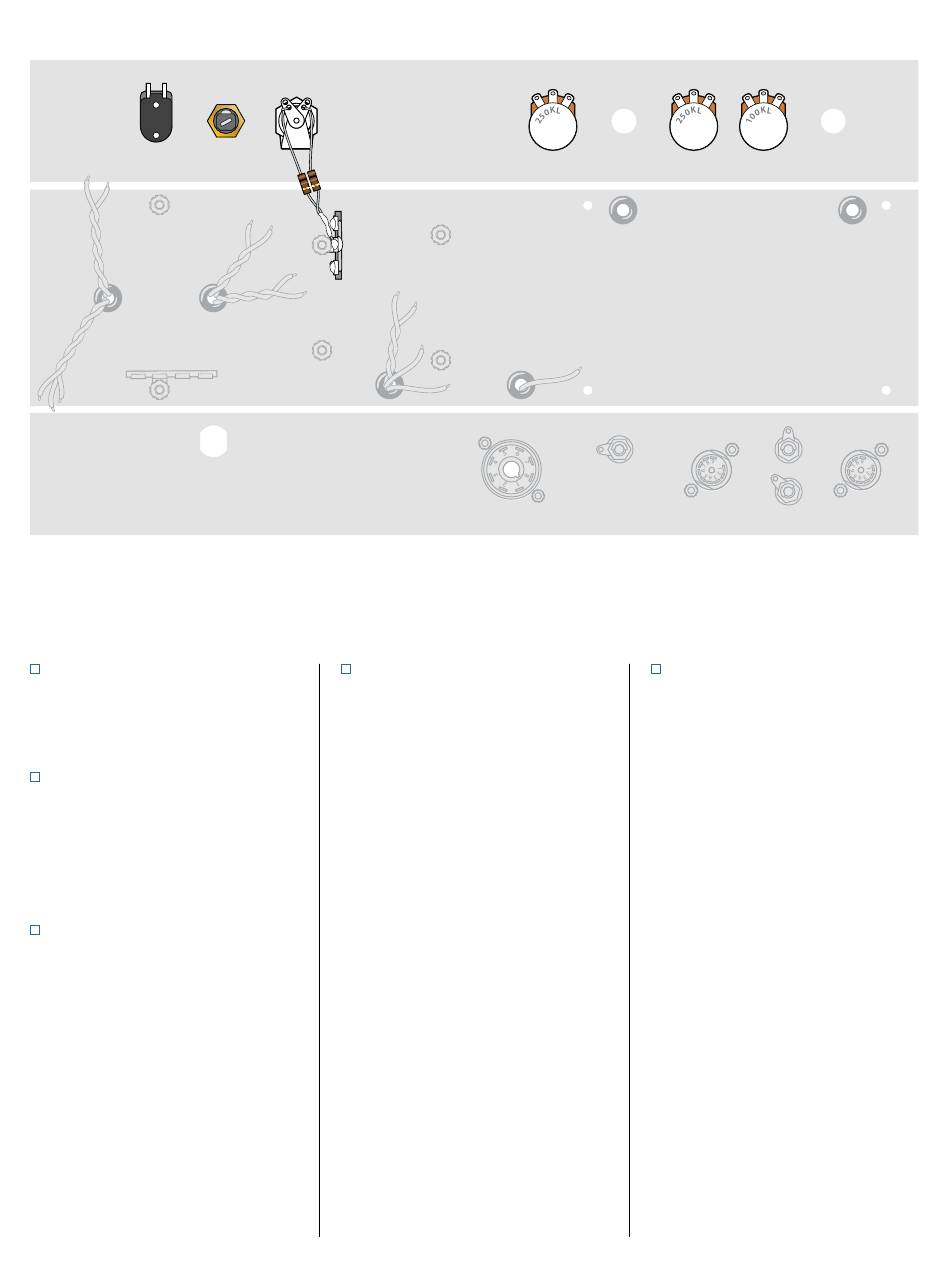

STEP 17
Install the power switch
Mount the power switch with its two
lugs facing up for soldering later .
STEP 18
Install the fuse socket
Mount the fuse socket so its side lug
is facing up, toward the open side of
the chassis . This makes it easier to
solder later .
STEP 19
Install the pilot lamp socket
Mount the pilot lamp socket by screw-
ing the lens from the outside into the
socket assembly . Position the socket
so the tabs are facing up for soldering .
stewmac.com
FUSE PILOT LIGHT
STEP 20
Connect two 100Ω resistors to
the lamp socket
Twist one lead from each of two 100Ω
resistors together to join them . Wrap
the other leads of these resistors to
the lugs of the pilot lamp socket .
Don't solder the pilot lamp lugs yet,
but solder the twisted resistor leads
to each other and then solder the
twisted leads to the middle lug of
the three-lug terminal strip under the
pilot lamp assembly .
DWELL INPUT
REVERB IN
V3
6V6
13
MIX TONE OUTPUT
REVERB OUT
V2
12AT7
FOOTSWITCH
STEP 21
Install the control pots
Mount the pots so their lugs are facing
up . When we refer to these lugs as left
or right, it's assuming you're looking
at the pot from the same point of view
as the wiring diagram . Mount them
left to right, as follows:
Dwell: 250KL
Mix: 250KL
Tone: 100KL
V1
12AX7
