StewMac ’64 REVERB UNIT Assembly Instructions Manual page 18

POWER

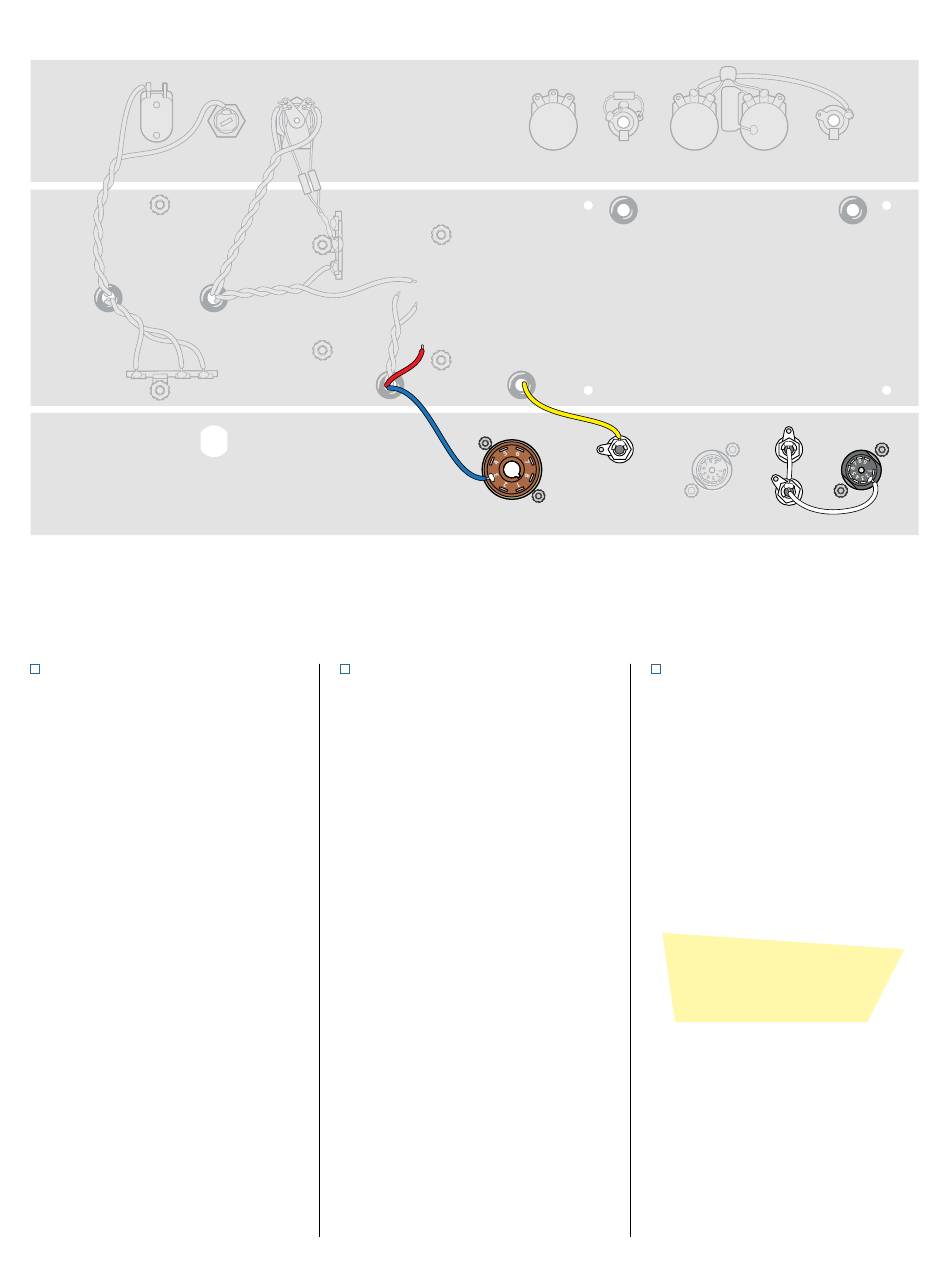

STEP 30
Connect output transformer's
blue and yellow leads
Trim the blue wire from the output
transformer to an appropriate length
and solder it to pin 3 of socket V3 .
Trim the yellow wire from the output
transformer to an appropriate length
and solder it to the center lug of the
reverb in jack .
Leave the red output transformer lead
free for now; you will install it to the
eyelet board later on .
stewmac.com
FUSE PILOT LIGHT
STEP 31
Add two jumpers
Add a 2" white jumper between pin 2
of socket V1 and the center lug of the
footswitch jack . Solder this jumper in
to pin 2 of socket V1 .
Add a 3/4" white jumper between the
center lug of the reverb out jack and
the center lug of the footswitch jack .
Solder the connection to the center
lug of the reverb out jack .
Solder the connection to the center
lug of the footswitch jack along with
the jumper from socket V1 .
DWELL INPUT
REVERB IN
V3
6V6
16
MIX TONE OUTPUT
REVERB OUT
V2
12AT7
FOOTSWITCH
STEP 32
Inspect and double-check
This is a good time to step away from
the project for a few minutes and
take a break .
When you're ready to go at it again,
carefully review every connection
you've made so far .
When everything checks out, you're
ready to move on to the eyelet board .
Be suspicious!
Assume there's a mistake and
you're the one who'll find it.
V1
12AX7
© 2018 StewMac
