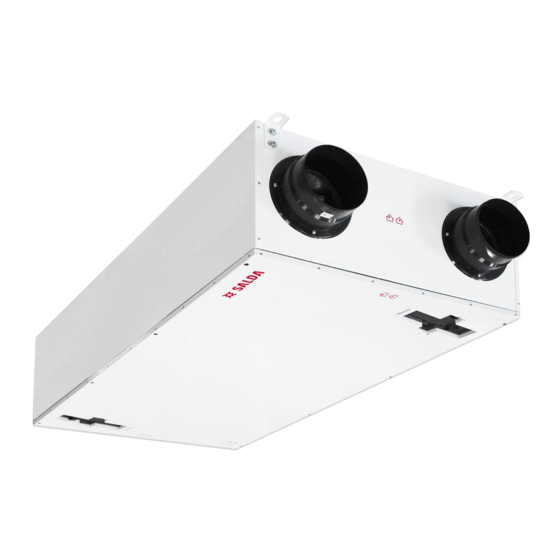

Salda Smarty 4X P Series Mounting And Installation Instructions Manual
Ahu with heat recovery
Source: salda.lt/en, vetter-lufttechnik.de
Related Manuals for Salda Smarty 4X P Series
Summary of Contents for Salda Smarty 4X P Series

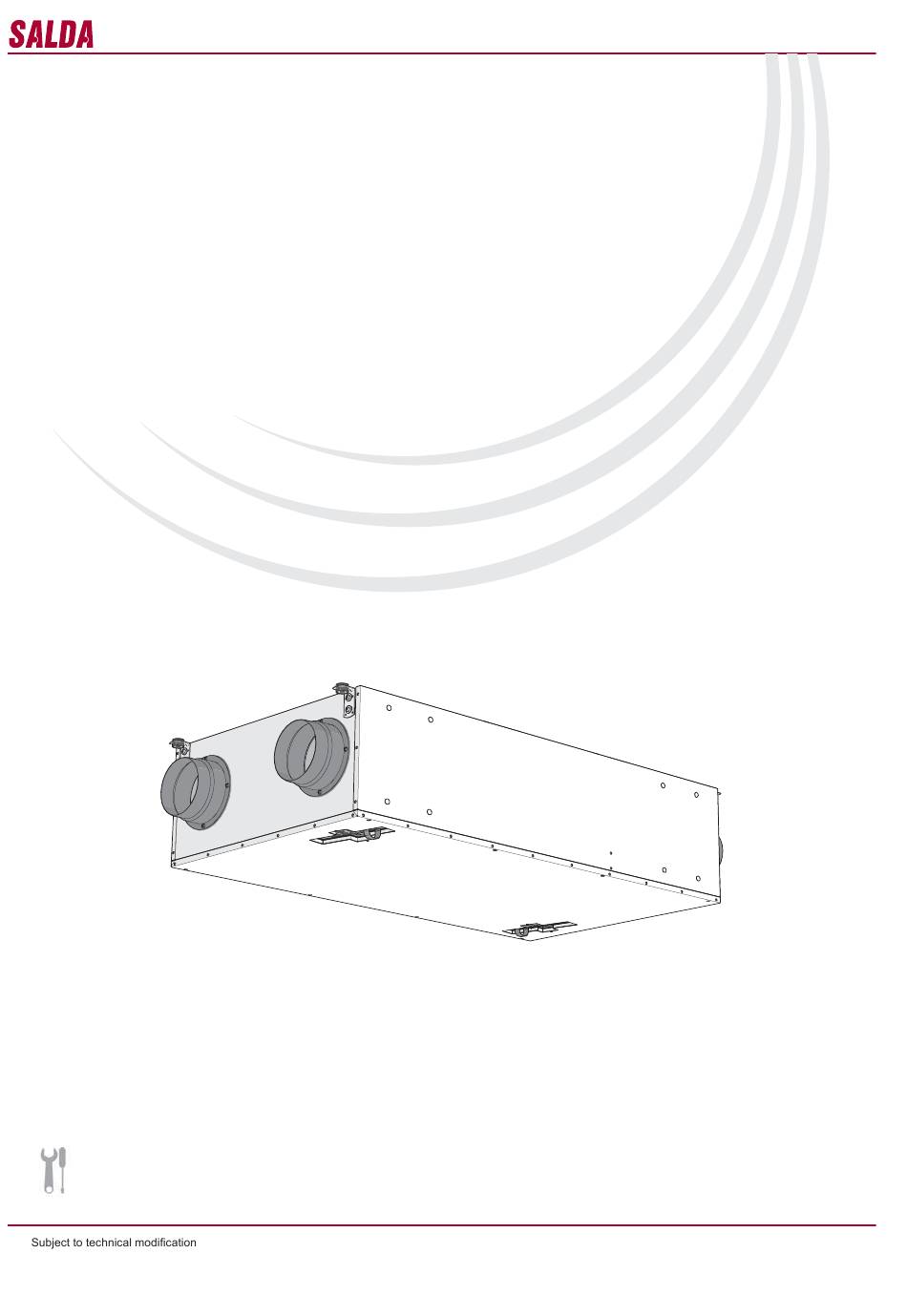

- Page 1 AHU WITH HEAT RECOVERY Smarty 4X P Mounting and installation instructions Smarty 4X P_MI_P0116_AZ_0001...
- Page 2 Connection of Remote Control Panel or ModBus Fire Protection Signal Input (Fire protection input (NC)) Connection of the unit to electric network Start-up recommendations System protection Recommendations before the start of the unit (before the Possible faults and troubleshooting www.salda.lt...
- Page 3 The heating appliance can be starved Salda Antifrost and use an external preheater for heat exchanger anti-frost protection (see Salda Antifrost function on the Remote controller manual) Warning –...
- Page 4 Not suitable for swimming pools, saunas and other similar facilities. 1225 mm 408,5 mm ø 21,3 mm G3/8" 150/160 mm* 36,5 mm * With respect to the diameter of a used air duct 1381,5 mm Smarty 4X P Weight (without package and accessories) [kg] www.salda.lt...
- Page 5 [mm] [mm] [mm] Fan type Impeller type backwards curved wings backwards curved wings Device protection class IP 32 IP 32 Smarty 4X P 63 Hz 1 kHz 2 kHz 4 kHz 8 kHz Supply Exhaust Surrounding Measured at NOTE www.salda.lt...
-
Page 6: Supply Air
P [W] 1000 v [m /h] v [l/s] 1200 Δ P [Pa] stat 1000 SFP 2,5 SFP 2,0 SFP 1,5 v [m /h] v [l/s] Δ P [Pa] stat v [m /h] Extract air Outdoor air Standart EN 13141-7 www.salda.lt... - Page 7 Transporting of the polluted air impossible Outdoor air temeperature without preheater (Salda Antifrost** [°C] Outdoor air temeperature without preheater (Salda Antifrost** on) [°C] Outdoor air temperature limits with a selected pre-heater on an air duct [°C] Outdoor air max humidity Temperature limits of an extracted air [°C]...
- Page 8 12. Condensate tray 13. Exhaust air fan (IV) 14. Condensate discharge ducts 6. Control board 16. Extract air sensor (TA) 7. Switching Power Supply 17. EPP casing 9. Supply air fan (PV) outdoor air supply air exhaust air extract air www.salda.lt...
- Page 9 MUTE 160x600 MUTE 160x900 AKS 160-10 MUTE 160x1200 PATROL-701 774451 + UG-3-A40 Incl Siphon Siphon D20 774411 VR-0,6M Duct smoke detector UG-3-A4O incl VR-0,6M Switch 774451+774411 ZEPSM001 Motion detector PATROL-701 Ceiling presence detector IR24-PC Wall presence detector IR24-P Siphon D20 www.salda.lt...
- Page 10 (turn the impeller by hand) and if the electric circuit insulation is not damaged or the moisture is accumulated. Max. number of transported pack- Dimensions of a single package Dimensions of multipackage ages Unit H1 [mm] L1 [mm] W1 [mm] H2 [mm] L2 [mm] W2 [mm] [pcs.] Smarty 4X P 1120 2240 www.salda.lt...
- Page 11 Exhaust air temperature sensor (** - shall be ordered TE** Stouch Control panel separately) Motion detector Outdoor air damper actuator Smoke detector Exhaust air damper actuator Supply and exhaust air grilles KE (EKA) Electric heater PE (EKA Electric preheater NIS/EKA) www.salda.lt...
- Page 12 MUTE*** Exhaust air temperature sensor (** - shall be ordered TE** Stouch Control panel separately) Motion detector Outdoor air damper actuator Smoke detector Exhaust air damper actuator Supply and exhaust air grilles KE * (EKA) Electric heater ByPass motor www.salda.lt...
- Page 13 Ducts are connected to the unit in such way that they could be easily disassembled and the heater could be removed from the unit when performing service or repair works. 2. Horizontal mounting on the wall with condensate tube downwards. 1 slope towards tube. 3. Mounting on the wall with condensate tube downwards. Any slopes are necessary. c. 1 slope towards tube. www.salda.lt...
- Page 14 Smarty 4X P screws are included. Possible positions for condensation measurement: must be protected using thermal insulation! www.salda.lt...
- Page 15 (it’s possible to hold with a screwdriver or 1 Euro coin by putting it in the notch on the pipe). Screw the nut with a wrench (No. 27) until a top part presses in the EPP casing (level with a surface or slightly enters into it). Attention: Screwing force may not exceed 2 Nm. Note. Before every heating season the condensate tube shall be www.salda.lt...
- Page 16 Electrical equipment connection to the control board terminals. Control board connectors shall be of the following cross sectional area. Control board MiniMCB MiniEX1 Power supply The 48 V direct current (DC) power source is intended to use only for power supply of Smarty 4X P fans. www.salda.lt...
- Page 17 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 +24VDC PCB POWER SUPPLY 3 2 1 3 2 1 3 2 1 4 3 2 1 www.salda.lt...
- Page 18 12VDC Electric Preheater manual protection (NC) 12VDC Bypass closed (NC) 12VDC Not used 12VDC AI1 (NTC) Supply air temperature sensor AI2 (NTC) Fresh air temperature sensor AI3 (NTC) Extract air temperature sensor AI4 (NTC) Exhaust air temperature sensor (optional) www.salda.lt...
- Page 19 Contactor No. Contactor name Functional block name miniMCB 24VDC POWER 24VDC power supply input 230VAC Power supply for X10 and X12 Preheater power line (max. 2kW) Not used Supply fans power line - PV Extract fans power line - IV www.salda.lt...
- Page 20 Functional block name miniMCB 24VDC Fig. 3. EX1 controller zones Connector Contactor No. Contactor name Functional block name miniEX1 AI1 (0-10V) A1-Supply air CO or RH (input 0-10VDC) 24VDC AO1 (0-10V) Hydraulic heater water temperature sensor AI2 (NTC) 24VDC 24VDC www.salda.lt...
- Page 21 12VDC 12VDC connected using external commutation components. Before choosing pre-heater see the table “Capacity of the pre-heaters according to the regions”. Installation diagram Installation based on air direction Air Damper M2 -> Pre-Heater PE -> Recuperator. (EKA NIS/ EKA) www.salda.lt...
- Page 22 Smarty 4X P Wiring diagram Automation controller A (X2) and D (X12) zones. www.salda.lt...
- Page 23 Smarty 4X P nected using external commutation components. Installation diagram Electric heater shall be installed inside air duct. Arrangement based on air direction Electric Heater -> Supply Air Sensor (TJ). 0-10V Mini MCB www.salda.lt...
- Page 24 Smarty 4X P Wiring diagram power source. Smarty 4X P 1.1 D zone X10 and C zone X23 of automation controller. Smarty 4X P 1.2 www.salda.lt...
- Page 25 Smarty 4X P When using the supply air heater, the supply air sensor (SS) shall be installed downstream the heater (or cool- ing, bend of the air transportation system. www.salda.lt...
- Page 26 Exhaust air sensor is not included with a device and should be ordered as an accessory. Installation diagram It is installed in the air duct of exhaust air. Control board Exhaust Wiring diagram air temp. Automation controller A (X6) zone sensor(optional) 1 2 3 4 5 6 7 8 www.salda.lt...
- Page 27 1 2 3 Transmiter 1 Extract air CO or RH (input 0-10VDC) connection. Installation diagram. Transmitter shall be installed inside extract air duct or room. Wiring diagram. Automation controller A zone X7. 1 2 3 4 5 6 7 8 www.salda.lt...
- Page 28 Tool for drilling holes are required for its installation. 3000 2500 Reduced concentration, drowsi- ness, headache, etc. 2000 1500 Pettenkofer limit Disturbs 1000 Pettenkofer limit Pleasant Outdoor air Duration of the presence in the room in hours www.salda.lt...
- Page 29 1 2 3 4 5 6 the power network. performed through the two-pole circuit breaker (by disconnecting phase pole and neutral). power network. The manufacturer does not assume any liability for personal injuries and property damage due to non- conformance with the provided instructions. www.salda.lt...
- Page 30 Air supply heater or heater is not operating or malfunctioning (if installed) protection Check if fans are rotating Manual protection is activated elimination. Filter replacement needed Filters are clogged and no message is shown on the remote control www.salda.lt...
