Kia Optima 2001-2006.5
KIT FEATURES
• ISO DIN radio provision with pocket
KIT COMPONENTS
A) Radio housing
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7301
Antenna Adapter: • Not required
TOOLS REQUIRED
Phillips screwdriver
METRA. The World's best kits.

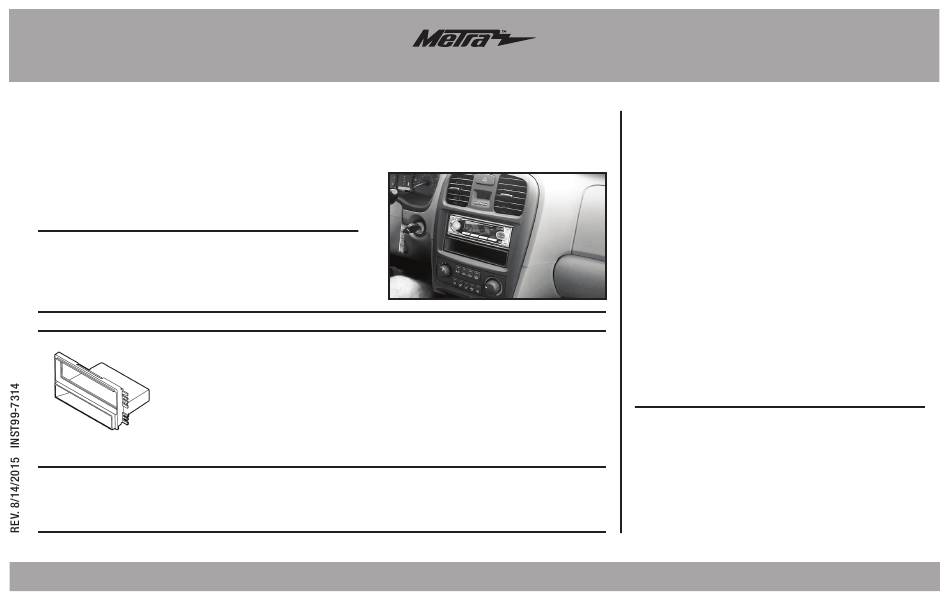

Installation instructions for part 99-7314
99-7314
metraonline.com
™
Table of Contents
- ISO DIN radio provision with pocket ...................... 3
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
