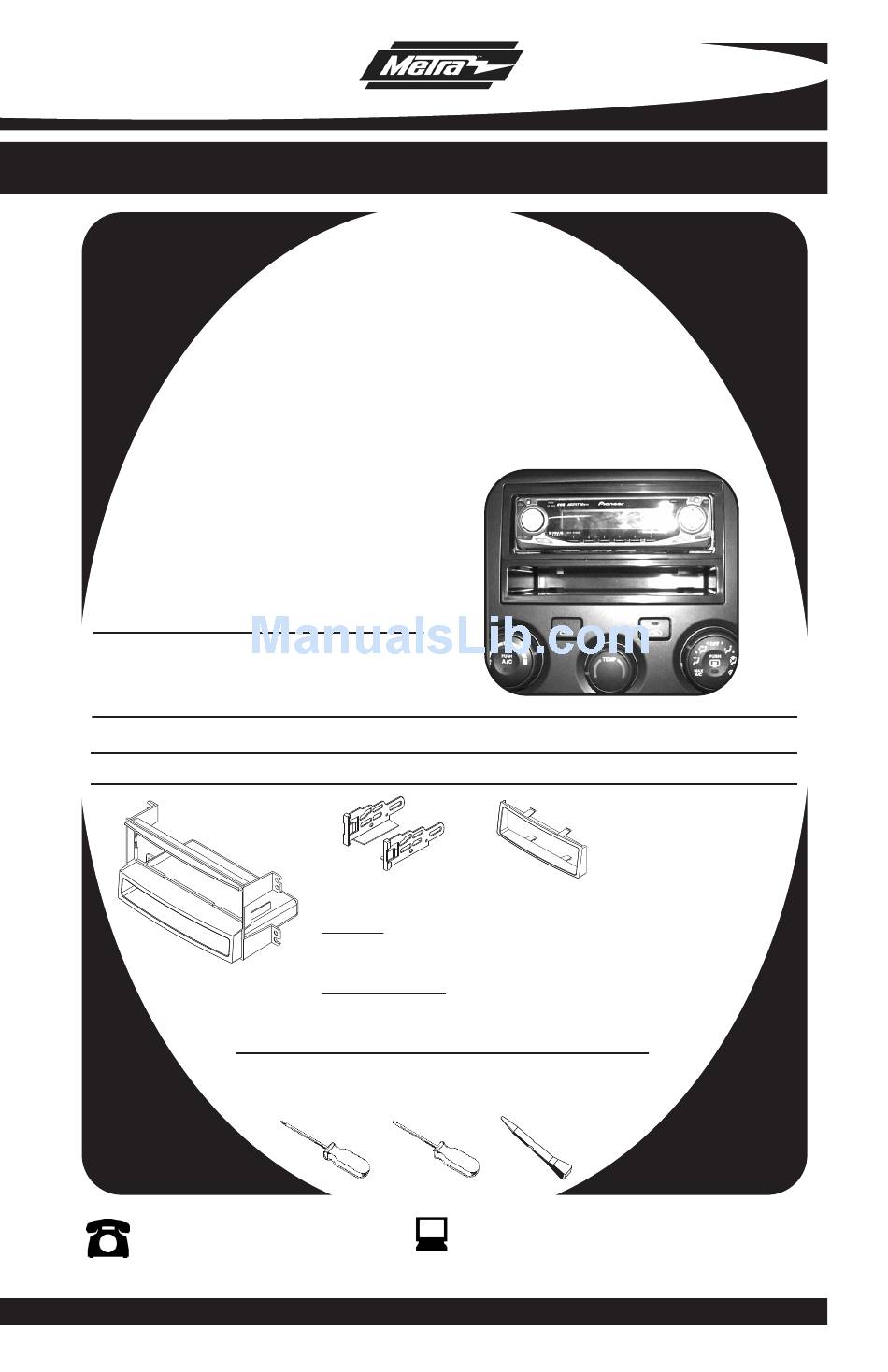

INSTALLATION INSTRUCTIONS FOR PART 99-7324
99-7324
KIT FEATURES
• DIN head unit provision with pocket
• ISO DIN head unit provision with pocket
KIT COMPONENTS

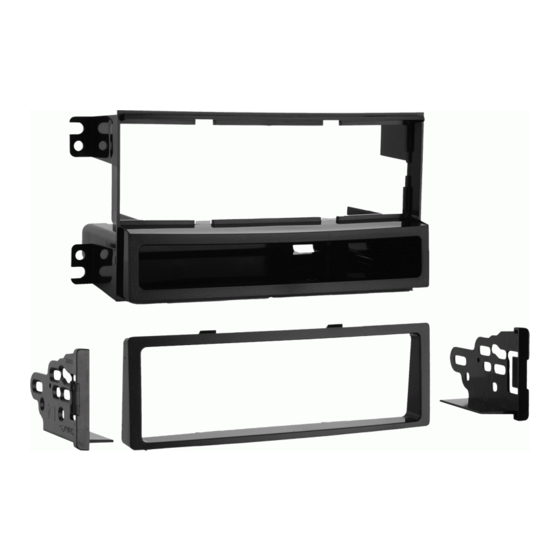

A) Radio Housing • B) ISO Brackets • C) Trim Plate
A
Phillips Screwdriver • Small Flat Blade Screwdriver/
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
KIA Optima
2006.5-2010
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - Hyundai 2006-up/KIA harness 2004-up
• 70-7303 - Hyundai / KIA Harness 2009
Antenna Adapter:
• 40-KI11 - 2009-10 Kia Optima
TOOLS REQUIRED:
Panel Removal Tool
www.metraonline.com
C
Advertisement
Table of Contents
Related Manuals for Metra Electronics KIA OPTIMA 99-7324
Summary of Contents for Metra Electronics KIA OPTIMA 99-7324
- Page 1 • 70-1004 - Hyundai 2006-up/KIA harness 2004-up • 70-7303 - Hyundai / KIA Harness 2009 Antenna Adapter: • 40-KI11 - 2009-10 Kia Optima Phillips Screwdriver • Small Flat Blade Screwdriver/ 1-800-221-0932 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION APPLICATIONS 2006.5-2010 TOOLS REQUIRED: Panel Removal Tool www.metraonline.com...
- Page 2 TABLE OF CONTENTS Dash Disassembly - Kia Optima 2006.5-2010 ........1 Kit Assembly * - Din Head Unit provision with Pocket .
- Page 3 KIA OPTIMA 2006.5-2010 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the panel sur- rounding the radio including the a/c vents and climate controls. (Figure A) Remove (4) Phillips screws securing radio. Unplug and remove radio. (Figure B) Continue to kit assembly.
- Page 4 DIN HEAD UNIT PROVISION Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward (Figure A) Slide the aftermarket radio into the cage until it snaps into place.
- Page 5 ISO DIN HEAD UNIT PROVISION Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) Slide the radio into the radio open- ing until the side clips snap into place.
-
Page 6: Final Assembly
FINAL ASSEMBLY Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. Reassemble radio and dash assemblies in reverse order of disassembly. - Page 7 99-7324 NOTES...
- Page 8 99-7324 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/27/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7324...
