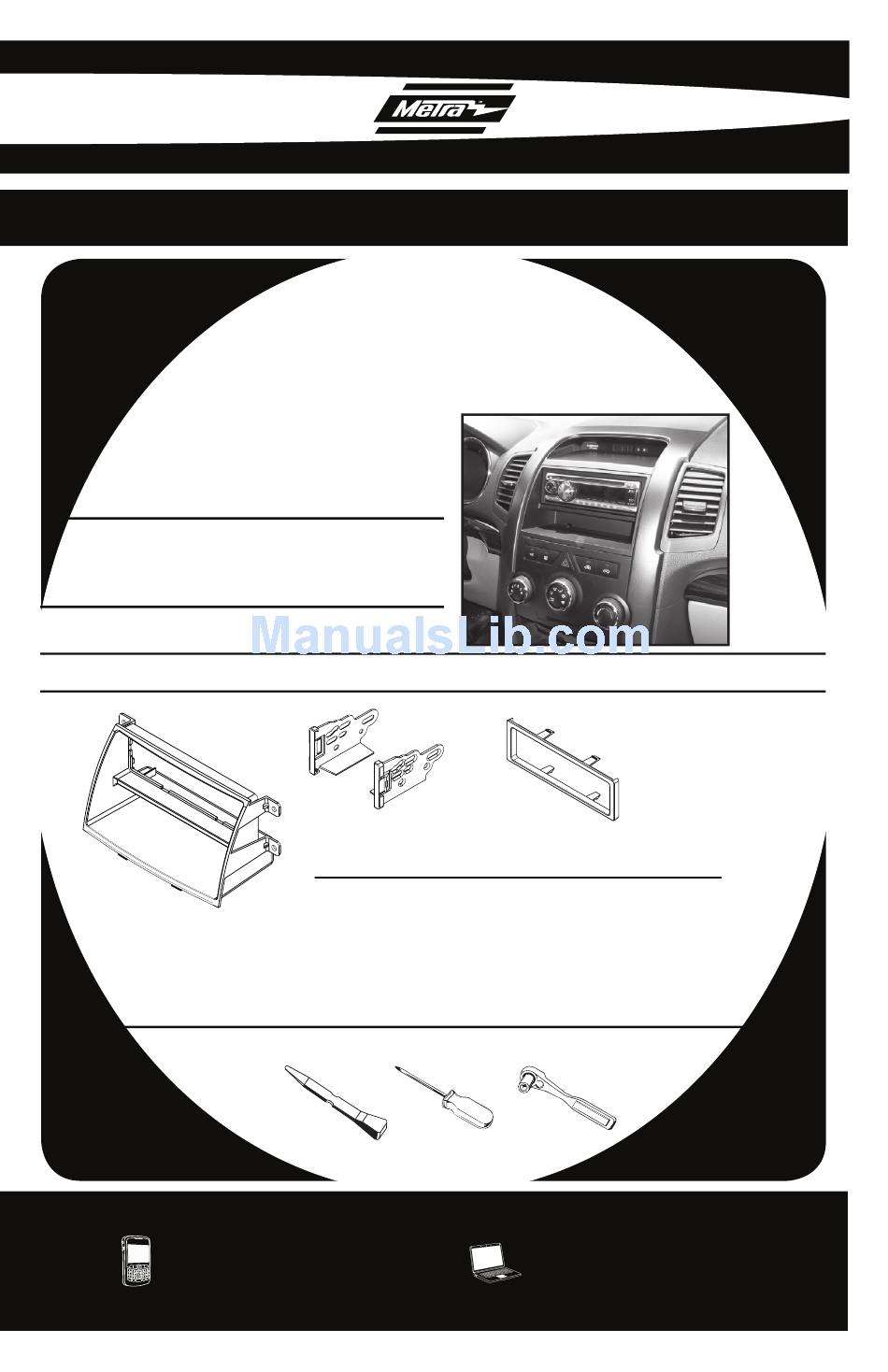

INSTALLATION INSTRUCTIONS FOR PART 99-7340B
APPLICATIONS
2011 KIA SORENTO
99-7340B
KIT FEATURES
• DIN Head unit provisions with pocket
• ISO DIN Head unit provision with pocket
• Painted Matte Black to Match Factory
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate
B
C
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• 70-7303 2009-Up Kia/Hyundai Harness
• 40-KI11 2007-Up Kia Antenna Adapter
TOOLS REQUIRED
• Panel Removal Tool • Phillips Screwdriver • Socket Wrench
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
metraonline.com
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-7340B
Summary of Contents for Metra Electronics 99-7340B
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7340B APPLICATIONS 2011 KIA SORENTO 99-7340B KIT FEATURES • DIN Head unit provisions with pocket • ISO DIN Head unit provision with pocket • Painted Matte Black to Match Factory KIT COMPONENTS • A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate WIRING &...
- Page 2 INSTALLATION INSTRUCTIONS FOR PART 99-7340B TABLE OF CONTENTS DASH DISASSEMBLY • 2011 KIA SORENTO ..... . 1-2 KIT ASSEMBLY 2011 KIA SORENTO •...
- Page 3 99-7340B DASH DISASSEMBLY 2011 KIA SORENTO Remove Shifter knob. (Fig. A) Remove the shifter surround panel. (Fig. B) Remove panel under the heater & A/C controls. (Fig. C) Continued on Pg. 2 ...
- Page 4 99-7340B DASH DISASSEMBLY 2011 KIA SORENTO Remove (2) Phillips screws from bottom and remove center fascia panel. (Fig. D) Remove (4) Phillips screws securing the heater & A/C controls. (Fig. E) Remove (4) Phillips screws securing the radio. (Fig. F)
- Page 5 99-7340B KIT ASSEMBLY DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Fig. A) Snap the pocket into the bottom opening of the radio housing. (Fig. B) Slide the aftermarket head unit into the cage and secure.
-
Page 6: Iso Din Head Unit Provision
99-7340B KIT ASSEMBLY ISO DIN HEAD UNIT PROVISION Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Fig. A) Slide the head unit into the radio opening until the side clips engage. (Fig. B) Snap the Trim plate into the Radio Housing. - Page 7 INSTALLATION INSTRUCTIONS FOR PART 99-7340B NOTES...
