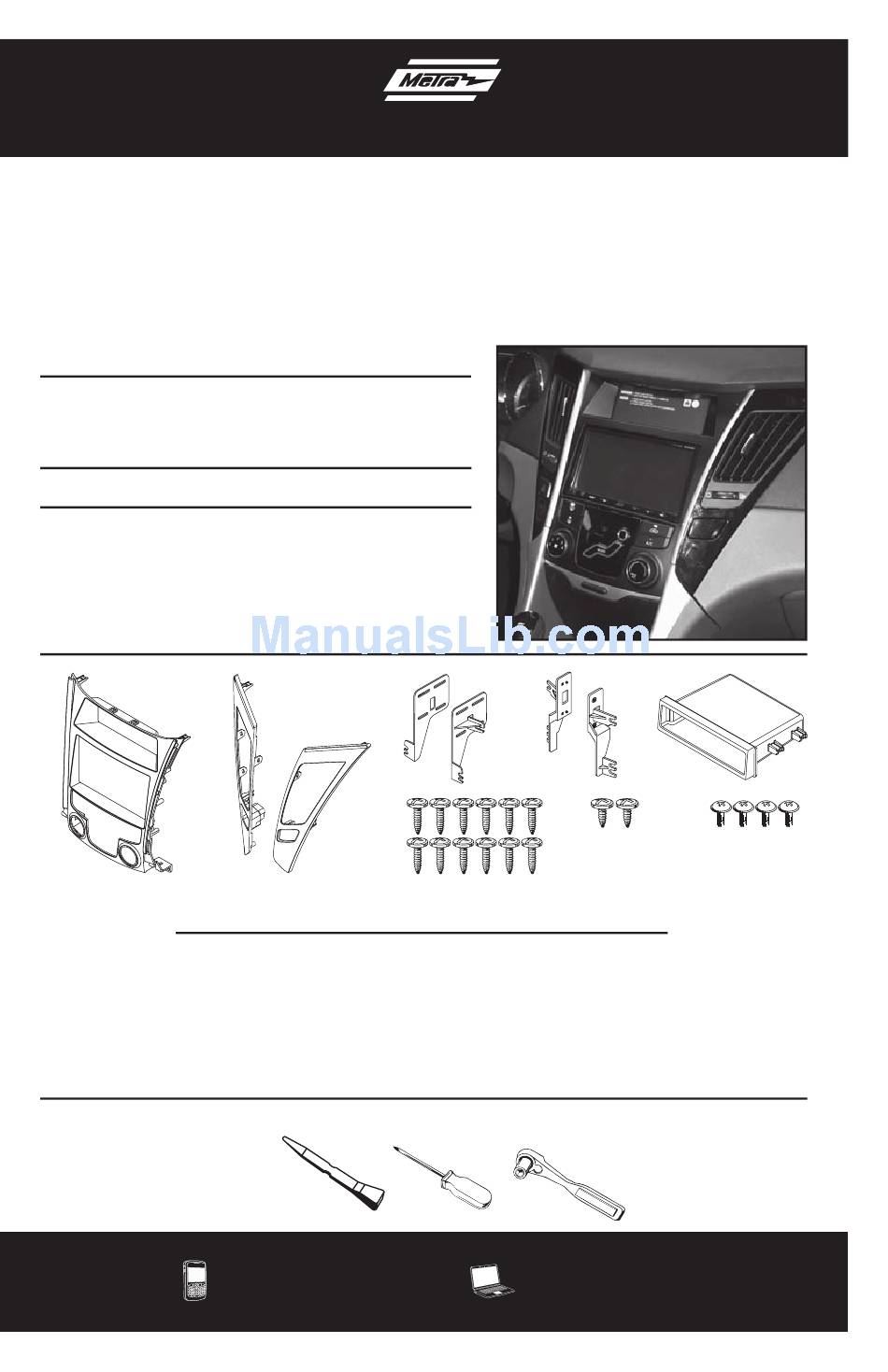

INSTALLATION INSTRUCTIONS FOR PART 99-7343
(For models equipped without Nav and with auto climate controls)
KIT FEATURES
• ISO DIN head unit provision with pocket
• DDIN head unit provisions
• Painted black and silver to match factory dash
KIT COMPONENTS
• A) Radio Housing • B) (2) A/C Vent Trim Panels
• C) DDIN Brackets • D) Display Brackets
• E) Pocket • F) (12) 1/2" Phillips screws
• G) (2) #8X1/4" Pan Head screws
• H) (4) #8X3/8" Truss Head screws
B
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wire harness:
• 70-7304 2010 Kia/Hyundai Harness
• 70-7305 2010 Kia/Hyundai Amp Bypass Harness
Antenna adapter:
• Not Required
Panel Removal Tool • Phillips Screwdriver • Socket Wrench
APPLICATIONS
2011 Hyundai Sonata
99-7343
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
D
C
F
metraonline.com
E
G
H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-7343 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-7343

Summary of Contents for Metra Electronics 99-7343

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7343 2011 Hyundai Sonata (For models equipped without Nav and with auto climate controls) KIT FEATURES • ISO DIN head unit provision with pocket • DDIN head unit provisions • Painted black and silver to match factory dash KIT COMPONENTS • A) Radio Housing • B) (2) A/C Vent Trim Panels • C) DDIN Brackets • D) Display Brackets • E) Pocket • F) (12) 1/2” Phillips screws • G) (2) #8X1/4” Pan Head screws • H) (4) #8X3/8” Truss Head screws WIRING & ANTENNA CONNECTIONS (Sold Separately) Wire harness: • 70-7304 2010 Kia/Hyundai Harness • 70-7305 2010 Kia/Hyundai Amp Bypass Harness Antenna adapter: • Not Required Panel Removal Tool • Phillips Screwdriver • Socket Wrench...

  • Page 2: Table Of Contents

    All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition. *NOTE: Refer Also to the instructions included with the aftermarket radio. 99-7343 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

  • Page 3: Dash Disassembly

    Dash Disassembly 1. Unclip and remove the 2 trim panels surrounding the shifter and pocket. (Figure A) 2. Remove (2) Phillips screws at the bottom left and right side of the radio trim panel. (Figure B) 3. Unclip and remove the radio trim panel including climate control and vents. (Figure C) 4. Remove (4) Phillips screws securing the radio. (Figure D) 5. Remove (4) Phillips screws securing the display then remove the factory brackets from the display. (Figure D) Continued on next page (Figure A) 99-7343 (Figure B) (Figure C) (Figure D)
  • Page 4 Dash Disassembly 6. Unclip and remove the Hazard switch from the radio panel. (Figure E) 7. Remove (2) Phillips screws securing the passenger air bag light assembly. (Figure E) (Figure E) 99-7343 8. Remove (4) Phillips screws securing the climate control to the radio panel. (Figure E) 9. Remove (8) Phillips screws securing the a/c vents then unclip and remove them from the factory panel. (Figure E)

  • Page 5: Kit Assembly

    1. Snap the a/c vents into the a/c vent trim panels. (Figure A) 2. Attach the left and right a/c vent trim panels and the climate controls to the main radio housing panel using the provided (10) #8X1/2” Phillips screws and (2) #8X1/4” Pan head screws. (Figure B) (Figure B) 99-7343 Kit Assembly 3. Snap the hazard switch into the main radio housing. (Figure C) Continued on next page (Figure A) NOTE: #8X1/4” Pan head screws (Figure C) must be installed in the...
  • Page 6 4. Attach the passenger air bag light to the main radio housing using (2) #8X1/2” Phillips screws. (Figure A) 5. Attach the display brackets to the display and mount it back into the dash in the factory location. (Figure B) Continued on next page 99-7343 Kit Assembly (Figure A) (Figure B)

  • Page 7: Iso Din Head Unit Provisions

    (4) supplied #8 Truss head screws. (Figure A) 3. Mount the assembly into the sub dash. 4. Reassemble dash in reverse order of disassembly. Double DIN head unit provisions 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. 2. Attach the Double DIN brackets to the aftermarket radio using the screws supplied with the radio, then mount the unit in the sub dash. (Figure B) 3. Reassemble dash in reverse order of disassembly. 99-7343 (Figure A) (Figure B)
  • Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-7343 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
  • Page 9 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7343 Hyundai Sonata 2011 (para modelos equipados sin navegación y con controles de clima automáticos) CARACTERÍSTICAS DEL KIT • Provisión de unidad central ISO DIN con bolsillo • Provisiones de unidad central DDIN • Pintada en negro y plateado para igualar el tablero de fábrica KIT COMPONENTS •...

  • Page 10: Enhance Your Installation And Fabrication Skills By

    Todos los accesorios, interruptores y, especialmente, las luces indicadoras de airbag deben estar enchufados antes de volver a conectar la batería o comenzar el ciclo de ignición. Nota: Remítase a las instrucciones incluidas con el radio de posventa. 99-7343 Indice EL CONOCIMIENTO ES PODER NOWLEDGE IS OWER Mejore sus habilidades de instalación y fabricación...
  • Page 11 Desmontaje del tablero 99-7343 Hyundai Sonata 2011 1. Desenganche y retire los 2 paneles de moldura que rodean la palanca de velocidades y el bolsillo. (Figura A) 2. Retire los (2) tornillos Phillips de la parte inferior izquierda y el lado derecho del panel de la moldura del radio.
  • Page 12 Desmontaje del tablero 99-7343 Hyundai Sonata 2011 6. Desenganche y retire el interruptor de las luces intermitentes del panel del radio. (Figura E) 7. Quite los (2) tornillos Phillips que sujetan el ensamble de la luz de la bolsa de aire del pasajero. (Figura E) (Figura E) 8.

  • Page 13: Ensamble Del Kit

    Ensamble del kit 99-7343 Ensamble del kit 1. Coloque a presión las rejillas del aire acondicionado en los panel de la moldura de la rejilla del aire acondicionado. (Figura A) 2. Desenganche las rejillas de los paneles izquierdo y derecho de la moldura de...
  • Page 14 Ensamble del kit 99-7343 Ensamble del kit 4. Una la luz de la bolsa de aire del pasajero a la carcasa del radio principal utilizando (2) tornillos Phillips #8 x 1/2”. (Figura A) 5. Una los soportes de la pantalla a la pantalla y móntela de nuevo en el...
  • Page 15 Ensamble del kit 99-7343 Provisiones de unidad central ISO DIN 1. Ubique el arnés del cableado de fábrica en el tablero. Metra recomienda usar el adaptador de acoplamiento adecuado de Metra o AXXESS. Vuelva a conectar el terminal negativo de la batería y pruebe la unidad para verificar que funcione correctamente.
  • Page 16 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7343 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
