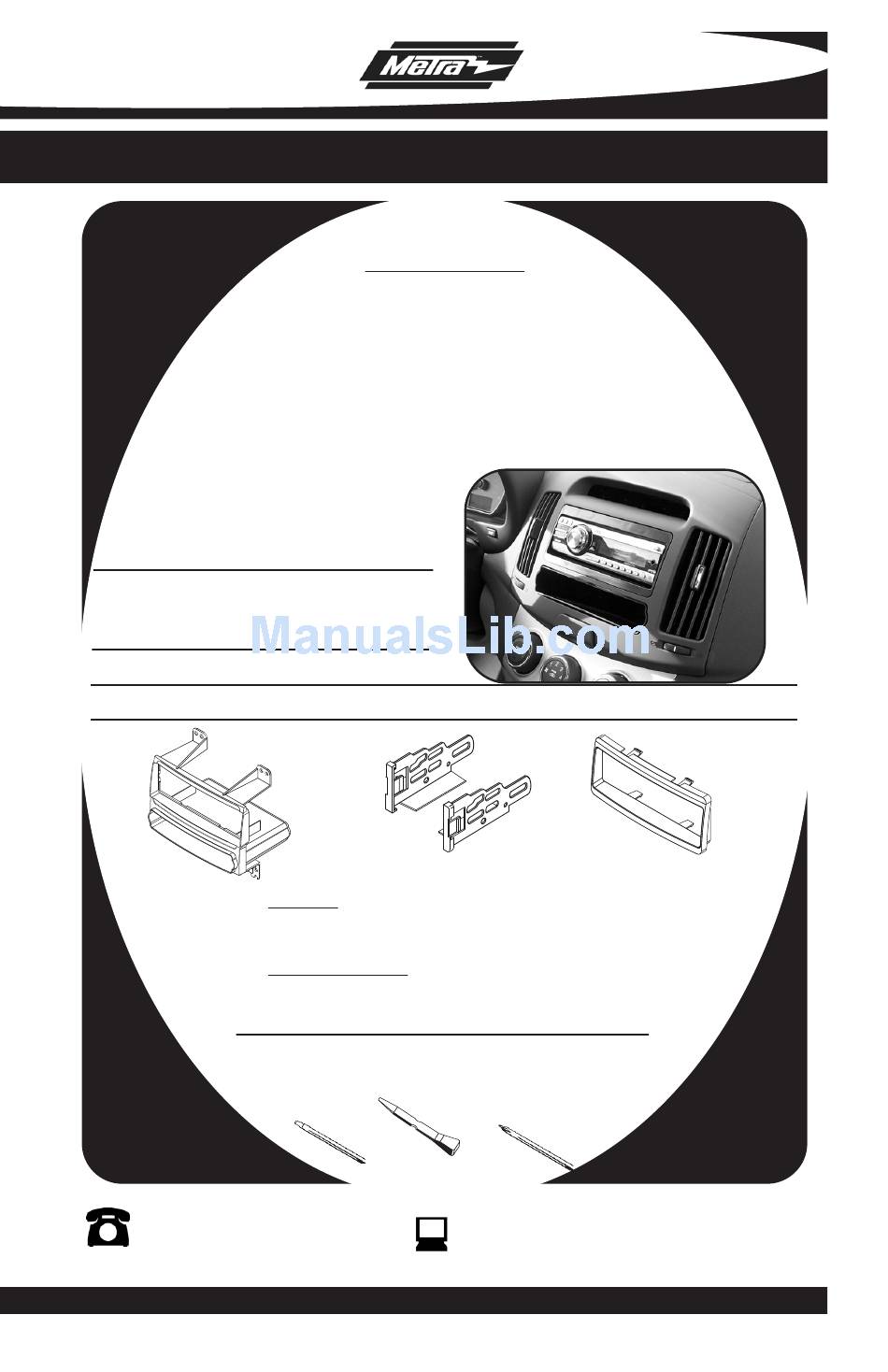

INSTALLATION INSTRUCTIONS FOR PART 99-7326
Hyundai Elantra 2007-2010
(Non Touring Model)
99-7326
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) Trim Plate
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - Hyundai 2006-up /KIA harness 2004-up
• 70-7303 - Hyundai/KIA harness 2009
Antenna Adapter:
• 40-KI11 - KIA antenna adapter 2007-up
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
(US Model Only)
(Non Radio Delete)
B
TOOLS REQUIRED:
• Phillips Screwdriver
C
www.metraonline.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7326
Summary of Contents for Metra Electronics 99-7326
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7326 Hyundai Elantra 2007-2010 (US Model Only) (Non Radio Delete) (Non Touring Model) 99-7326 KIT FEATURES • DIN Radio Provision with Pocket • ISO Radio Provision with Pocket KIT COMPONENTS A) Radio Housing B) ISO Brackets C) Trim Plate...
- Page 2 Final Assembly ......... . 4 *Note: Refer also to the instructions included with the aftermarket radio. 99-7326...
-
Page 3: Dash Disassembly
Unclip and remove the panel sur- rounding the radio including the a/c vents and hazard button. (Figure A) Remove (4) Phillips screws to remove radio. Continue to kit assembly. 99-7326 DASH DISASSEMBLY... -
Page 4: Kit Assembly
DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Note: The trim plate supplied with the 99-7326 is required for a complete installation. ISO mounting may be pre- ferrred as it is easier than DIN mount- ing and using this trim plate. -
Page 5: Iso Radio Provision With Pocket
(Figure A) Slide the radio into the radio opening until the side clips snap into place. (Figure B) Snap the trim plate onto the front of the Radio Housing. (Figure B) Continue to final assembly. 99-7326 KIT ASSEMBLY... -
Page 6: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7326 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 7 99-7326 NOTES...
