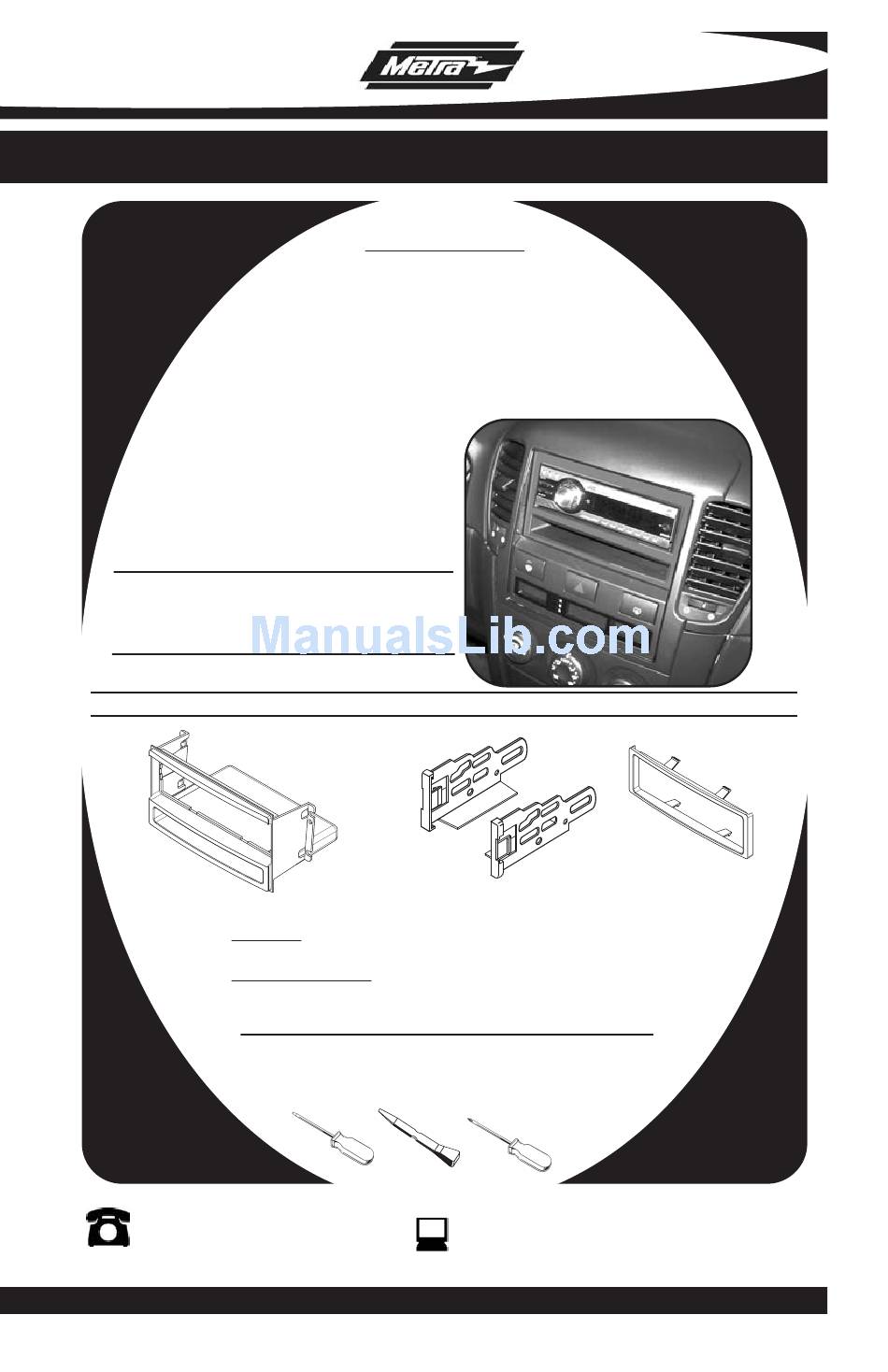

INSTALLATION INSTRUCTIONS FOR PART 99-7328
99-7328
KIT FEATURES
• Recessed DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-7302 - Hyundai harness 2007-up
Antenna Adapter:
• Not required
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
KIA Sorento
2007-2009
B
TOOLS REQUIRED:
Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
C
www.metraonline.com

Advertisement

Table of Contents
loading

  Related Manuals for Metra Electronics 99-7328

  Summary of Contents for Metra Electronics 99-7328

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7328 KIA Sorento 99-7328 KIT FEATURES • Recessed DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness: •...
  • Page 2: Kit Assembly

    Final Assembly ......... . 4 *Note: Refer also to the instructions included with the aftermarket radio. 99-7328 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
  • Page 3: Kia Sorento 2007-2009

    (Figure B) Remove (2) Phillips head screws securing the vent panels then unclip and remove the (2) vent panels. (Figure C) Remove (4) Phillips screws securing the radio. Unplug and remove radio. Continue to kit assembly. 99-7328 DASH DISASSEMBL Y...
  • Page 4: Recessed Din Mount Radio Provision With Pocket

    Slide the DIN cage into the radio hous- ing and secure by bending the metal locking tabs outward. (Figure A) Slide the radio into the DIN cage/hous- ing assembly until it snaps into place. (Figure B) Continue to final assembly. 99-7328 KIT ASSEMBL Y...
  • Page 5: Iso Mount Radio Provision With Pocket

    (Figure A) Slide the radio/bracket assembly into the radio housing until the assembly snaps into place. (Figure B) Snap the ISO Trim-plate onto the Radio and housing assembly. (Figure B) Continue to final assembly. 99-7328 KIT ASSEMBL Y...
  • Page 6: Final Assembly

    *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7328 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together...
  • Page 7 99-7328 NOTES...
  • Page 8 99-7328 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 06/23/09 © COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION INST99-7328...
