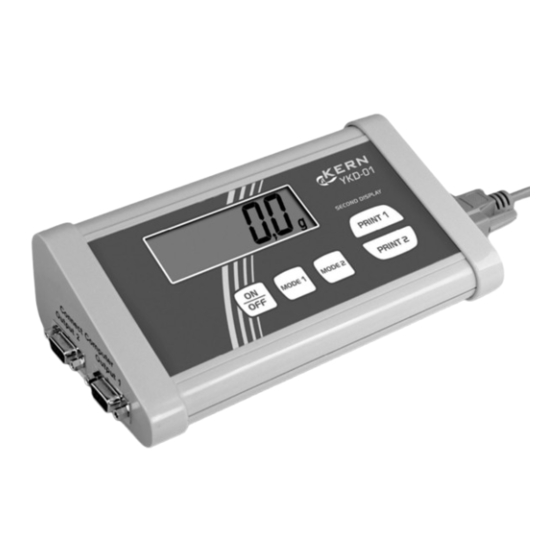

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel. 0049 –[0]7433-9933-0 D-72336 Balingen-Frommern Fax. 0049 –[0]7433-9933-149 Postfach 40 52 e-mail: info@kern-sohn.com 72332 Balingen Web: www.kern-sohn.com Operating Instructions Second display KERN YKD Version 1.0 1/2007 YKD-BA-e-0710...
-
Page 2: Table Of Contents
KERN YKD Version 1.0 1/2007 Operating Manual Second display Table of Contents Technical data __________________________________________________ 5 Basic Information (General)_______________________________________ 5 Proper use _______________________________________________________ 5 Improper Use ____________________________________________________ 5 Warranty ________________________________________________________ 5 Basic Safety Precautions _________________________________________ 6 Pay attention to the instructions in the Operation Manual________________ 6... - Page 3 Cleaning _______________________________________________________ 11 Service, maintenance _____________________________________________ 11 Disposal________________________________________________________ 11 Instant help ___________________________________________________ 12 YKD-BA-e-0710...
-
Page 4: Technical Data
The second display may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 2.3 Warranty Warranty claims shall be voided in case •... -
Page 5: Basic Safety Precautions
3.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN appliances. 3.2 Personnel training The appliance may only be operated and maintained by trained personnel. -
Page 6: Unpacking, Setup And Commissioning
• Operating Manual 5.3 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. YKD-BA-e-0710... -
Page 7: Battery Operation
Always disconnect the unit from the mains before connecting or disconnecting peripheral devices (balance, printer) or the PC. With your second display, only use accessories and peripheral devices by KERN, as they are ideally tuned to your second display. 5.6 Initial Commissioning Go to the menu of the connected balance and set the parameter PR to rECr and the baud rate at 9600 baud. -
Page 8: Configuring The Two Serial Interfaces
6.3 Configuring the two serial interfaces The 2 output ports of the unit are identical. Each port has the same functionality and may be connected to a PC or printer. (configuration of print-out is achieved via the menu of the balance) To set the parameters for the two interfaces, call the relevant menu. -
Page 9: Setting Of Data Transfer Mode
1 start bit, 8 data bits, 1 stop bit, no parity bit Baud rate selectable at 1200, 2400, 4800, 9600 and 19200 Baud Miniature plug-in necessary (9 pole D-Sub) For operation with interface faultless operation is only ensured with the correct KERN – interface cable (max. 2m) YKD-BA-e-0710... -
Page 10: Pin Allocation Of Output Jack (Front View)
8.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 8.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. - Page 11 9 Instant help In case of an error in the program process, briefly turn off the appliance and disconnect from power supply. The process must then be restarted from the beginning. Help: Fault Possible cause • The display unit is not switched on. Display is not lit up.
