Creative Table Assembly Instructions:
Step 9.
Attaching Table Top Braces
Insert the Table Top Brace Rod (Part L) into
the hole found on the top end of the table
base. Secure Brace to table using [2 ea.]
5x14mm screws (part U), Tighten.
Repeat with other side.
Step 10.
THIS STEP NEEDS 2 PEOPLE to turn
table back over onto its legs safely.
After Table Top is securely attached to Base.
Have your helper help you turn the assembled
table back up and over onto its legs.
Once table is up onto its legs. You will now
attach the pencil ledge (Part K) to the front
edge of the table top (Part G).
Center pencil ledge (Part K) on front edge of
table top and secure to table top using [2] ea.
screws (Part AA). Tighten. See FIG 10.
Step 11.
Completing Drawers for Drawer unit.
1. Unfold each Fabric Drawer (Part I).
See FIG 11
2. Insert [1] ea Drawer Bottom (Part J) into
each Fabric Drawer. See FIG 12.
3. Slide each Drawer into each of the 3
sections of the Drawer Unit.
See FIG 13
THIS NOW COMPLETES THE
ASSEMBLY of the TABLE PORTION.
CONTINUE WITH THE ASSEMBLY
OF THE STOOL.
SEE NEXT PAGE for STOOL
ASSEMBLY INSTRUCTIONS .
Martin Universal Design, Inc. • Detroit, MI 48208 USA
Tel: 1-313-895-0700 • E-mail: custservMUD@gmail.com • www.MartinUniversalDesign.com

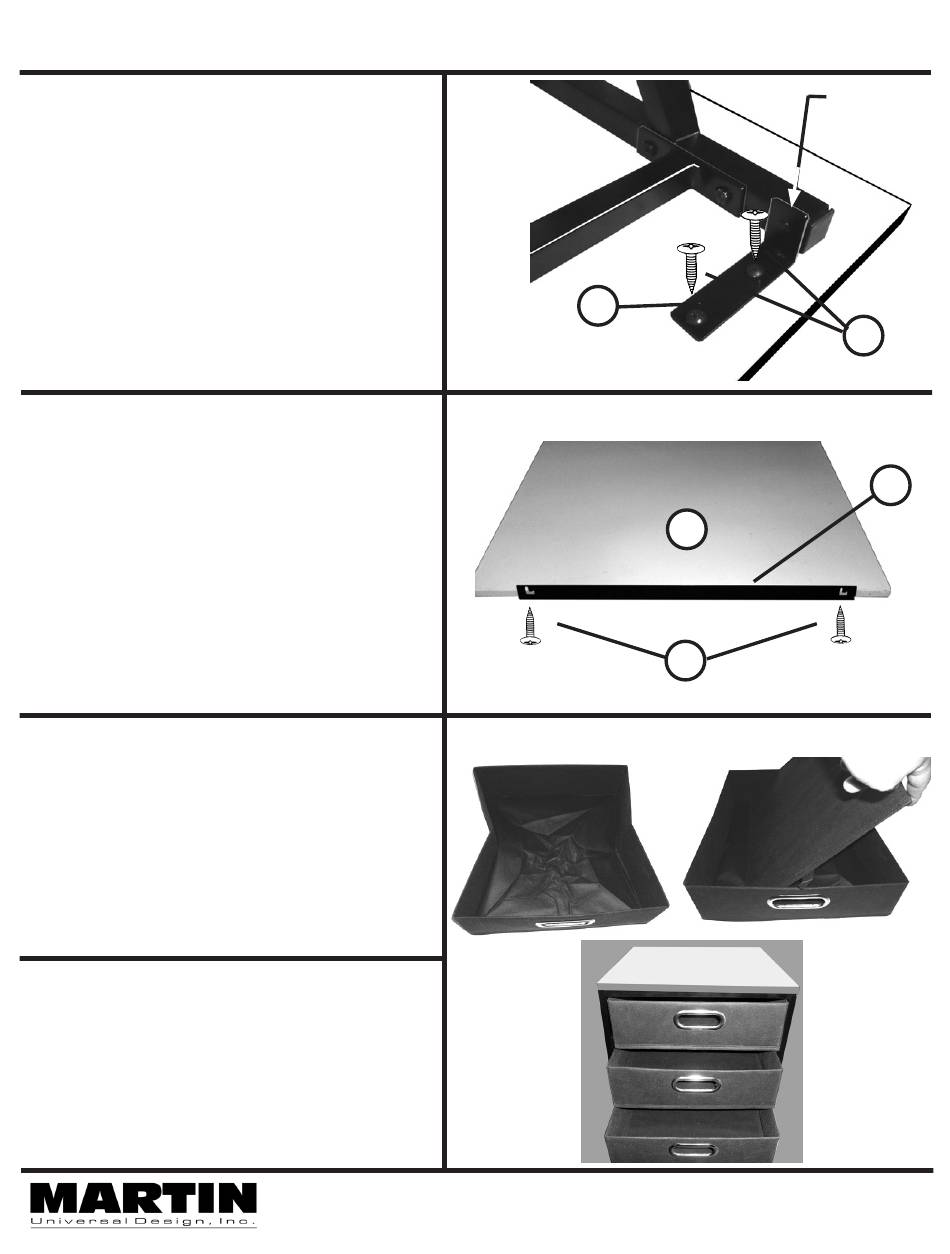

FIG 9
