Martin Universal Design Diamond Creation Craft Center U-CC91TBW Quick Start Manual

Drawing, art, hobby, craft table, with 6 drawer tower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

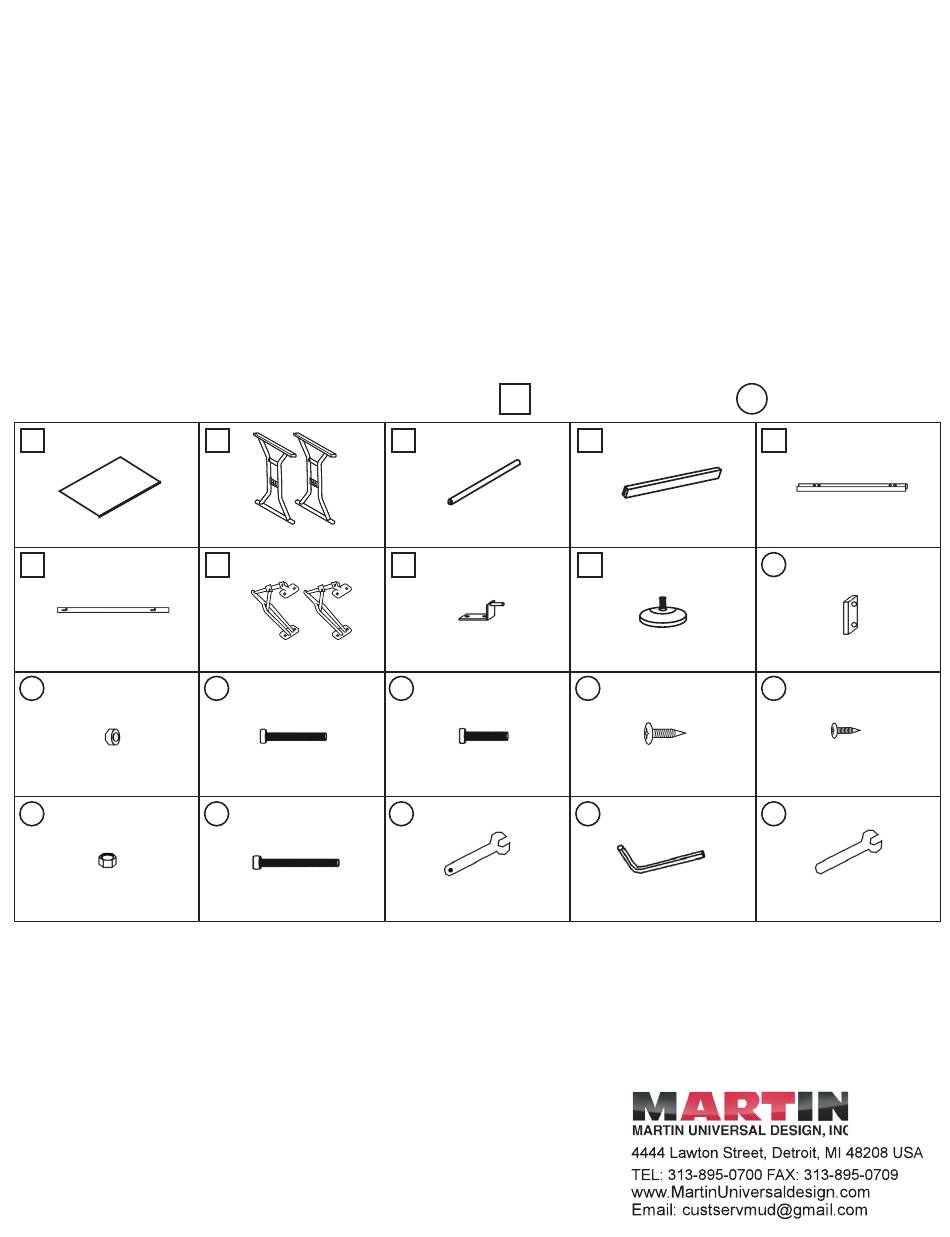

PARTS LIST

A
QTY: 1
24"x40" Top
F
QTY: 1
Pencil Ledge
K
QTY: 1
Footbar Spacers
P
QTY: 4
Nuts
If you have difficulty assembling your table, or need customer service
assistance, please call: Martin Universal Design, Inc. customer service
hotline at 1-313-895-0700, or email at custservmud@gmail.com. If
you need additional parts, it is not necessary to contact your dealer. Our
Customer Service Representative will forward them to you immediately.
Diamond Creation Craft Center
U-CC91TBW
Drawing, Art, Hobby, Craft Table, with 6 Drawer Tower
B
QTY: 2
Upper Base End
G
QTY: 2
Tilt Mechanism
L
QTY: 6
6x55mm Bolt
Q
QTY: 2
6x65mm Bolt
IMPORTANT
= Table Components
C
QTY: 1
Foot Bar
H
QTY: 4
Top L-Bracket
M
QTY: 4
6x28mm Bolt
R
QTY: 1
Wrench 12mm
Phillips Head screwdriver
NOT INCLUDED
D
QTY: 1
Cross Support
I
QTY: 4
Floor Glides
N
QTY: 8
5x14mm Screw
S
QTY: 1
Allen Wrench
= Fasteners and Tools
E
QTY: 1
Top Support
J
QTY: 2
Cross Support End Caps
O
QTY: 2
4x12mm Screw
T
QTY: 1
Wrench 10mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diamond Creation Craft Center U-CC91TBW and is the answer not in the manual?

Questions and answers

Related Manuals for Martin Universal Design Diamond Creation Craft Center U-CC91TBW

Summary of Contents for Martin Universal Design Diamond Creation Craft Center U-CC91TBW

  • Page 1 IMPORTANT If you have difficulty assembling your table, or need customer service assistance, please call: Martin Universal Design, Inc. customer service hotline at 1-313-895-0700, or email at custservmud@gmail.com. If you need additional parts, it is not necessary to contact your dealer. Our...
  • Page 2 Step 1 Fig 1 Fig 2 Fig 3 A). See Fig 1 - Attach upper base ends (Part B ) together with cross support (Part D ) using 2 ea. cross support end caps (Part J ) and 4 ea. 6x55mm bolts (Part L ). B).
  • Page 3 Step 2 A). Place table top (Part A ) with predrilled holes face up in designated area. B). Attach tilt mechanism (Part G ) to the back end of the table top using 4 ea. 5x14mm screws ( Part N ). Step 3 Front A).
  • Page 4 Step 4 Rear View Front View A). Attach tilt mechanism to the top support bar (Part E ) using 4 ea. 6x28mm bolts (Part M ) and 4 ea. nuts (Part P ) using wrench (Part T ). Step 5 Front A).
  • Page 5 TILT ADJUSTMENT: To adjust the tilt of your table top, grab the back edge of the table top and lift the top with [2] hands to the maximum tilt and then back down to your desired position. NOTE: You must lift the table top all the way up before lowering it to the desired tilt level.
  • Page 6 Mobile Drawer Taboret Instructions QTY: 1 QTY: 1 QTY: 4 QTY: 1 QTY: 6 Left Drawer Frame Right Drawer Frame Drawer Support Bar Drawer Drawer Top QTY: 4 QTY: 6 QTY: 8 QTY: 4 QTY: 1 2 Locking / 2 Non-locking 6x45mm Bolts 4x25mm Screws Castors...
