Martin Universal Design VESUVIO 91-8006 Quick Start Manual

IMPORTANT NOTICE
YOU WILL FEEL A SLIGHT
"BOUNCE-BACK" WHEN YOU SIT DOWN.
THIS IS NORMAL: NOT A DEFECT.
THE PNEUMATIC CYLINDER FOR THE
SEAT HEIGHT ADJUSTMENT REACTS TO
YOUR WEIGHT BY GIVING A LITTLE
A. [1] Base Plate
Mechanism
D. [1] Plastic Ring insert
Model 91-7706 only
(This part can be found in
the foot ring Part F)
E. [1] 5-Star Base
I. [4] M6x20 Hex Head Screws
If you have difficulty assembling your chair or need customer service assis-
tance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at
1-800-366-7337. If you need additional parts, it is not necessary to contact your
dealer, our Customer Service Rep. will forward them to you immediately.
Parts
a.
b.
B. [1] Cylinder
[a] 91-8006 model
[b] 91-8009 model
C. [5] Castors
F. [1] Foot Ring with Knob
Model 91-8006 only.
J. [6] M6x25 Hex Head Screws
IMPORTANT
VESUVIO Model's
91-8006 & 91-8009
Gray
Fabric

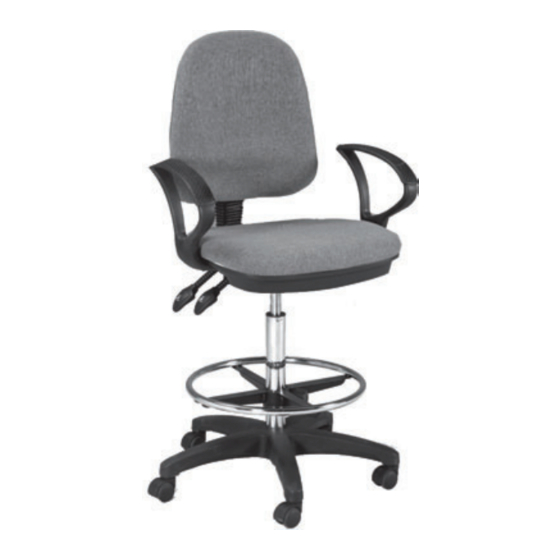

Assembled 91-8006
G. [1] Backrest
4444 Lawton Avenue, Detroit MI 48208 USA
Tel:(313)895-0700 • Fax:(313)895-0709
Visit us at: www.MartinUniversalDesign.com
Assembled 91-8009
H. [1] Seat
K. [1] Black Cylinder
Bellows
Model 91-8009 only
L.
[4] 3/4"
Plastic
Washers
for armrest
attachment
M. [2] Loop
Armrests
E-mail: Custservmud@aol.com
Black
Fabric
